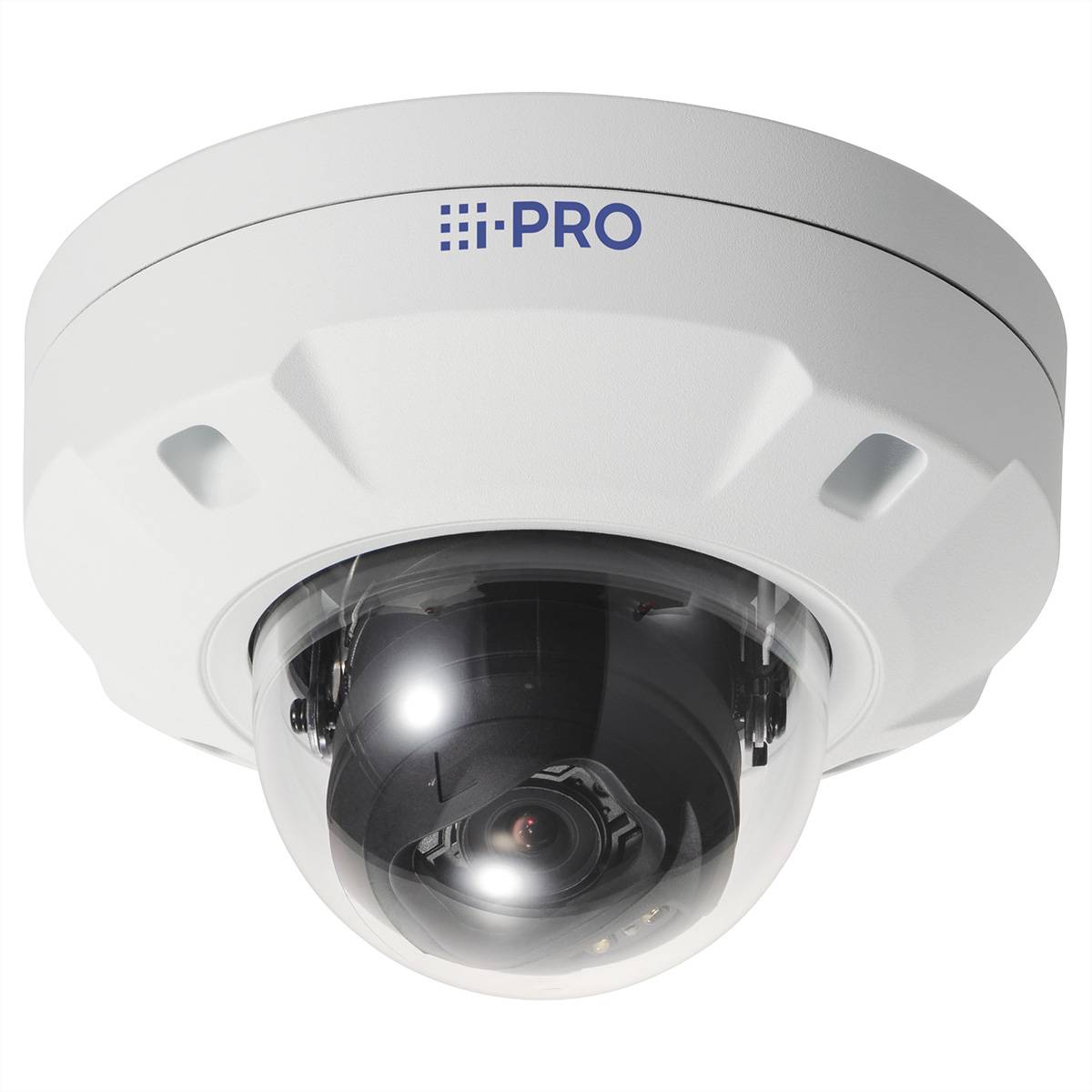

i-PRO Netzwerkkamera WV-S2536LNA
EAN:
Part number:
Item no:
Datasheet (PDF)
I-PRO WV-S2536LNA security camera Dome IP-security camera Outdoor 2048 x 1536 pixel ceiling
Highlights & Details
- Outdoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 2048 x 1536 pixels
- Wired Ethernet/LAN
- Night view 50 m IR
- Optical Zoom 9.3x
- Dome ceiling shock-resistant, vandal-proof
- IP66 IK10
- Black
- 1.1 kg
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- Tilt angle range -30 - 85°
- Supported audio formats: AAC-LC,G.711,G.726
- Transfer type
Corded
- Width
154 mm
- Height
105 mm
- Depth
154 mm
- Weight
1.1 kg
- Factory colour
White
IP66
- Display resolution
2048 x 1536 Pixel
- Playback of
AAC-LC
- Material (details)
Aluminium
Polycarbonate (PC)
Stainless steel
- Type
IP-security camera
- Rotation
360°
- 10/100/1000 Mbps ports
1 x
- Power consumption (ON)
8.8 W
- Sensor type
CMOS
- UKCA
not relevant
- Audio system full duplex
yes
- Operating temperature (T-T)
-40 - 50 °C
- Ethernet LAN
yes
- Minimum illumination
0.005 Lux
- Auto focus
yes
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of users
14 Benutzer
- Number of lenses
1
- Privacy masking
yes
- Text caption overlay
yes
- Power consumption (Power over Ethernet (PoE))
9.1 W
- Number of sensors
1
- Microphone in
yes
- Noise reduction
yes
- Closest focusing distance
0.3 m
- Web browser
yes
- Detect distance (wide)
25.4 m
- Detect distance (tele)
118.2 m
- Observe distance (wide)
10.2 m
- Observe distance (tele)
47.3 m
- Recognize distance (wide)
5.1 m
- Recognize distance (tele)
23.6 m
- Identify distance (wide)
2.5 m
- Identify distance (tele)
11.8 m
- Highlight Compensation (HLC)
yes
- Dynamic range
144 dB
- Number of effective pixels (H x V)
5,57 x 3,13 p
- Card reader integrated
yes
- Frame rate
60 fps
- Camera tilt control
yes
- Bit rate range
16 - 128 Kbit/s
- Number of Privacy masking areas
8
- Zoom capability
yes
- Minimum aperture number
1.3
- Maximum aperture number
2.5
- Night vision
yes
- Power consumption
720 mA
- Audio detection
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
10 - 100 %
- Number of languages
9
- Optical zoom
9.3 x
- Total megapixels
2 MP
- Back Light Compensation (BLC)
yes
- Alarm input/output
yes
- Fog proof
yes
Documents & Downloads
Datasheet
Datasheet 3798727 i-PRO Netzwerkkamera WV-S2536LNA
User & Safety Instructions
User & Safety Instructions 3798727 i-PRO Netzwerkkamera WV-S2536LNA
Description
2MP (1080p) Outdoor Vandalism Protected Dome Network Camera The WV-S2536LNA S Series Outdoor Dome Network Camera 2MP(1080p)@60fps, f=2.9 to 9mm,F1.3 Motorized, 3.1x, H:36 to 113deg.V:20 to 60deg., IR(70m/230ft), H.264/H.264/JPEG, Smart Coding, WDR[144dB], True D/N, pre-installed AI analysis applications, sound classification, HLC, IA, fog detection, ONVIF G,M,S,T, built-in heating, microSDXC, 12VDC/PoE, 50J, IK10, IP66/NEMA 4X, Clearsight coating, (option)Smoke Dome, i-PRO white model, -40°C to +60°C, -40°F to +140°F, GlobalSign digital certificates, FIPS 140-2 Level3, Easy Kitting
This text is machine translated.
Scope of delivery
- I-PRO WV-S2536LNA 2MP outdoor dome network camera
