i-PRO WV-U2532LA i-PRO WV-U2532LA
EAN:
Part number:
Item no:
Datasheet (PDF)

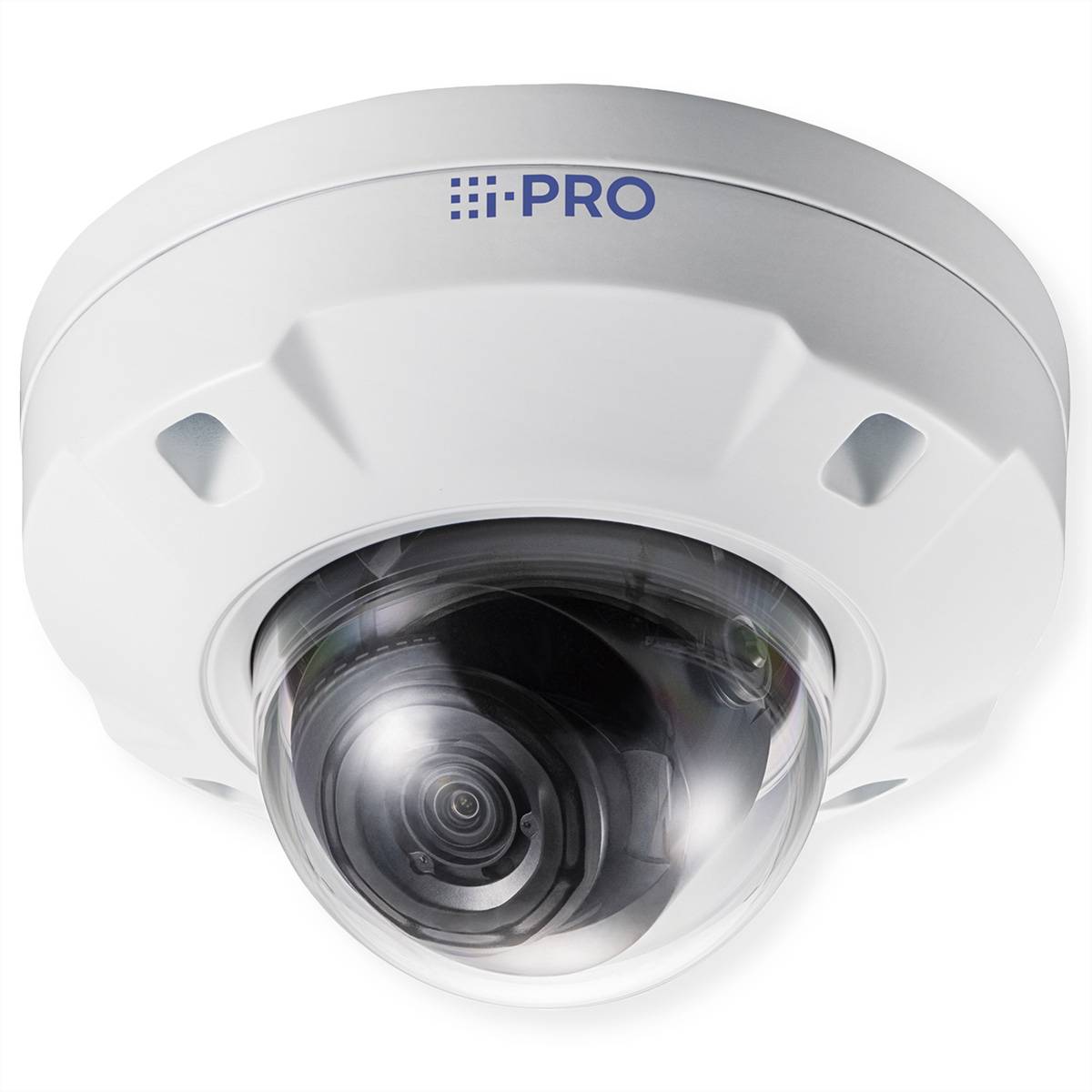

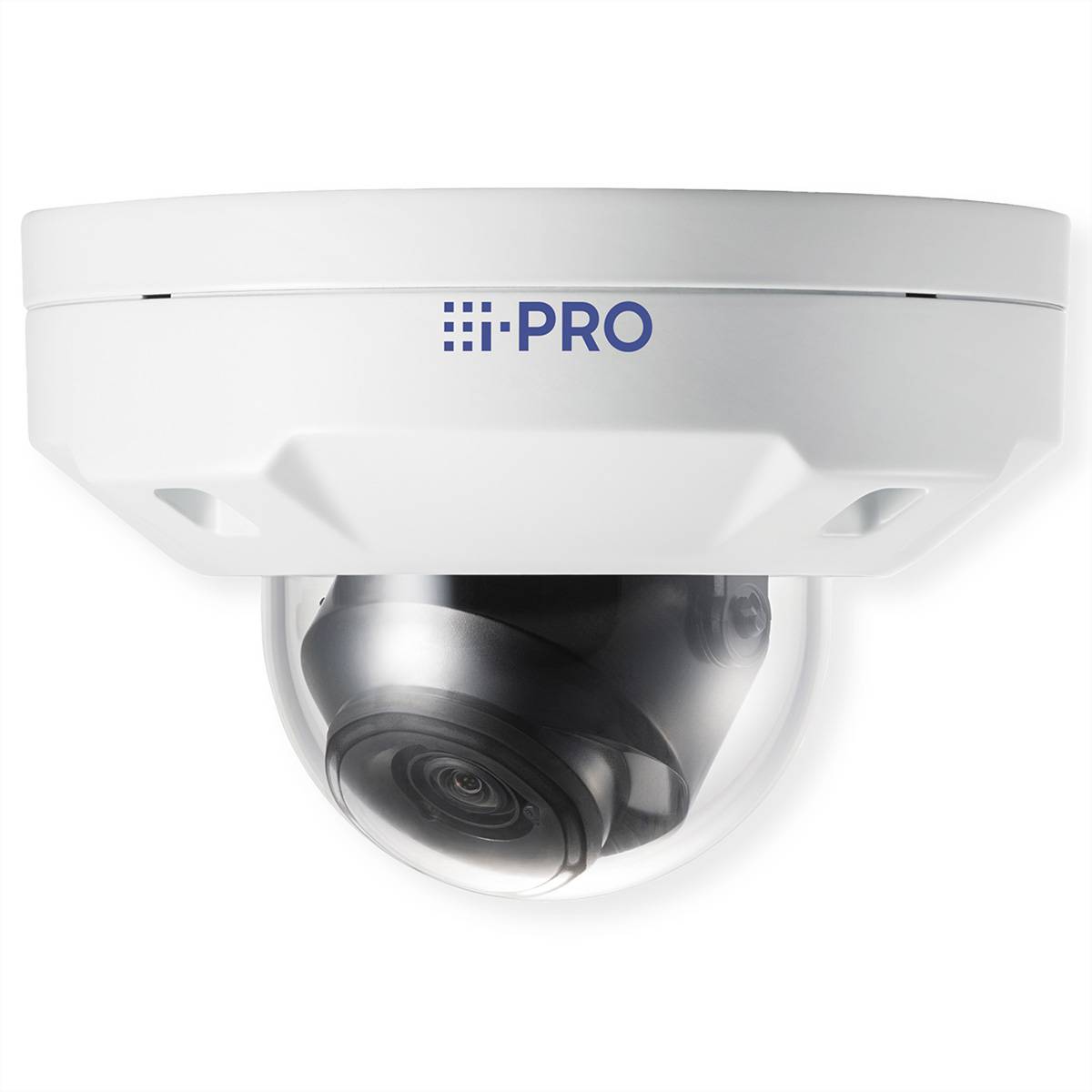

I-PRO WV-U2532LA security camera dome IP outdoor security camera 1920 x 1080 pixels ceiling
Highlights & Details
- Outdoor IP security camera
- CMOS 25.4 / 3 mm (1 / 3") 2 MP 1920 x 1080 pixels
- Wired Ethernet/LAN
- Night view 30 m IR
- Optical Zoom: 2.5x Digital Zoom: 4x
- Dome room ceiling corrosion-resistant
- IP66 IK10
- Black, White
- 1 kg
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- Transfer type
Corded
- Width
154 mm
- Height
103 mm
- Depth
154 mm
- Weight
1 kg
- Factory colour
White
IP66
- Display resolution
1920 x 1080 Pixel
- Material (details)
Aluminium
Polycarbonate (PC)
- Type
IP-security camera
- 10/100/1000 Mbps ports
1 x
- Power consumption (ON)
6.7 W
- Sensor type
CMOS
- UKCA
not relevant
- Operating temperature (T-T)
-30 - 50 °C
- Ethernet LAN
yes
- Minimum illumination
0.07 Lux
- Optical sensor size
25,4 / 3 mm (1 / 3")
- Number of users
14 Benutzer
- Detect distance (wide)
36.8 m
- Detect distance (tele)
101.5 m
- Observe distance (wide)
14.7 m
- Observe distance (tele)
40.6 m
- Recognize distance (wide)
7.4 m
- Recognize distance (tele)
20.3 m
- Identify distance (wide)
3.7 m
- Identify distance (tele)
10.1 m
- Highlight Compensation (HLC)
yes
- Dynamic range
120 dB
- Card reader integrated
yes
- Frame rate
30 fps
- Zoom capability
yes
- Digital zoom
4 x
- Minimum aperture number
2
- Maximum aperture number
3
- Night vision
yes
- Power consumption
140 mA
- Video motion detection
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
10 - 100 %
- Number of languages
9
- Optical zoom
2.5 x
- Storage temperature (T-T)
-20 - 50 °C
- Total megapixels
2 MP
- Back Light Compensation (BLC)
yes
- Day/night mode
yes
- Number of cameras
1
Documents & Downloads
Datasheet
Datasheet 3798670 i-PRO WV-U2532LA i-PRO WV-U2532LA
User & Safety Instructions
User & Safety Instructions 3798670 i-PRO WV-U2532LA i-PRO WV-U2532LA
Description
H.265 Dome Camera with IA (Intelligent Auto) and Varifocus Outdoor Lens As part of the U-series of cost-effective entry to mid-range surveillance cameras, the WV-U2532L delivers the performance, image quality and reliability that customers expect. The outdoor dome model has full HD resolution and a varifocus lens, and is suitable Ideal for use in education, logistics, hospitals, offices, shops and many other applications. . Network camera Full HD in enclosed fixed dome case for outdoor use, integrated IR LED lighting, H.265/JPEG, 1/3 CMOS sensor, Smart coding, 30 photos/s, light sensitivity 0.1 lux color/ 0.04 lux SW with F2.0, motorized Vario lens 2.9 - 7.3 mm, opening angle H: 43° - 100° V: 24° - 55°, power supply PoE (IEEE802.3af) 6.7 W
This text is machine translated.
Features
- Panasonic i-Pro WV-U2532LA - Network<>surveillance camera - dome BR device type : network surveillance camera - fixed - dome - outdoor area - dust proof / waterproof / shock resistant / corrosion resistant
- dimensions (width x depth x height) : 15.4 cm x 15.4 cm x 10.3 cm
- Weight<><><>: 1 kg BR Colour : White BR Connection system : Wired BR Camera : Colour - Day & Night
- Optical Zoom : 2.5 x
- Max Resolution : 1920 x 1080
- Frame Rate (max.) : 30 images per second
- Motion detection : Yes
- Video modes : 1080p, 1080/30p
- Optical sensor type : CMOS - 8.5 mm (1/3")
- Minimum lighting : 0.1 Lux - color - F2.0 - 50 IRE - lock 1/30 sec. / AGC on ¦ 0,006 Lux - color - F2.0 - 50 IRE - aperture 16/30 sec/AGC on ¦ 0.04 Lux - S/W - F2.0 - 50 IRE - lock 1/30 sec. / AGC on ¦ 0.0025 Lux - S/W - F2.0 - 50 IRE - Aperture 16/30 sec/AGC ON ¦ 0 Lux - B/W - Infrared LEDs a
- focal<>length control : Motor-operated Zoom BR Focal length: 2.9 mm - 7.3 mm
- Focus setting : Motorized minimum distance 1 m)
- Lens iris : F/2.0-3.0
- Interfaces : Ethernet 10Base-T/100Base-TX
- Voltage : PoE Class 0
- Features : Backlight Compensation (BLC), Digital Noise Reduction, Intelligent Auto (IA), Super Dynamic Technology, Intelligent AUTO (IAUTO), Highlight Compensation (HLC), Scene Change Detection, Video Motion Detection Technology, Privacy Zone, fog compensation, variable bitrate, constant bitrate, Multicast streaming, automatic gain control, automatic white balance, Group of Pictures (GOP), ONVIF (Profile S) support, INVIF (Profile G) support, DORI area, Auto VIQS, Unicast streaming, ONVIF (Profile T) support
- environmental conditions (in operation) : 100 °C - 50 °C; 10 - -30% (non-condensing) relative humidity
Scope of delivery
- I-PRO WV-U2532LA outdoor camera FHD
