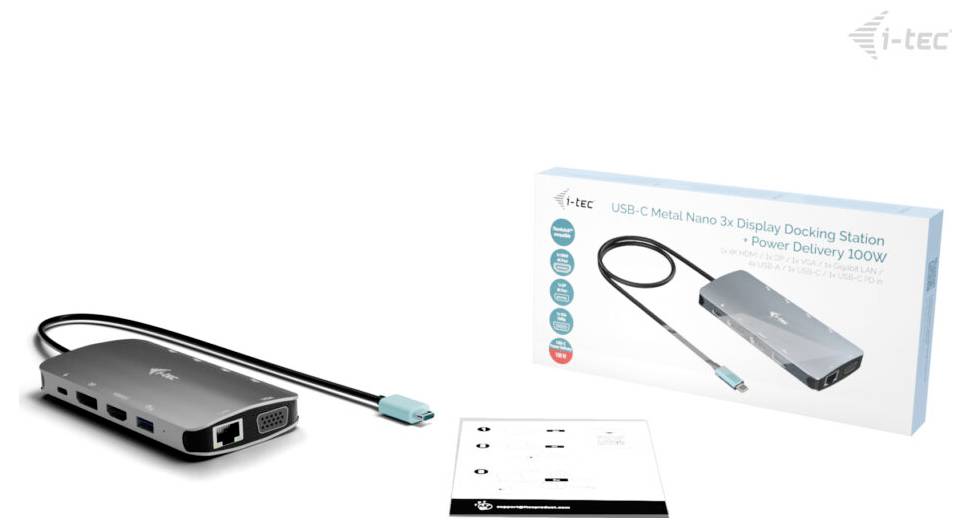

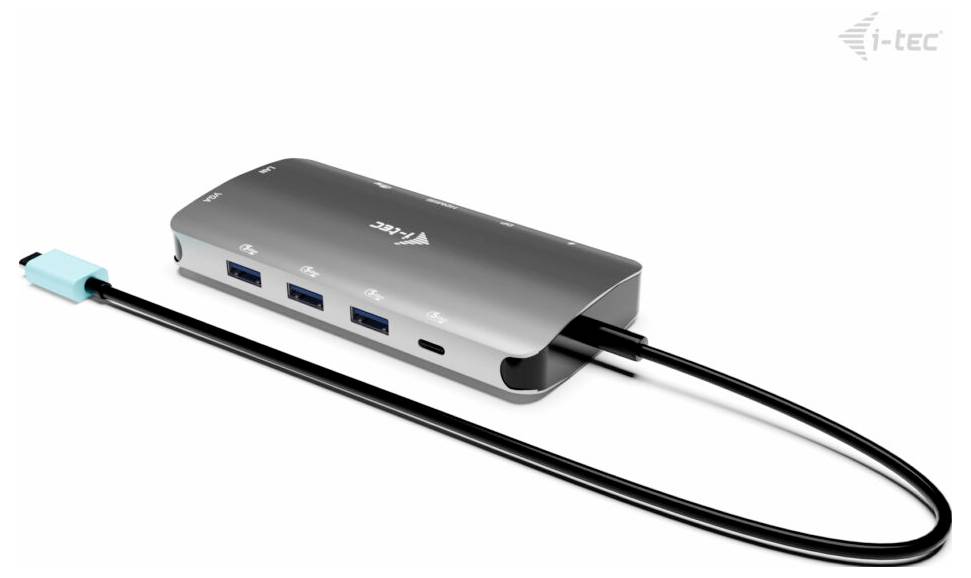

i-tec Laptop docking station I-TEC USB-C Metal Nano 3x Display DS
EAN:
Part number:
Item no:
i-tec C31NANOTRIDOCKPD Laptop docking station
Highlights & Details
- Connection A (or inputs): HDMI plug
- Connecton B (or outputs): HDMI plug
- No. of supported monitors: 3
- Maximum resolution:
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- HDMI version 2.0
- Data transfer rate 5 Gbps
- HD type 4K Ultra HD
- Other operating systems support: ChromeOS
- Ethernet 10,100,1000 Mbit/s
- Product type
Laptop docking station
- Type A
HDMI plug
- Type B
HDMI plug
- Suitable for
iOS
Android
- Supported monitors
3
- Cable length
0.3 m
- Factory colour
Silver
- Width
127 mm
- Height
18 mm
- Depth
60 mm
- Weight
112 g
- Dim
(W x H x D) 127 x 18 x 60 mm
- Frame rate
144 Hz
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of VGA ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Charging method (Power Delivery)
with USB Power Delivery
- 10/100/1000 Mbps ports
1 x
- Transfer type
Corded
- UKCA
yes
- Ethernet LAN
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- Card reader integrated
yes
- USB Power Delivery up to
100 W
- Quick start guide
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3756322 i-tec Laptop docking station I-TEC USB-C Metal Nano 3x Display DS
Description
A compact yet powerful USB-C docking station that adds a variety of ports to your notebook or tablet, including support for up to three external monitors*. Simply connect it via the integrated USB-C cable and you get immediate access to fast USB-ports, gigabit-Ethernet and a multi-monitor work environment – completely without driver installation.
The docking station has a combination of HDMI, DisplayPort and VGA, which can be used to connect both modern and older displays with ease. It supports up to 4K/60 Hz simultaneously with a single monitor or multiple displays (up to 3× 1080p). An ideal solution for office workstations, home office setups and flexible working environments.

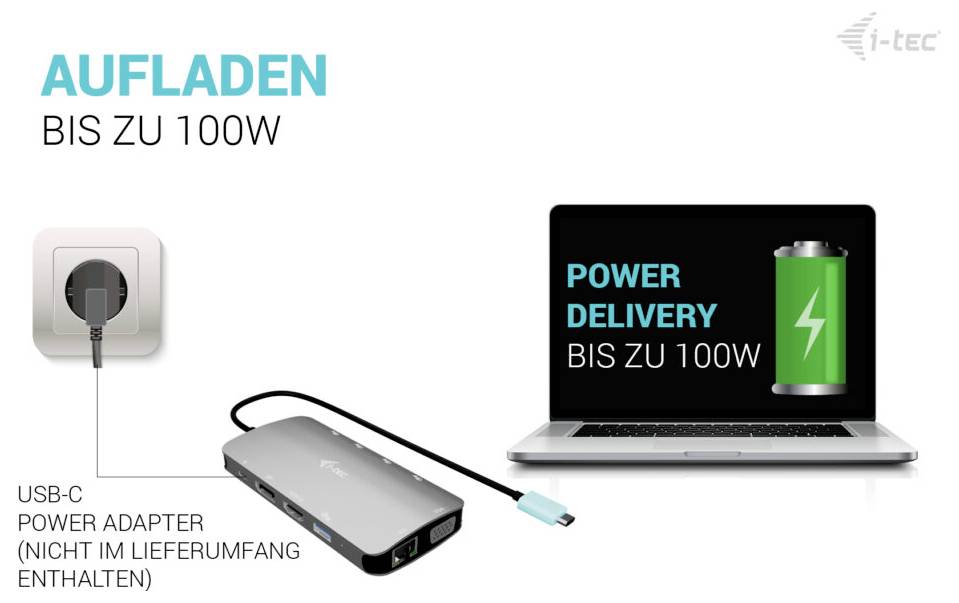

Even the power supply via USB-C with up to 100 W** is supported, so that you can supply and charge your laptop or tablet simultaneously - all via a single cable.
The robust casing provides reliability in daily use and while traveling. The integrated 30 cm long cable offers enough flexibility for a comfortable connection, even when the USB-C connection is difficult to access.
The docking station is compatible with a wide range of devices, including laptops and tablets with USB-C, USB4 or Thunderbolt interfaces.

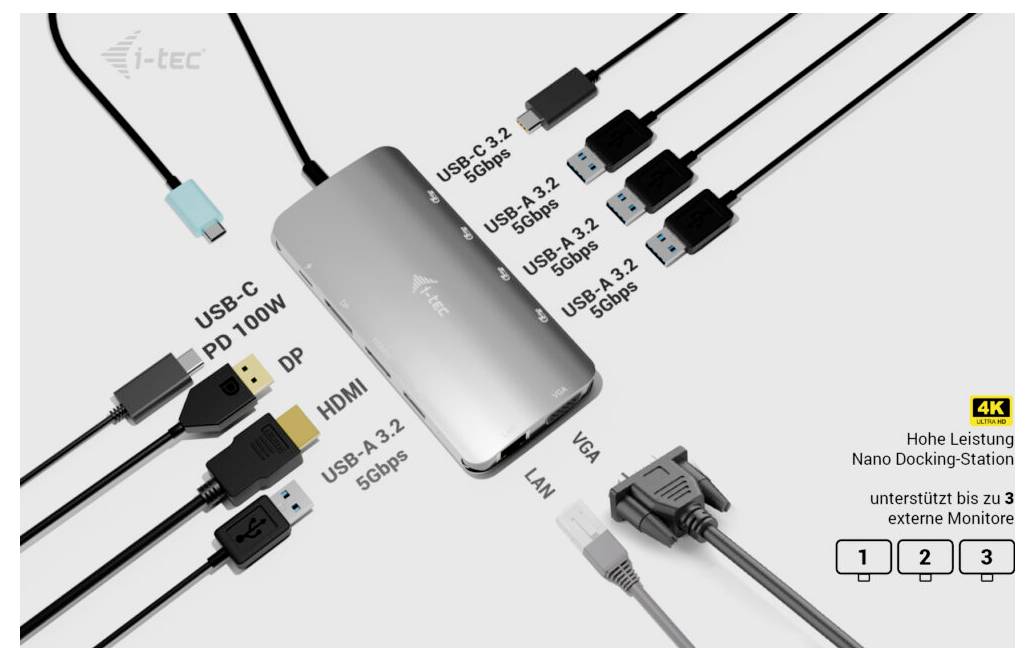

Main features:
• Connects up to three external monitors

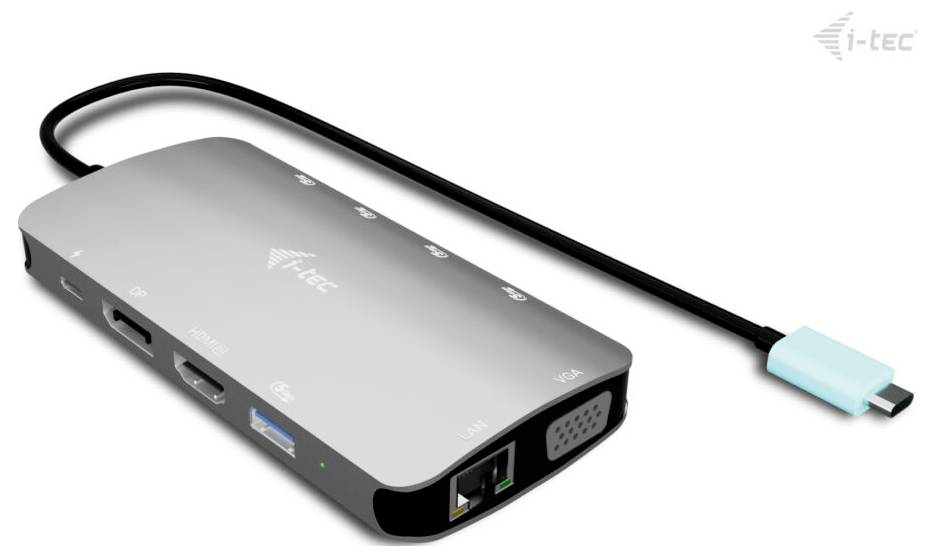

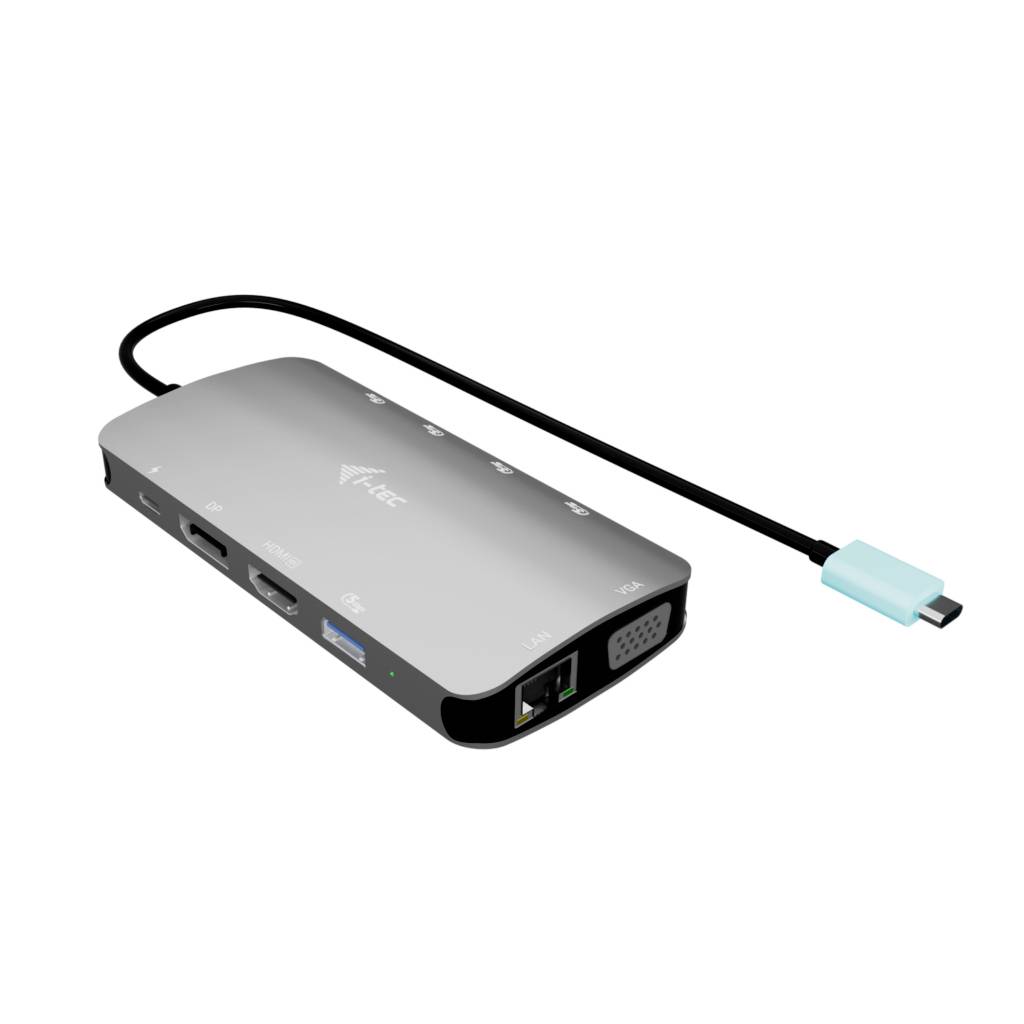

• HDMI, DisplayPort and VGA outputs for maximum compatibility
• Up to 4K/60 Hz (single monitor), up to 3× 1080p on multiple displays*
• 4× USB-A + 1× USB-C (5 Gbit/s) for peripheral devices
• Gigabit Ethernet (RJ-45) for a stable network connection
• Power delivery up to 100 W**
• Built-in USB-C cable (30 cm)
• Plug & Play – no driver installation required
• Compatible with Windows, MacOS, Linux, Android, iPadOS and ChromeOS
* MacOS does not support Multi Stream Transport (MST), so multiple connected monitors mirror the same image.
** Maximum Power delivery performance depends on the capabilities of the connected device.
This text is machine translated.
The docking station has a combination of HDMI, DisplayPort and VGA, which can be used to connect both modern and older displays with ease. It supports up to 4K/60 Hz simultaneously with a single monitor or multiple displays (up to 3× 1080p). An ideal solution for office workstations, home office setups and flexible working environments.
Even the power supply via USB-C with up to 100 W** is supported, so that you can supply and charge your laptop or tablet simultaneously - all via a single cable.
The robust casing provides reliability in daily use and while traveling. The integrated 30 cm long cable offers enough flexibility for a comfortable connection, even when the USB-C connection is difficult to access.
The docking station is compatible with a wide range of devices, including laptops and tablets with USB-C, USB4 or Thunderbolt interfaces.
Main features:
• Connects up to three external monitors
• HDMI, DisplayPort and VGA outputs for maximum compatibility
• Up to 4K/60 Hz (single monitor), up to 3× 1080p on multiple displays*
• 4× USB-A + 1× USB-C (5 Gbit/s) for peripheral devices
• Gigabit Ethernet (RJ-45) for a stable network connection
• Power delivery up to 100 W**
• Built-in USB-C cable (30 cm)
• Plug & Play – no driver installation required
• Compatible with Windows, MacOS, Linux, Android, iPadOS and ChromeOS
* MacOS does not support Multi Stream Transport (MST), so multiple connected monitors mirror the same image.
** Maximum Power delivery performance depends on the capabilities of the connected device.
This text is machine translated.

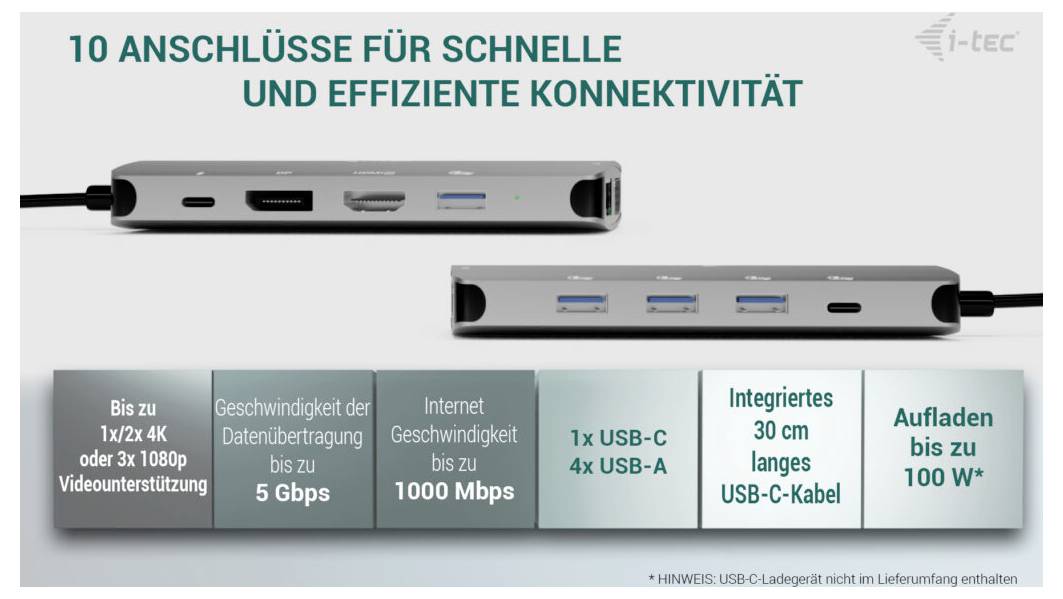

Features
- Powerful and compact USB-C docking station with integrated cable for quick and convenient connection
- Supports up to three monitors – HDMI, DisplayPort and VGA for flexible workplace extension
- Up to 4K resolution – 1× 4K/60 Hz or up to 2× 4K/30 Hz or 3× 1080p/60 Hz on multiple displays
- Extensive connectivity – 4× USB-A + 1× USB-C (5 Gbps) for connecting peripherals
- Gigabit Ethernet (RJ-45) – stable and fast network connection
- Power delivery of up to 100 W – charge your laptop via USB-C.
- Efficient operation – low internal power consumption from 10–15 W.
- LED display - clear status display
- Broad compatibility – Windows, MacOS, Linux, Android, ChromeOS, iPadO
- Light and robust design – compact size and weight of just 112 g.
