1/8
i-tec USB-C® docking station C31NANOLANPD100
EAN:
Part number:
Item no:
i-tec C31NANOLANPD100 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C® plug
- Connecton B (or outputs): USB-C® socket, HDMI socket, SD, LAN (10/100/1000 Mbps), 3.5 mm socket, microSD
- No. of supported monitors: 1
- Maximum resolution:
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 5 Gbps
- HD type 4K Ultra HD
- Output voltage 5 / 9 / 12 / 15 / 20 V
- Support for other operating systems: Android,ChromeOS
- Product type
USB-C® docking station
- Type A
USB-C® plug
- Type B
USB-C® socket
HDMI socket
SD
LAN (10/100/1000 Mbps)
3.5 mm socket
microSD
- Interfaces
USB-C
LAN
HDMI out
3.5 mm jack
SD slot
micro-SD slot
- Suitable for
Notebook
- Supported monitors
1
- Cable length
0 cm
- Factory colour
Grey
- Width
130 mm
- Height
15 mm
- Depth
43 mm
- Weight
85 g
- Dim
(W x H x D) 130 x 15 x 43 mm
- Frame rate
120 Hz
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Max. output current
5 A
- 10/100/1000 Mbps ports
1 x
- PSU power
100 W
- UKCA
yes
- AC adapter included
yes
- Ethernet LAN
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- Card reader integrated
yes
- USB Power Delivery (USB PD)
yes
- USB Power Delivery up to
100 W
- Manual
yes
- Combo headphone/mic port
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3410974 i-tec USB-C® docking station C31NANOLANPD100
Description
In addition, it possesses 3x USB 3.2 Gen1 (5 Gbps) port, 1x Ethernet GLAN RJ-45 port, 1x USB-C Power delivery port, 1x combo audio jack (headphones and microphone), 1x SD-card reader and 1x microSD card reader.
Connect the docking station with a single cable (30 cm) with the USB-C, USB 4 or Thunderbolt 3/4 port of your computer and you can use it. The driver installation takes place automatically via the system.
This docking station is suitable for all laptops and other devices, which are equipped with a USB-C port with support for video transmission (USB-C DisplayPort Alt-Mode). If your new i-tec product is not compatible, it may not work properly.

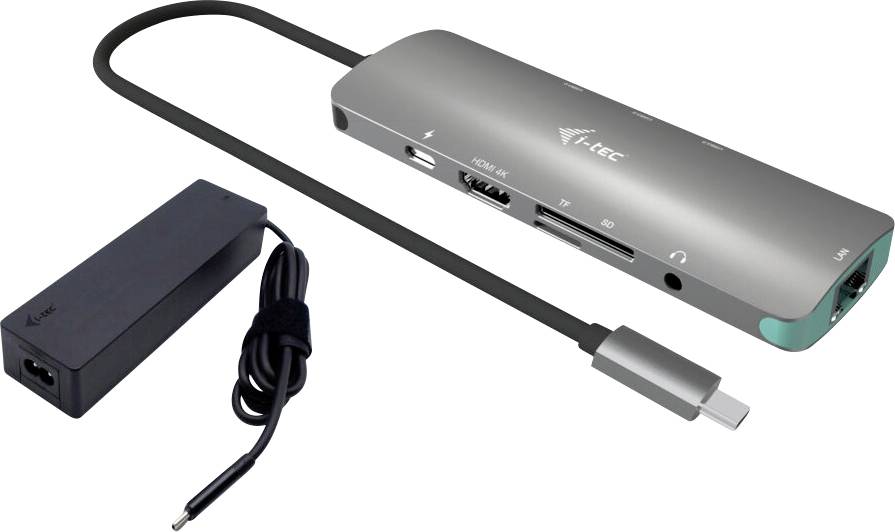

The docking station also comes with a total 100 W USB-C power supply (100 W USB-C port).
- Connect an external monitor up to 4K/60 Hz
- Power supply: Up to 100 W (100 W power supply included)
- 3x USB 3.2 Gen1 (5 Gbps), 1x SD and 1x microSD enable easy connection of your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust high-speed Internet connections with support for speeds of 10/100/1000 Mbps
- Combination socket for audio and microphone
- Universal USB-C charger 100 W.
- Supports Windows 10/11, MacOS, Android, ChromeOS, iPad OS and Linux
This text is machine translated.
Connect the docking station with a single cable (30 cm) with the USB-C, USB 4 or Thunderbolt 3/4 port of your computer and you can use it. The driver installation takes place automatically via the system.
This docking station is suitable for all laptops and other devices, which are equipped with a USB-C port with support for video transmission (USB-C DisplayPort Alt-Mode). If your new i-tec product is not compatible, it may not work properly.
The docking station also comes with a total 100 W USB-C power supply (100 W USB-C port).
- Connect an external monitor up to 4K/60 Hz
- Power supply: Up to 100 W (100 W power supply included)
- 3x USB 3.2 Gen1 (5 Gbps), 1x SD and 1x microSD enable easy connection of your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust high-speed Internet connections with support for speeds of 10/100/1000 Mbps
- Combination socket for audio and microphone
- Universal USB-C charger 100 W.
- Supports Windows 10/11, MacOS, Android, ChromeOS, iPad OS and Linux
This text is machine translated.
Features
- Extend your desktop with an external HDMI-monitor or connect a projector or television with HDMI. The design of brushed aluminum sees to it that the docking station is robust enough, to withstand frequent travels,The docking station supports Ultra HD 4K video transmission with up to 4K/60 Hz resolution including audio,3x USB 3.2 Gen1 (5 Gbps) allows easy connection of your USB devices and peripherals,GLAN Ethernet supports network speeds of 10/100/1000 Mbps and offers a robust high-speed Internet connection,The combined 3.5 mm audio/microphone connection can connect for example integrated headphones with microphone,The docking station supports up to 100 Watts of power for a connected laptop or tablet,Note: A 100 W power supply is included. The docking station can also be used with the USB-C power supply that came with the laptop, making it available as a stand-alone product (P/N C31NANODOCKLANPD)
