i-tec USB-C® docking station C31NANOTRIPLEDOCKPD USB-C® powered
EAN:
Part number:
Item no:
i-tec C31NANOTRIPLEDOCKPD USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): HDMI®, USB-C® 10 Gbps, USB-C® USB 3.2 (2nd Gen), USB 3.2 2nd Gen port A (USB 3.1), USB 2.0, USB-C® socket (Power Delivery), SD Card slot, microSD, Headphones/mic combo (3.5 mm jack), RJ45
- No. of supported monitors: 3
- Maximum resolution:
- Key features: USB-C® powered
Technical specifications
- USB PD: PD 140W
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
HDMI®
USB-C® 10 Gbps
USB-C® USB 3.2 (2nd Gen)
USB 3.2 2nd Gen port A (USB 3.1)
USB 2.0
USB-C® socket (Power Delivery)
SD Card slot
microSD
Headphones/mic combo (3.5 mm jack)
RJ45
- Interfaces
2x HDMI
4x USB-C®
1x USB 3.2 2nd Gen (USB 3.1)
2x USB 2.0
1x USB-C® (Power Delivery)
1x 2.5 mm headphone jack
1x RJ45 (LAN)
- Suitable for
PC
Notebook
Tablet
Smartphone
- Supported monitors
3
- Cable length
0 cm
- Factory colour
Grey
- Features
USB-C® powered
- Width
155.2 mm
- Height
18 mm
- Depth
60.3 mm
- Weight
142 g
- Dim
(W x H x D) 155.2 x 18 x 60.3 mm
- No. of HDMI ports
2 x
- No. of USB A 2.0 ports
2 x
- No of. USB type A 3.1 /3.2 2nd gen
1 x
- No. of USB 3.2 2nd Gen (USB 3.1)
4 x
- 10/100/1000 Mbps ports
1 x
- Transfer type
Corded
- UKCA
yes
- Ethernet LAN
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- Card reader integrated
yes
- USB Power Delivery (USB PD)
yes
- USB Power Delivery up to
140 W

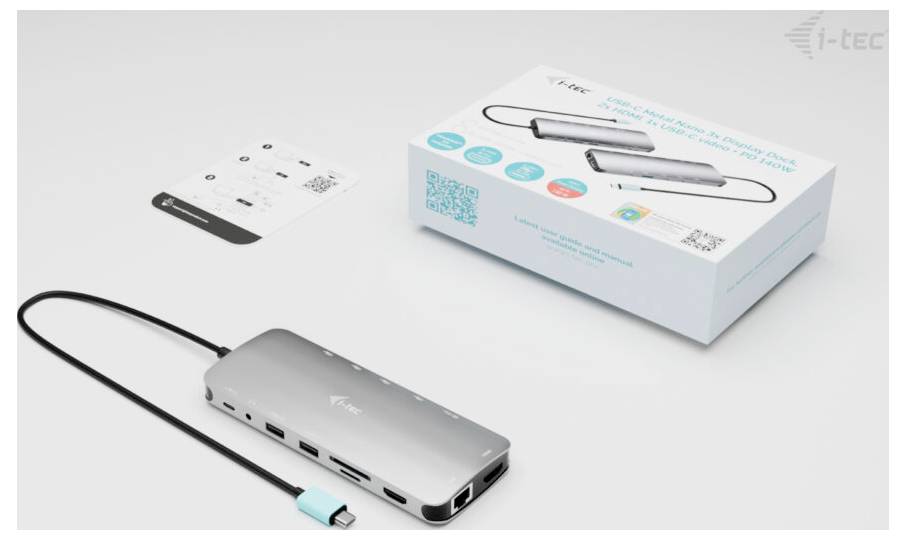

- Quick start guide
yes
- Maximum digital resolution
3840 x 2160 p
- Combo headphone/mic port
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3395793 i-tec USB-C® docking station C31NANOTRIPLEDOCKPD USB-C® powered
Description

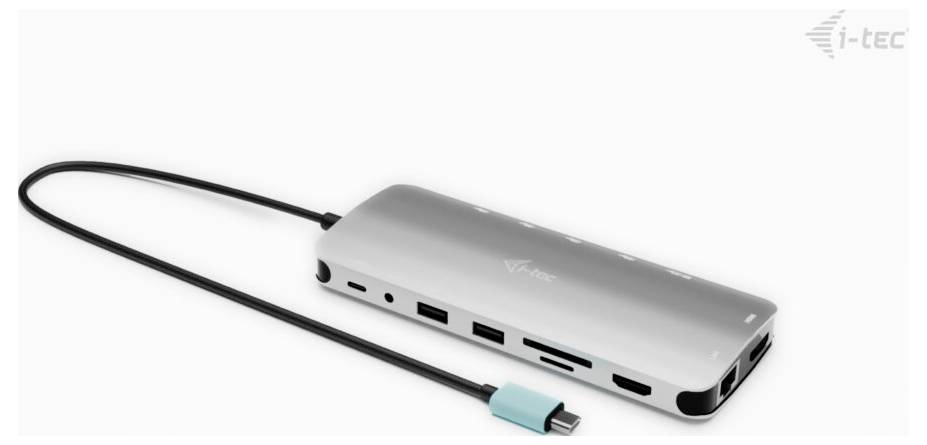

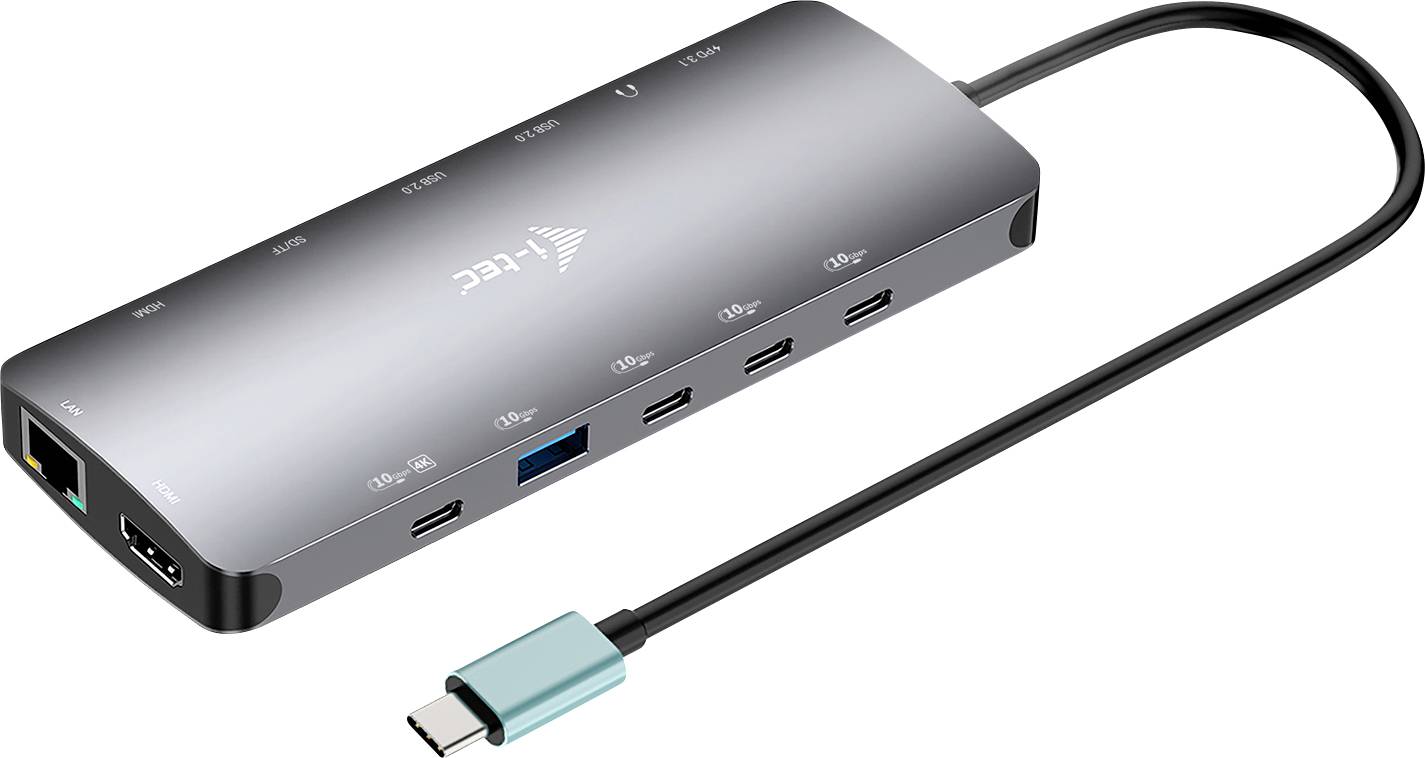

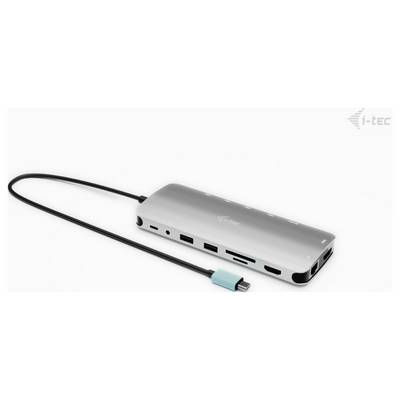

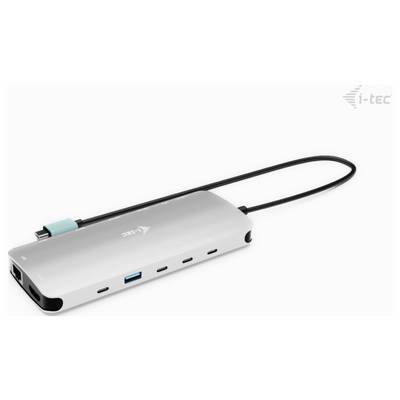

Small but very powerful metal USB-C docking station that supports up to three external monitors simultaneously*. Simply connect your laptop or tablet (no drivers need to be installed) and benefit from the advantages of a fast USB data transfer, an Internet connection via a LAN connection and the possibility to connect your headset. And of course, the docking station can power your laptop up to 140 W**, so you can charge all laptops and tablets that support charging via USB-C (USB-C Power Delivery).

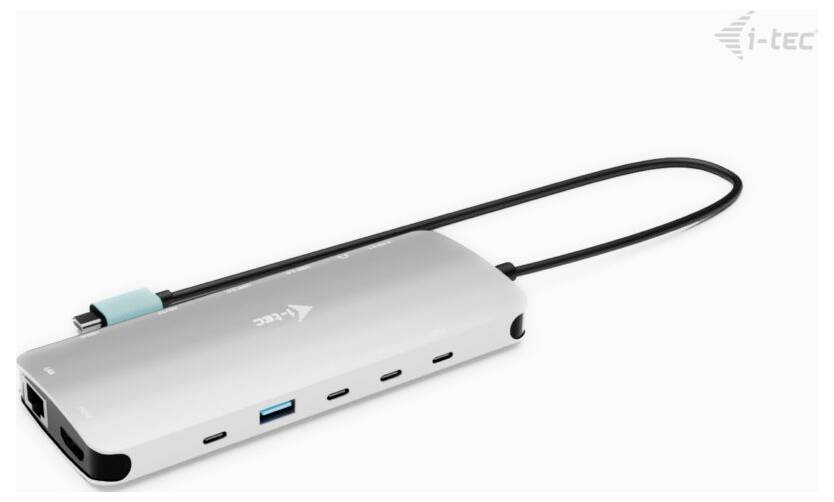

The brushed aluminum housing gives the docking station sufficient durability and resistance even when traveling frequently. The built-in USB-C cable is long enough to provide a convenient connection even when the USB-C connector is located in the top of the screen frame (typical for hybrid laptops/tablets).
The docking station is also fully compatible with tablets and laptops with a modern Thunderbolt port.
- Connect up to three external monitors
- Power supply: Up to 140 W **
- Equipped with two HDMI and one USB-C video port

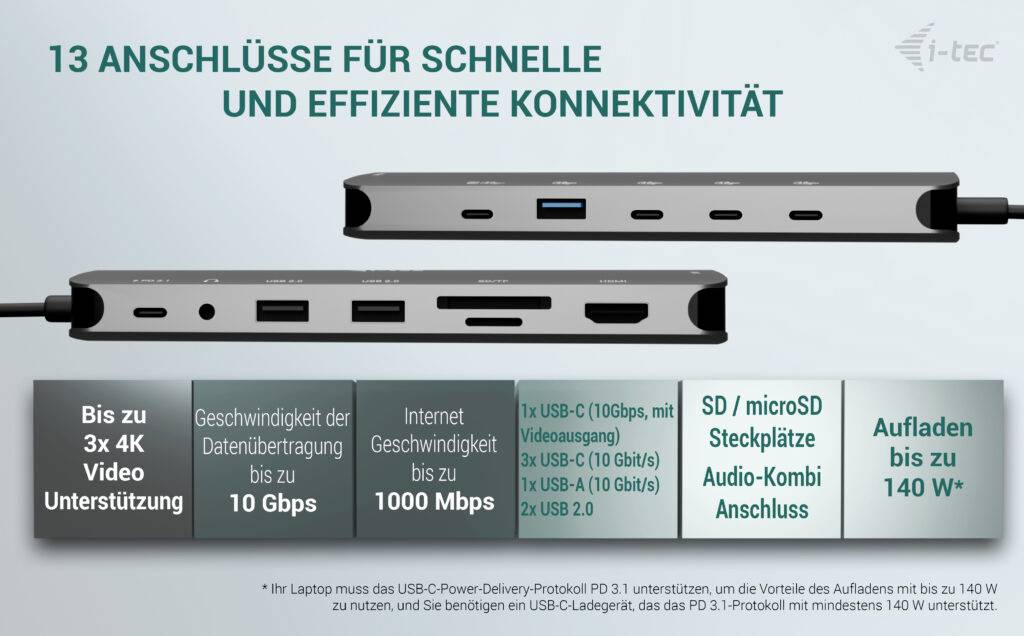

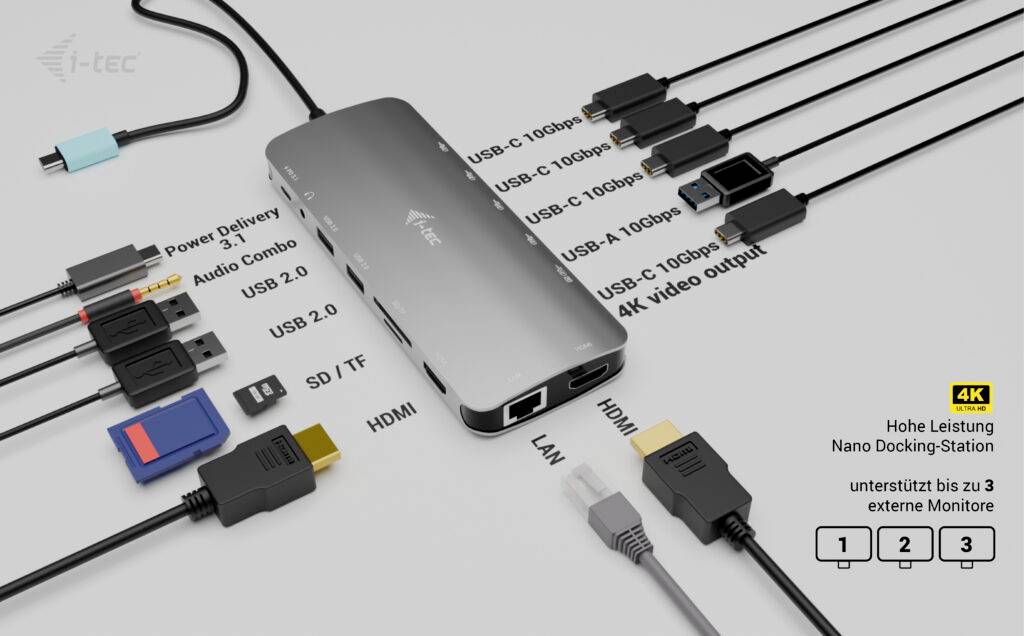

- 1x USB-C with 4K/60 video and data (10 Gbps) 3x USB-C (10 Gbps), 1x USB-A (10 Gbps) and 2x USB-A 2.0 ports enable easy connection of monitor, USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides a reliable, robust and fast Internet connection at speeds of 10/100/1000 Mbps
- Combined socket for audio and microphone on the front panel
- Supports Windows 10/11, MacOS, Android, Chrome OS and Linux
* MacOS does not support Multi Stream Transport (MST) technology, i.e. when connected to a device with MacOS, all connected external monitors display the same picture.
** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station offers up to 140 W charging power (with PD 3.0 protocol, the charging power is up to 100 W).
This text is machine translated.
The brushed aluminum housing gives the docking station sufficient durability and resistance even when traveling frequently. The built-in USB-C cable is long enough to provide a convenient connection even when the USB-C connector is located in the top of the screen frame (typical for hybrid laptops/tablets).
The docking station is also fully compatible with tablets and laptops with a modern Thunderbolt port.
- Connect up to three external monitors
- Power supply: Up to 140 W **
- Equipped with two HDMI and one USB-C video port
- 1x USB-C with 4K/60 video and data (10 Gbps) 3x USB-C (10 Gbps), 1x USB-A (10 Gbps) and 2x USB-A 2.0 ports enable easy connection of monitor, USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides a reliable, robust and fast Internet connection at speeds of 10/100/1000 Mbps
- Combined socket for audio and microphone on the front panel
- Supports Windows 10/11, MacOS, Android, Chrome OS and Linux
* MacOS does not support Multi Stream Transport (MST) technology, i.e. when connected to a device with MacOS, all connected external monitors display the same picture.
** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station offers up to 140 W charging power (with PD 3.0 protocol, the charging power is up to 100 W).
This text is machine translated.
Features

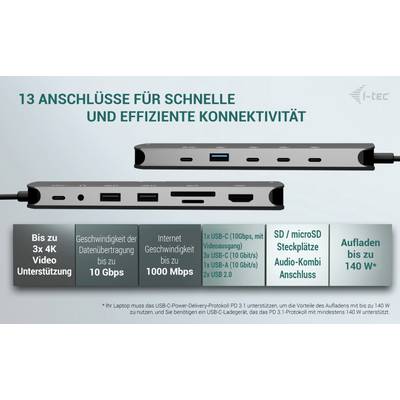

- Small but powerful metal USB-C docking station that can connect up to three external monitors.Brushed aluminum design makes sure the docking station is robust enough to withstand frequent trips.Two HDMI ports and a USB-C video/data port are available to connect to your screens,4x USB-C, 1x USB-A 3.2 and 2x USB-A 2.0 ports enable easy connection of your USB devices and peripherals, GLAN-Ethernet supports network speeds of 10/100/1000 Mbps and offers a robust and fast Internet connection, the combined 3.5 mm audio/microphone connection can connect e.g. integrated headphones with a microphone, the docking station supports a power of up to 140 W for a connected laptop or a tablet,note: the power supply is not included in the delivery. The docking station can be used with the power adapter that came with your laptop. You can also include a product set
