i-tec USB-C® docking station CA5MONITORDOCKPD Compatible with (brand): Universal, Apple
EAN:
Part number:
Item no:

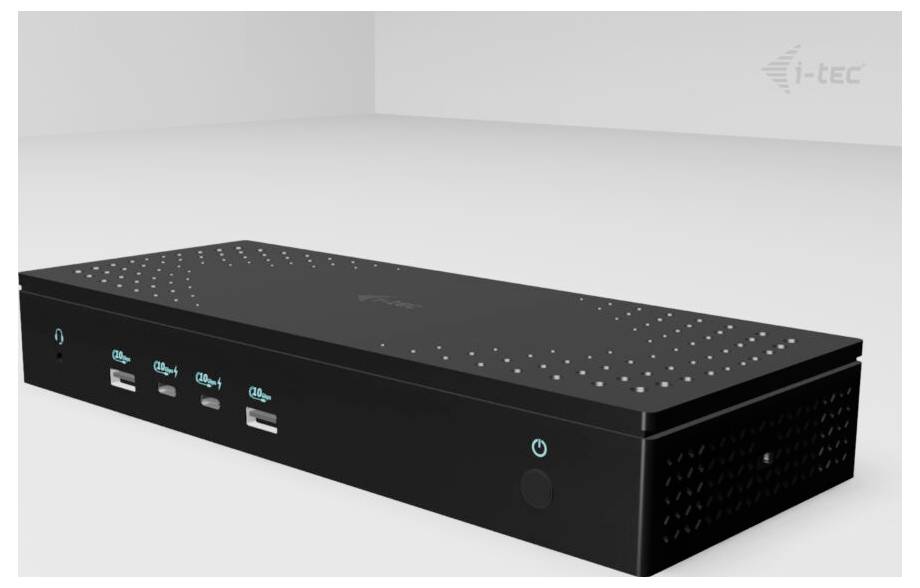

i-tec CA5MONITORDOCKPD USB-C® docking station
Highlights & Details
- Connection A (or inputs): HDMI plug
- Connecton B (or outputs): HDMI plug
- No. of supported monitors: 5
- Maximum resolution:
- Key features:
Technical specifications
- Data transfer rate 10 Gbps
- HD type 8K Ultra HD
- Support for other operating systems: Android,ChromeOS
- Product type
USB-C® docking station
- Type A
HDMI plug
- Type B
HDMI plug
- Supported monitors
5
- Cable length
1 m
- Factory colour
Black
- Width
245 mm
- Height
37 mm
- Depth
98 mm
- Weight
495 g
- Dim
(W x H x D) 245 x 37 x 98 mm
- Compatible with (brand)
Universal
Apple
- Control LEDs
Yes
- Frame rate
60 Hz
- Design height
37 mm
- No. of 10 Gb LAN ports
1 x
- No. of DisplayPort
2 x
- No. of HDMI ports
3 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- Supported OS
Android
- Interfaces
USB C®
Gigabit LAN (1 Gbps)
HDMI™
DisplayPort
- Power supply (LOV)
mains-powered
- Max. output current
6.5 A
- Output voltage
20 V
- No. of HDMI connections
3
- 10/100/1000 Mbps ports
1 x
- PSU power
130 W
- Transfer rate
10 GBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3348185 i-tec USB-C® docking station CA5MONITORDOCKPD Compatible with (brand): Universal, Apple
Description
The most powerful docking station available! Supports up to five external monitors* with 4K/60 Hz resolution. And a monitor can also be operated at 8K/60 Hz! The ideal dock product for users who need multiple monitors without compromising image stability, resolution and refresh rate. The docking station also features two USB-C quick-charge ports (with up to 15 W charging power), especially for charging smartphones and tablets, as well as fast USB ports, a 2.5 Gbps LAN port and other peripherals.
The docking station can be connected to virtually any laptop, regardless of brand, model or operating system type. Any USB connection* is sufficient.

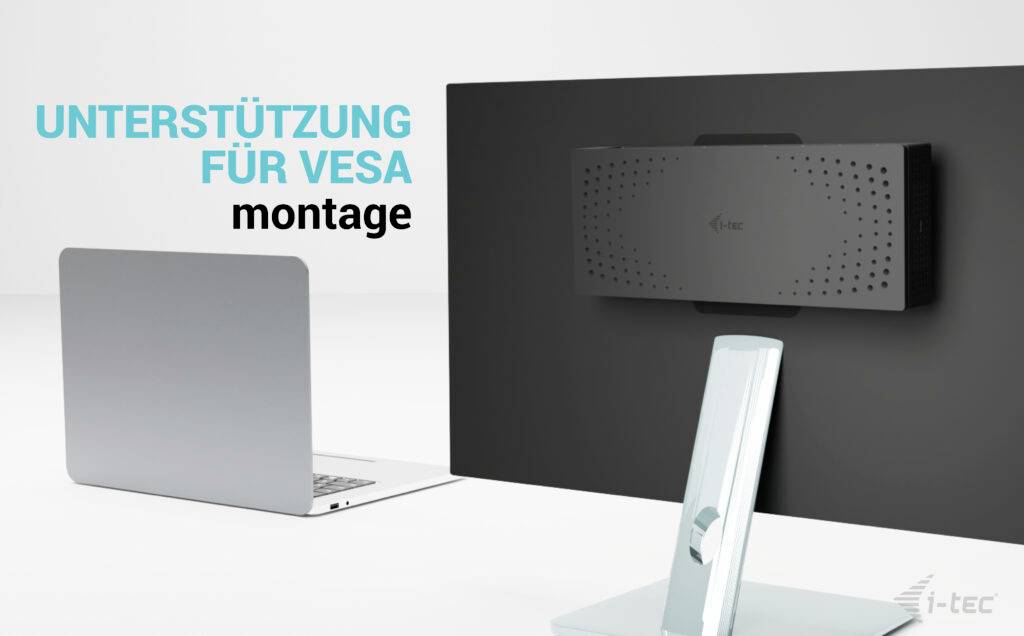

The docking station can be installed with the i-tec VESA bracket behind the monitor (if this supports a standard VESA bracket).
- Support for up to 5 external monitors* with a resolution of 1x 8k/60Hz or 5x 4K/60Hz

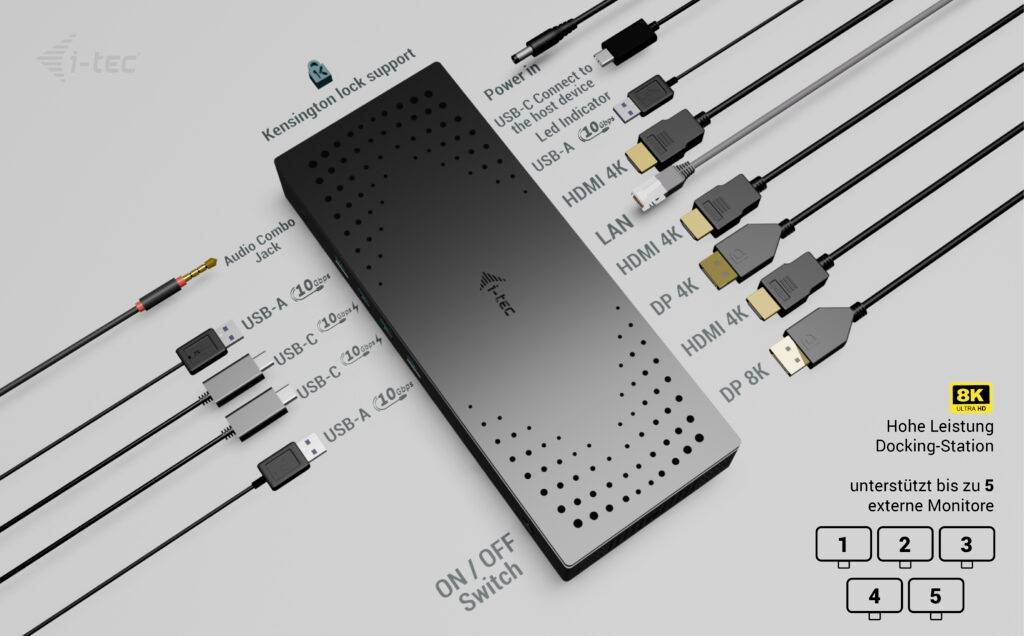

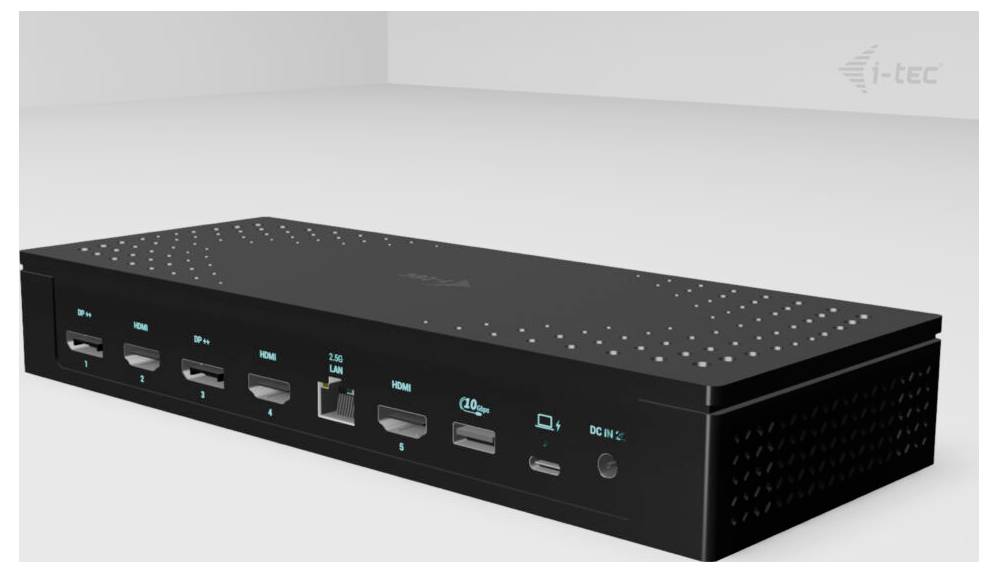

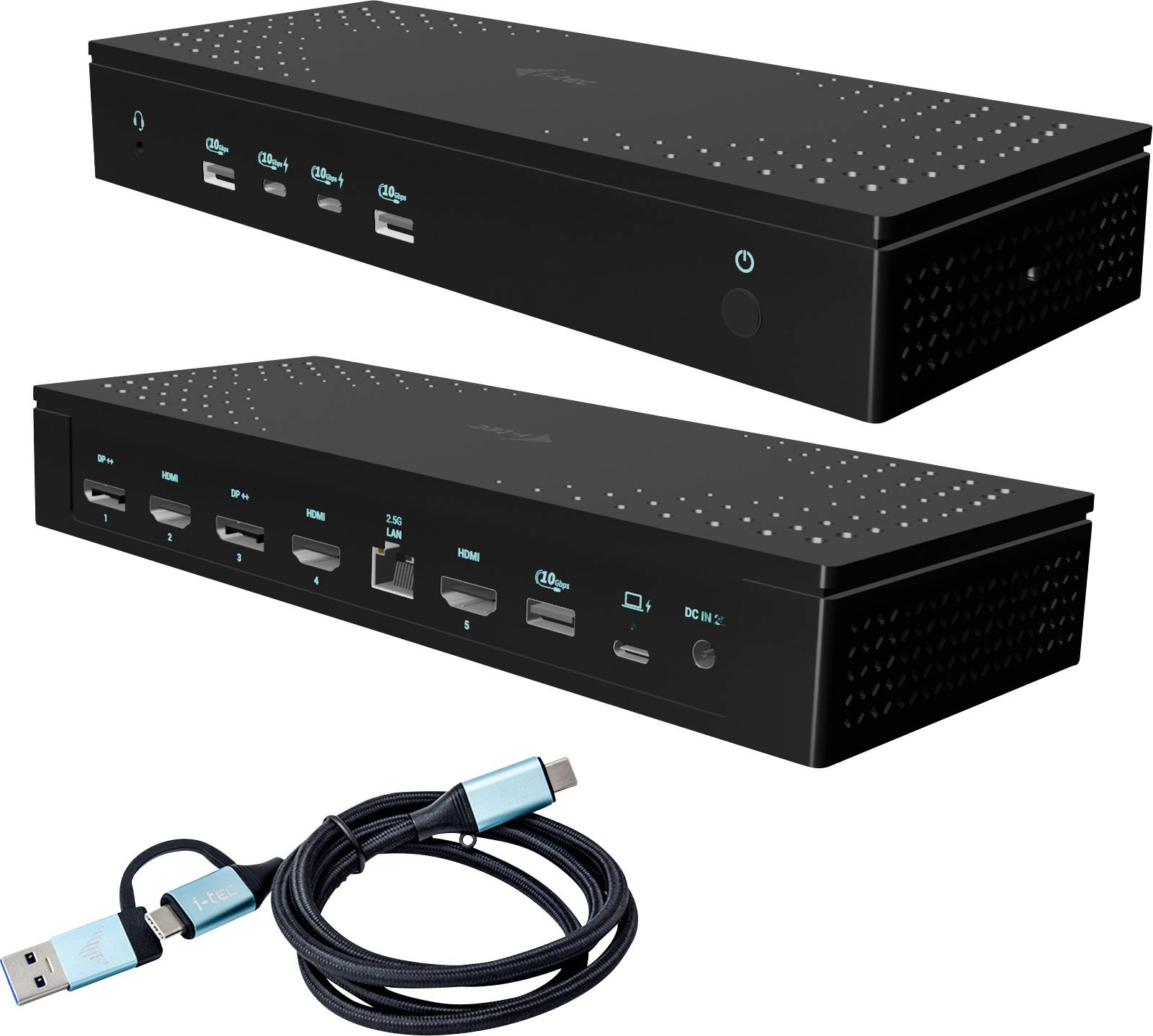

- Video connections: 3x HDMI* and 2x DP
- 2x USB-C (10 Gbps), with up to 15 W charging support
- 3x USB-A (10 Gbps)
- LAN connection with up to 2.5 Gbps (10/100/1000/2500 Mbps)
- 3.5 mm audio/microphone connection
- Laptop power up to 100 W.
- On/off button for the docking station
- Support for installation behind a monitor

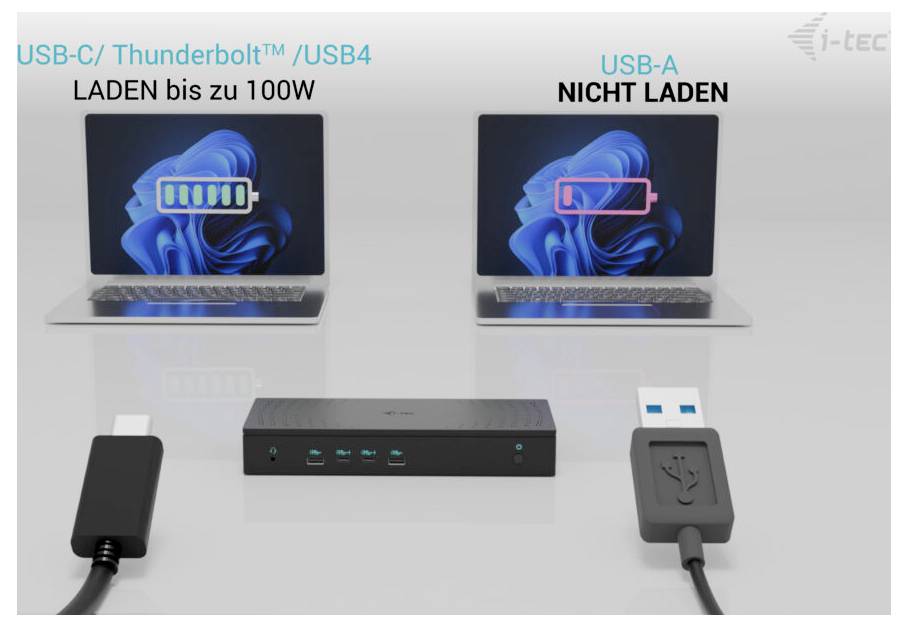

* When connected via USB-A, only four monitors are supported via DP and HDMI ports (video ports 1-4) and laptops/tablets cannot be charged.
This text is machine translated.
The docking station can be connected to virtually any laptop, regardless of brand, model or operating system type. Any USB connection* is sufficient.
The docking station can be installed with the i-tec VESA bracket behind the monitor (if this supports a standard VESA bracket).
- Support for up to 5 external monitors* with a resolution of 1x 8k/60Hz or 5x 4K/60Hz
- Video connections: 3x HDMI* and 2x DP
- 2x USB-C (10 Gbps), with up to 15 W charging support
- 3x USB-A (10 Gbps)
- LAN connection with up to 2.5 Gbps (10/100/1000/2500 Mbps)
- 3.5 mm audio/microphone connection
- Laptop power up to 100 W.
- On/off button for the docking station
- Support for installation behind a monitor
* When connected via USB-A, only four monitors are supported via DP and HDMI ports (video ports 1-4) and laptops/tablets cannot be charged.
This text is machine translated.

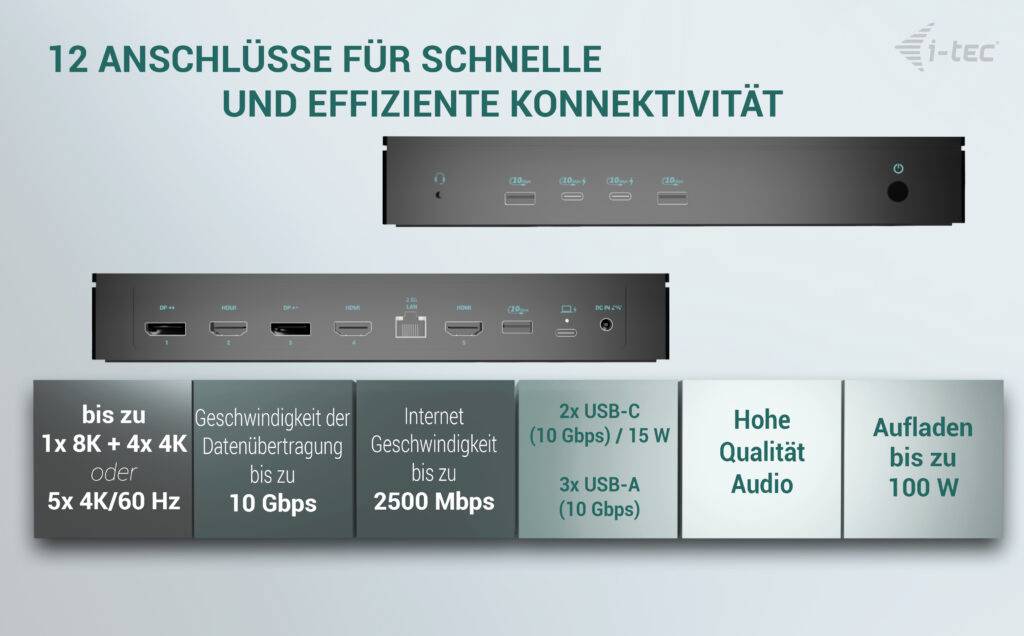

Features
- A docking station based on the latest DisplayLink DL7400 platform that allows you to connect up to five monitors at the same time
- The docking station is compatible with almost all the latest notebooks (USB-A, USB-C, USB4 or Thunderbolt™ 3/4 ports)
- Supports the highest possible resolution: One monitor can operate at up to 8K/60 Hz or up to five monitors at up to 4K/60 Hz
- The docking station features two USB-C ports providing up to 15 W charging power for charging tablets and high-performance smartphones
- There are 5 USB ports, including two USB-C (10 Gb/s) ports and three USB-A (10 Gb/s) ports
- The super-fast LAN-connection supports speeds of up to 2.5 Gbit/s (10/100/1000/2500 Mbit/s)
- A combined 3.5-mm audio/microphone connection enables the connection of, for example, integrated headphones with microphone
- The docking station supports up to 100 W power for a connected laptop or tablet
- The docking station is compatible for vertical mounting behind a monitor with VESA mounting bracket
