i-tec USB-C® docking station I-TEC USB-C KVM DS for 3 Hosts
EAN:
Part number:
Item no:
Highlights & Details
i-tec C31KVMDOCKPDPRO USB-C® docking station
- Connection A (or inputs):
- Connecton B (or outputs):
- No. of supported monitors: 2
- Maximum resolution:
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- HDMI version 2.0
- Data transfer rate 10 Gbps
- Other operating systems support: ChromeOS
- Product type
USB-C® docking station
- Supported monitors
2
- Cable length
1 m
- Factory colour
Black
- Width
240 mm
- Height
30 mm
- Depth
115 mm
- Weight
797 g
- Dim
(W x H x D) 240 x 30 x 115 mm
- Frame rate
144 Hz
- No. of HDMI ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- Charging method (Power Delivery)
with USB Power Delivery
- Max. output current
9 A
- Output voltage
20 V
- 10/100/1000 Mbps ports
1 x
- PSU power
180 W
- Transfer type
Corded
- UKCA
yes
- Ethernet LAN
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- Headphone outputs
1
- Microphone in
yes
- DC-in jack
yes
- USB Type-C DisplayPort Alternate Mode
yes
- Card reader integrated
no
- USB Power Delivery up to
92 W
- Manual
yes
- On/off switch
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3762860 i-tec USB-C® docking station I-TEC USB-C KVM DS for 3 Hosts
Description
Premium KVM docking station for up to three devices

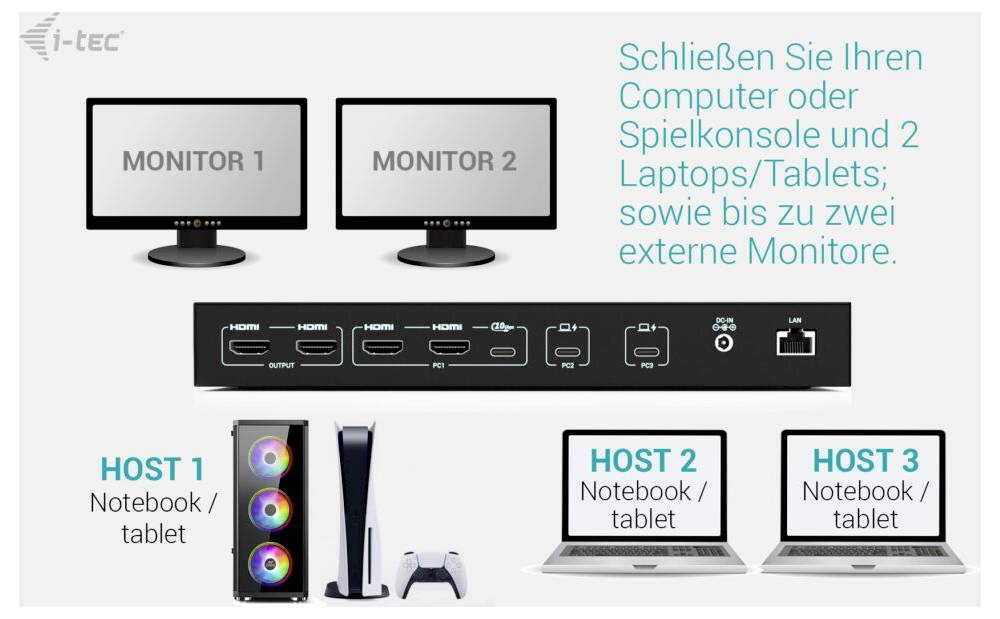

This powerful docking station allows you to connect up to three host devices – a PC or games console and two laptops or tablets at the same time. Fully compatible with devices with USB-C, USB4 or Thunderbolt 3/4/5 ports. PCs or consoles can be connected via HDMI and USB.
It supports up to two external monitors, which can display content from a single host or from another host at a time – Ideal for multi-tasking or working with multiple systems.

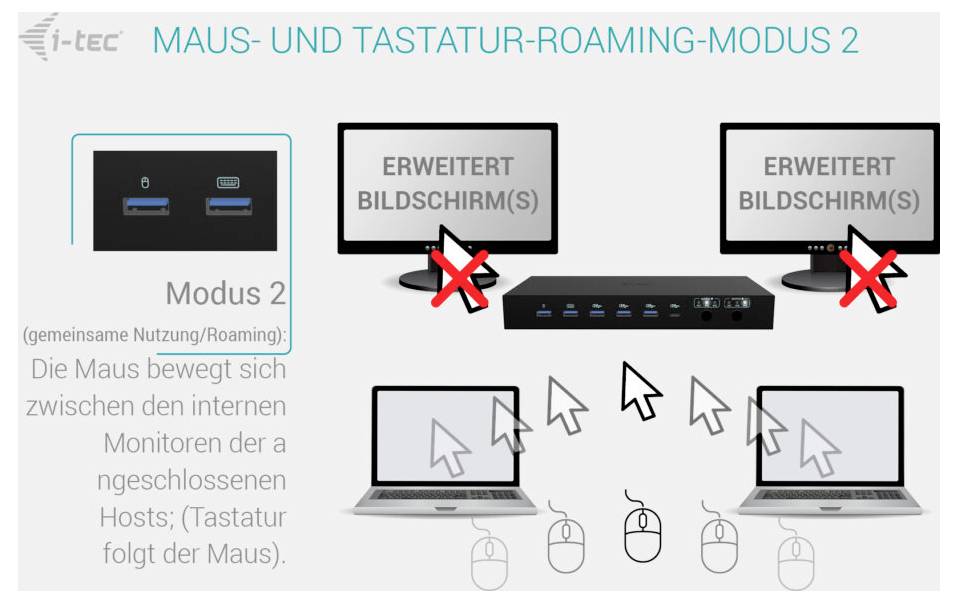

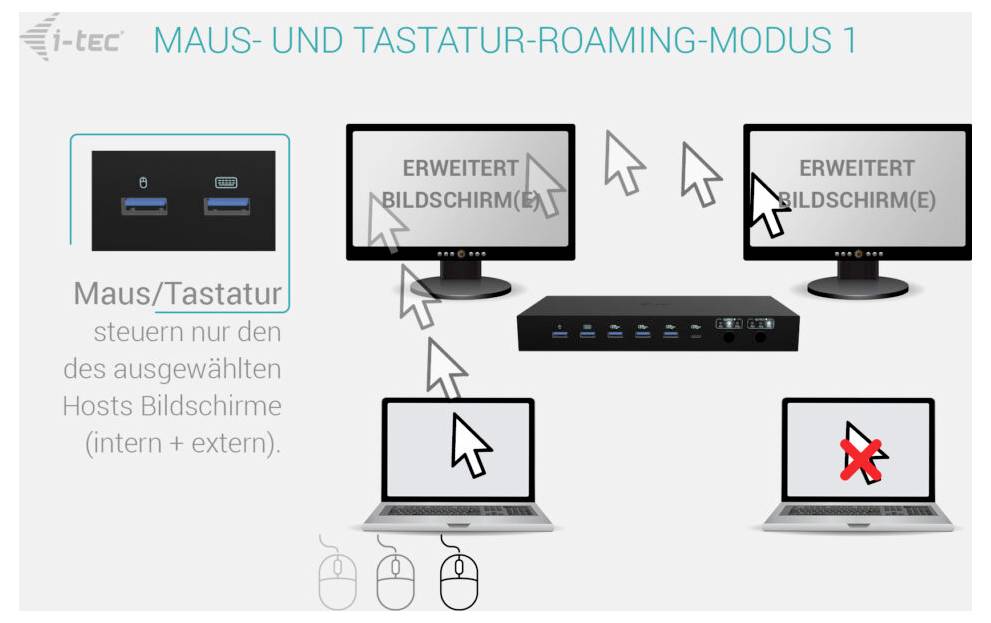

Thanks to two USB roaming connections, you can share your keyboard and mouse smoothly between two hosts simultaneously, WAS increases comfort and productivity.
The station also has four high-speed USB-connections (10 Gbit/s) for your peripheral devices as well as extensive connectivity including GLAN, audio and microphone connections.
The intelligent power supply supports the charging of a single laptop with up to 92 W or the simultaneous power supply of two devices each with 65 W.

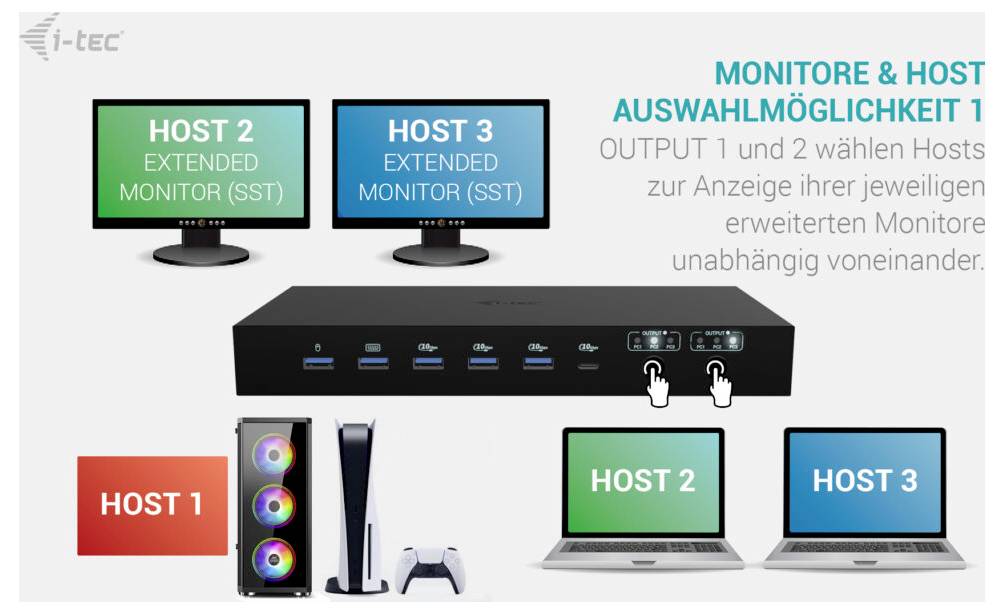

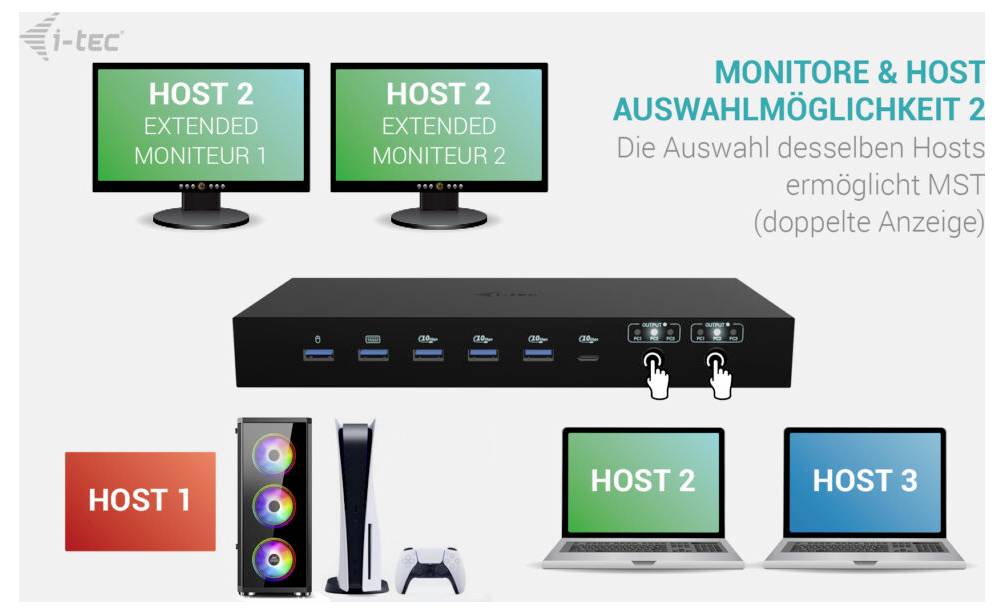

With convenient output selection switches you can easily select whether both monitors should mirror a single host or operate independent of each other - Ideal for parallel workflows.
- Support for up to 3 external host devices (2x laptop/tablet and 1x game console/PC)
- Connect up to 2 external monitors with a resolution up to 4K/60 Hz *

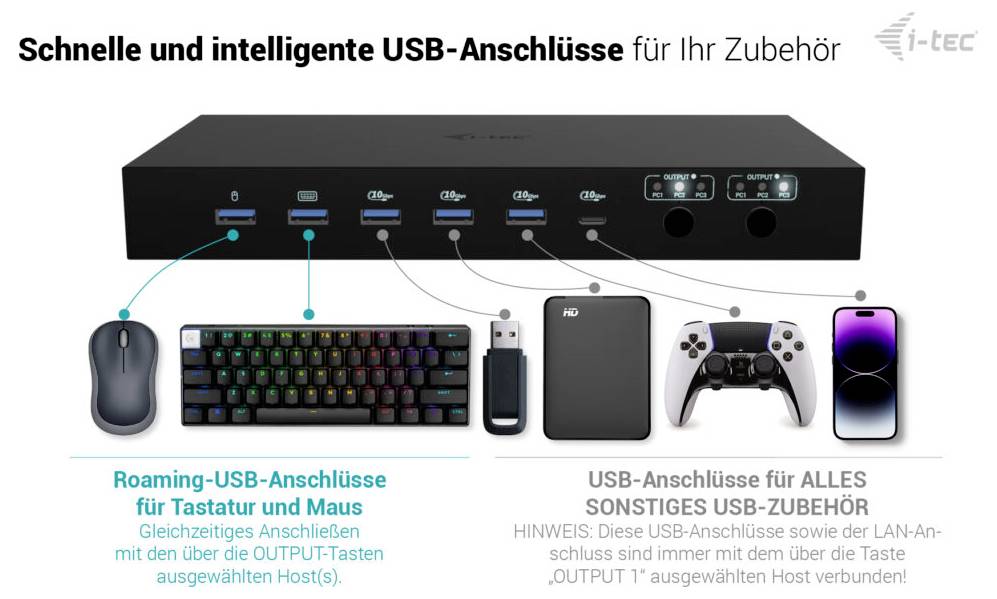

- 2 intelligent USB ports for keyboard and mouse with roaming function (shared)
- 4 fast 10 Gb/s USB ports (3 USB-A and 1 USB-C capable of charging up to 15 W)
- LAN port with speeds up to 1 Gbps (10/100/1000 Mbps)
- 2x 3.5 mm connectors for audio and microphone
- Power supply 1x 92 W or 2x 65 W.
- 2 independent OUTPUT buttons to select the host device (the OUTPUT 1 button also serves as a power switch for the docking station)
* MacOS does not support multi-stream transport (MST) for multi-screen video output. Therefore, when using MacOS, the same image is mirrored on both the connected monitors.
This text is machine translated.
This powerful docking station allows you to connect up to three host devices – a PC or games console and two laptops or tablets at the same time. Fully compatible with devices with USB-C, USB4 or Thunderbolt 3/4/5 ports. PCs or consoles can be connected via HDMI and USB.
It supports up to two external monitors, which can display content from a single host or from another host at a time – Ideal for multi-tasking or working with multiple systems.
Thanks to two USB roaming connections, you can share your keyboard and mouse smoothly between two hosts simultaneously, WAS increases comfort and productivity.
The station also has four high-speed USB-connections (10 Gbit/s) for your peripheral devices as well as extensive connectivity including GLAN, audio and microphone connections.
The intelligent power supply supports the charging of a single laptop with up to 92 W or the simultaneous power supply of two devices each with 65 W.
With convenient output selection switches you can easily select whether both monitors should mirror a single host or operate independent of each other - Ideal for parallel workflows.
- Support for up to 3 external host devices (2x laptop/tablet and 1x game console/PC)
- Connect up to 2 external monitors with a resolution up to 4K/60 Hz *
- 2 intelligent USB ports for keyboard and mouse with roaming function (shared)
- 4 fast 10 Gb/s USB ports (3 USB-A and 1 USB-C capable of charging up to 15 W)
- LAN port with speeds up to 1 Gbps (10/100/1000 Mbps)
- 2x 3.5 mm connectors for audio and microphone
- Power supply 1x 92 W or 2x 65 W.
- 2 independent OUTPUT buttons to select the host device (the OUTPUT 1 button also serves as a power switch for the docking station)
* MacOS does not support multi-stream transport (MST) for multi-screen video output. Therefore, when using MacOS, the same image is mirrored on both the connected monitors.
This text is machine translated.
Features
- This high-quality docking station was developed for professional and multimedia use and supports the simultaneous connection of up to three host devices – a PC or games console and two notebooks or tablets
- Fully compatible with all laptops that are equipped with USB-C, USB4 or Thunderbolt 3/4/5 ports. A PC or game console can be connected via 1–2× HDMI and USB
- The station supports up to two external monitors, which can either display content from a single host or from another host - Ideal for parallel workflows or presentations
- Thanks to the unique USB roaming function, two dedicated USB ports for keyboard and mouse can be shared simultaneously by two hosts, WAS ensures maximum efficiency and convenience when switching systems
- It also features 4 high-speed USB (10 Gbps) ports for connecting peripherals, as well as GLAN, audio, and microphone ports
- The docking station supports intelligent charging and provides up to 92 W for a connected laptop or 65 W each for simultaneous charging of two devices
- With two output selection switches, users can easily choose whether to use both monitors with one host or work with two hosts at the same time – thus exploiting the full potential of Dual host productivity
