Buy ICY BOX IB-1805ML-CU31 M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe 2230, 2242, 2260, 2280 61189

Black KY BOX USB-C hub/dock with braided cable and adapters, shown alongside USB-C and USB-A connectors on a white background.

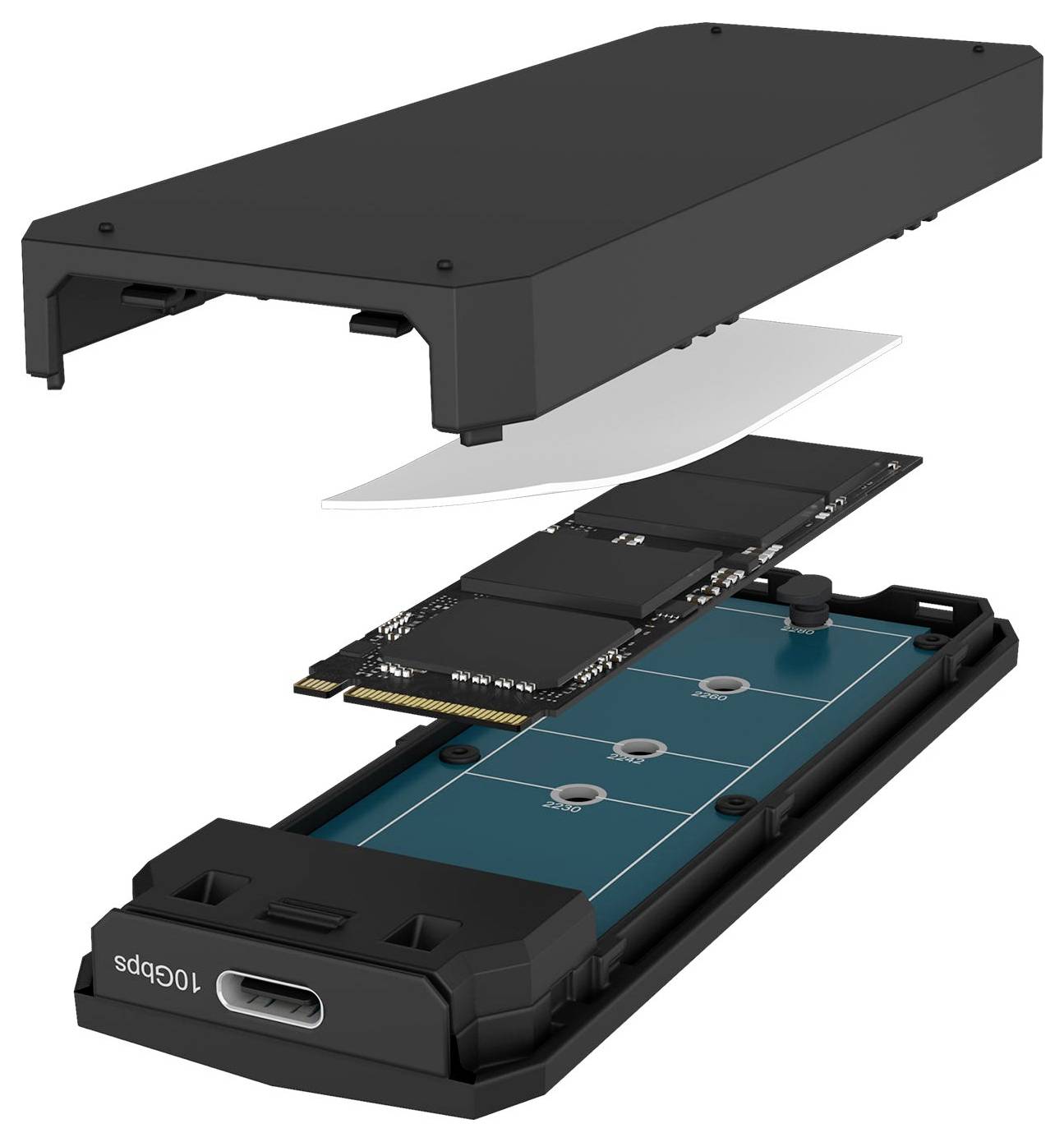

Exploded view of a portable SSD enclosure showing the outer case, circuit board, thermal pad, and internal drive assembly.

Promo image showing four gaming PC cases with customizable RGB lighting and the text 'RGB-Beleuchtung' and 'RGB nach deinem Geschmack'.<br>

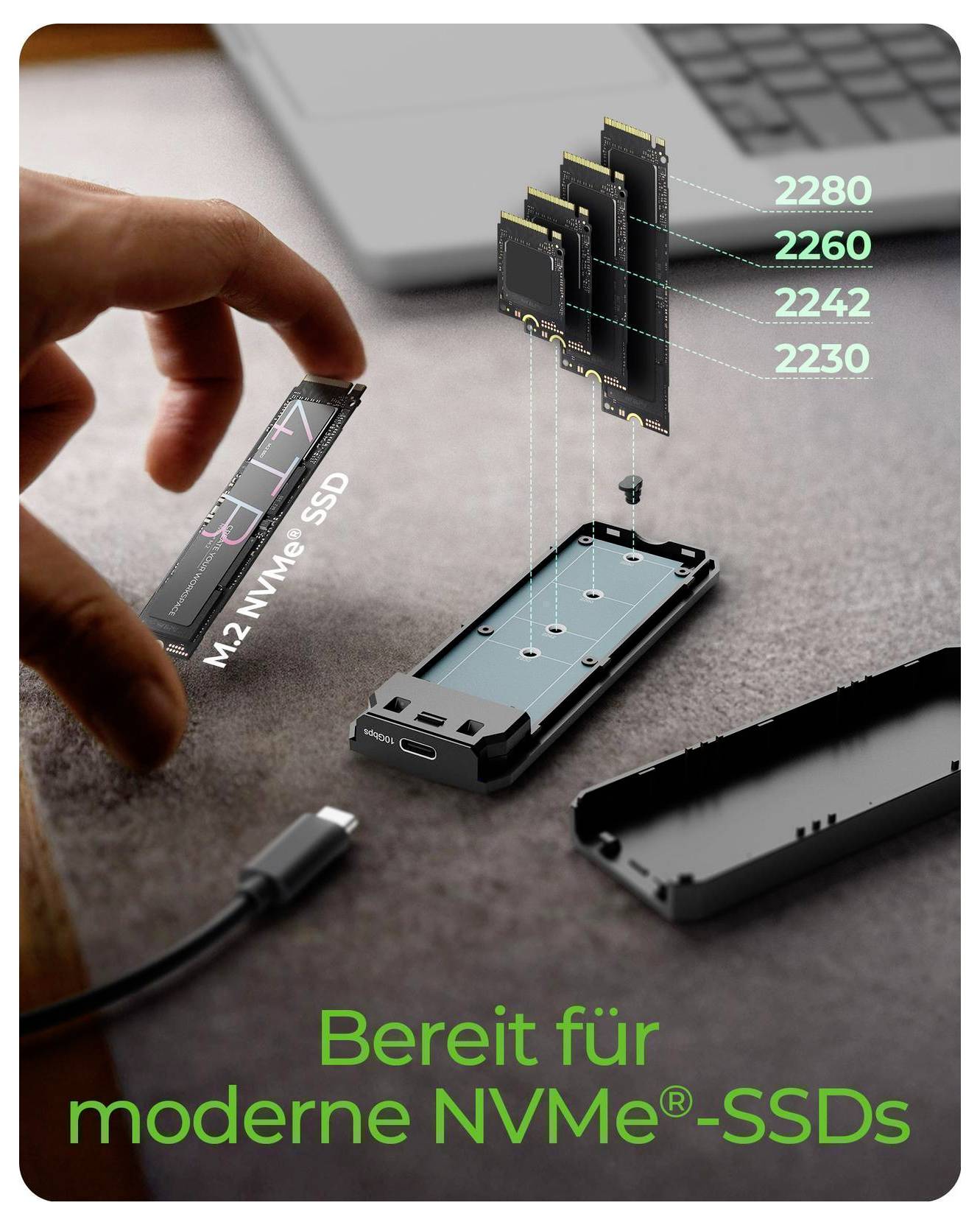

Exploded-view NVMe SSD assembly showing M.2 NVMe SSD, controller chips labeled 2280, 2260, 2242, 2230, with text 'Bereit für moderne NVMe-SSDs'.

Laptop keyboard with a battery pack showing a curved white heat-flow path, illustrating heat conduction; text says 'Wärmeleitfunktion'.

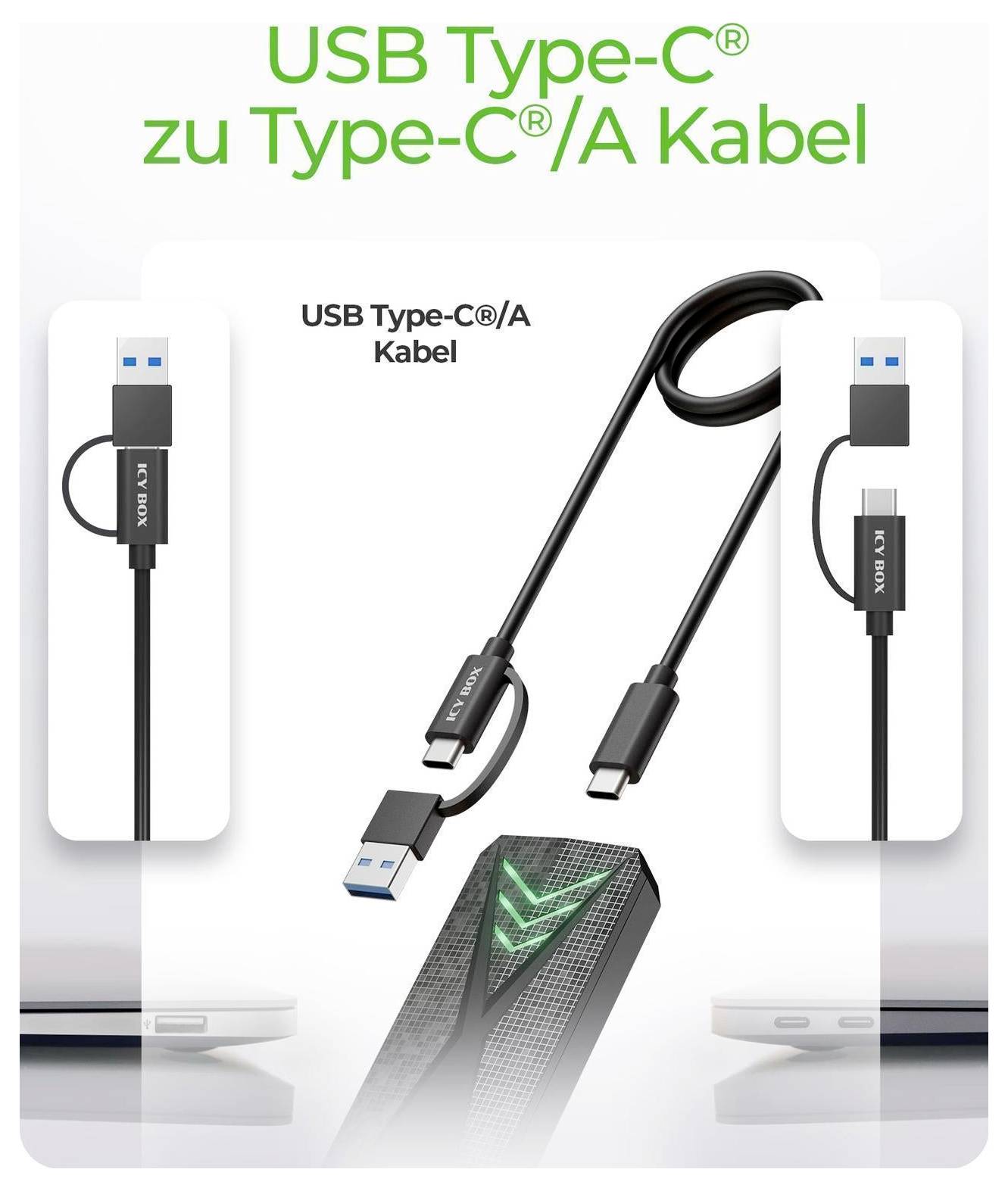

Product image of a USB Type-C to USB Type-C/A cable, showing both connector ends and a braided black cable for charging or data transfer.

Product image of a small black device connected by cable, labeled 'Windows' and 'macOS' compatible system, shown on a desk with laptops and a user typing.<br>

1/7

Fast track dispatch on Fri, 25 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 16.80 / piece)

€ 16.80

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

ICY BOX housing for NVMe SSD, RGB lighting, Host USB 3.2 Gen 2 Type-C+ Type-A, 10 Gb/s.

Highlights & Details

SSD-casing PCI Express M.2
Number of supported storage drives: 1
NVMe SSD
USB connection
10 Gbit/s
Black

Technical specifications

Disk size: M.2
USB version 3.2 Gen 2 (3.1 Gen 2)
USB-plug USB type-C
Product type: SSD housing
Data transfer rate 10 Gbps

Product type: M.2 SSD enclosure

HDD connection: M.2 PCIe NVMe

Compatible with: 2230
2242
2260
2280

Supported HDD size (max.): 2 TB

Interfaces: USB C® (USB 3.2 2nd gen)

Transfer rate: 10 GBit/s

Power supply (LOV): via USB

Features: 1x
flat

Storage media features: M.2 slot
NVMe support

Material: Plastic

Factory colour: Black

Width: 40 mm

Height: 14 mm

Depth: 110 mm

Dim: (W x H x D) 40 x 14 x 110 mm

Weight: 56 g

Cable length: 0.6 m

Wireless charging: No

UKCA: yes

USB connectivity: yes

Products per master (outer) case: 40 Stück(e)

NVMe: yes

Manual: yes

Customs product code (TARIC): 84718000

Maximum storage capacity: 2 TB

Package weight: 105 g

Plug and Play: yes

Number of storage drives supported: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3825292 ICY BOX IB-1805ML-CU31 M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe 2230, 2242, 2260, 2280 61189

Description

RGB that speaks your language

The built-in RGB lighting gives a clear visual signal of power and activity, giving your workplace a personal touch.

Fast transmissions, flexible cable

Fitted with USB 3.2 Gen 2 Type-C, it offers transmission speeds of up to 10 Gbps. The supplied 60 cm long USB Type C-to-Type C/A combination cable enables flexible connectivity for different devices.

Ready for modern NVMe SSD

Designed for M.2 NVMe SSD with M-Key or B+M-Key slots, Spade Case 1805 supports capacities of up to 2 TB, Ideal for fast data access and large file storage.

Heat dissipation function

A heat conduction pad helps to control the heat efficiently under high loads. This enables a stable performance and long life of the SSD.

USB Type C to Type C/A cable

The provided cable supports both modern USB Type-C Hosts as well as older USB Type-A ports and therefore immediately offers broad compatibility.

This text is machine translated.

Features

Housing for NVMe SSD
RGB lighting
USB 3.2 Gen 2 with up to 10 Gbit/s transfer rate
Cable type-C-to-C + A, 60 cm
Tool-free M.2-installation
Housing made of plastic

Scope of delivery

1 x spade case 1805
1x USB 3.2 1st Gen 2 Type-C® to Type-C®/A cable 60 cm
2x Rubber fixing
1x thermal pad
1x manual

System requirements

A free USB Type-C® or Type-A port
On your computer
