Buy ICY BOX IB-1806MT-CU31 M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe 2230, 2242, 2260, 2280 61173

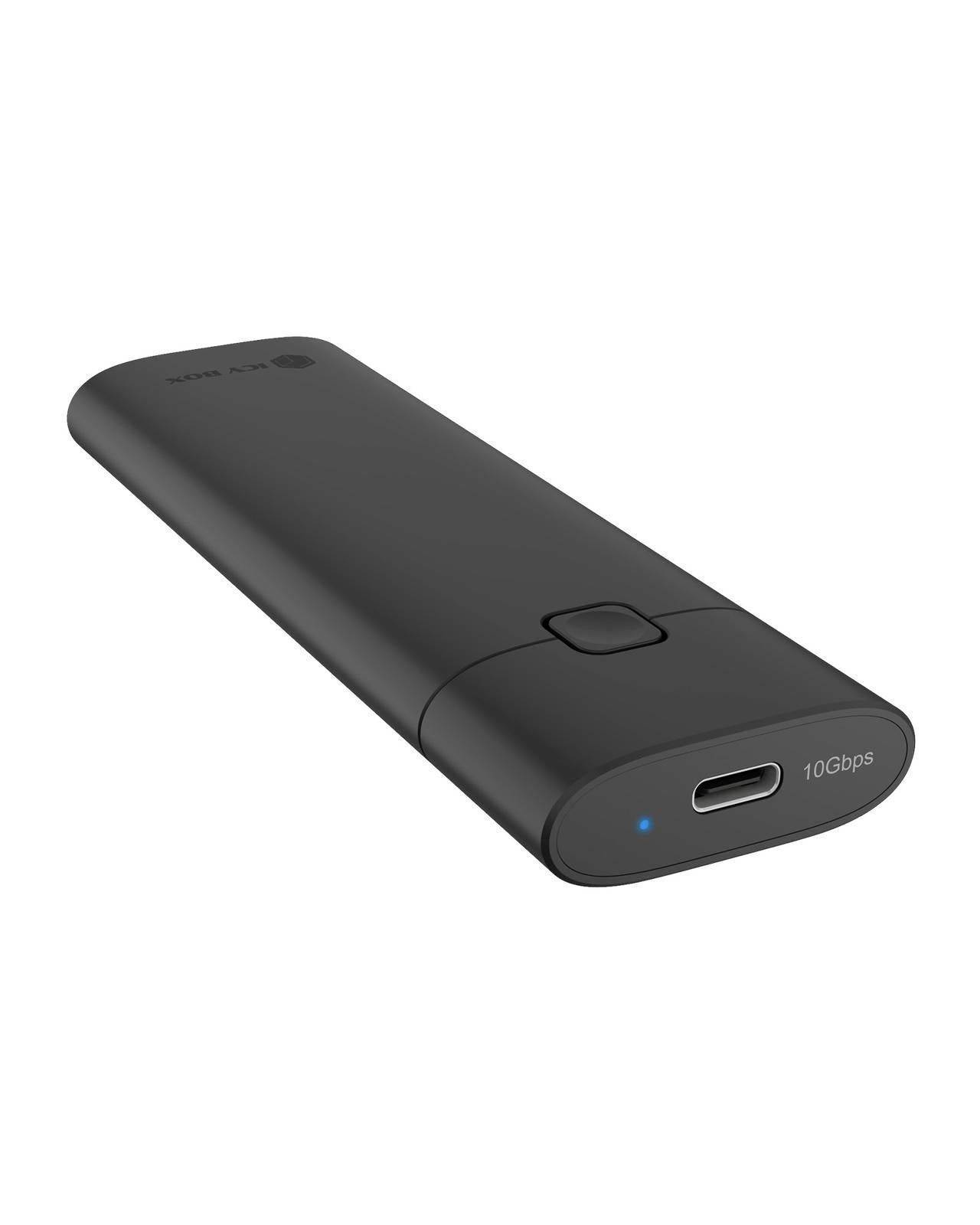

Black portable SSD with USB-C port and small blue LED indicator, shown on a white background.

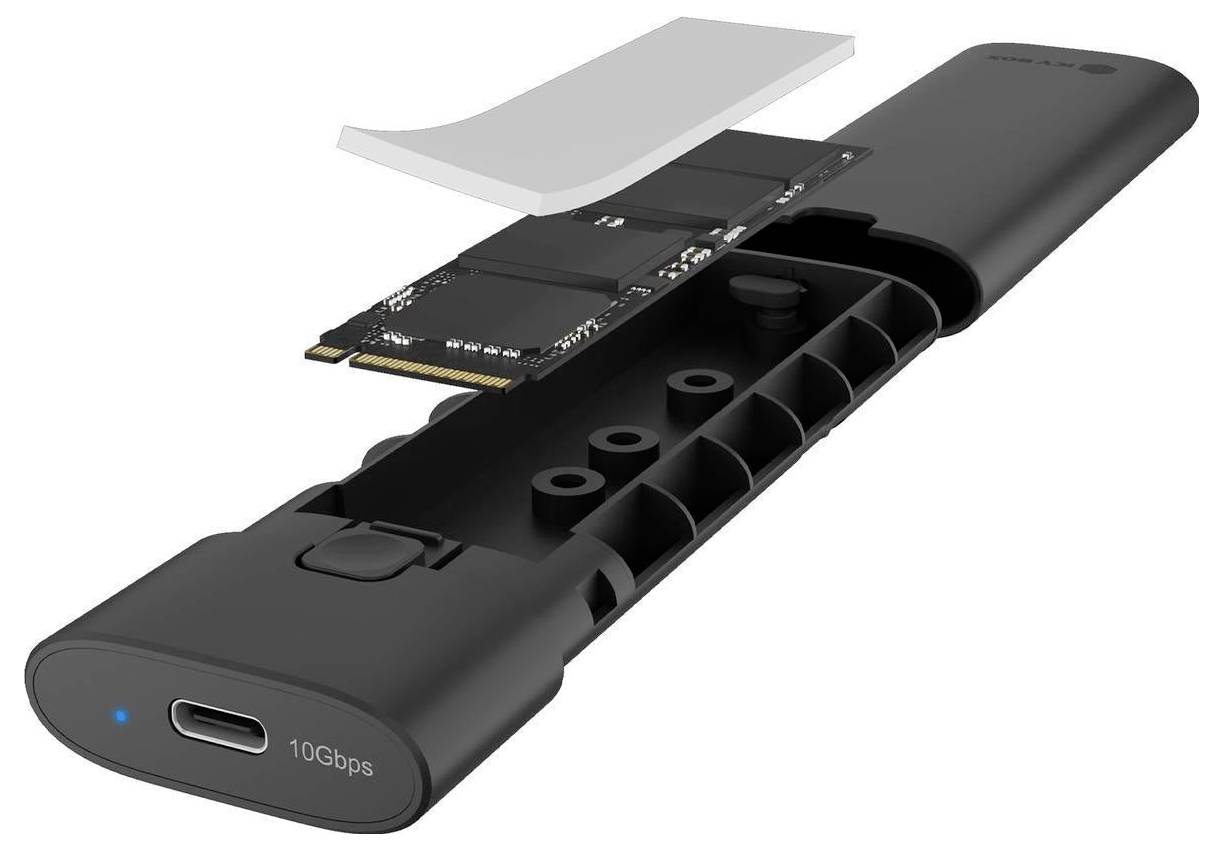

Exploded view of a USB-C portable SSD enclosure with the internal SSD board and thermal pad shown above the black case.

Portable black device shown with heat-dissipation graphic and the German text 'Robuste Bauweise' and 'Wärmeableitung', indicating a rugged build and thermal management.

USB-C docking station with multiple laptops connected, shown as a plug-and-play device for shared workstation use.

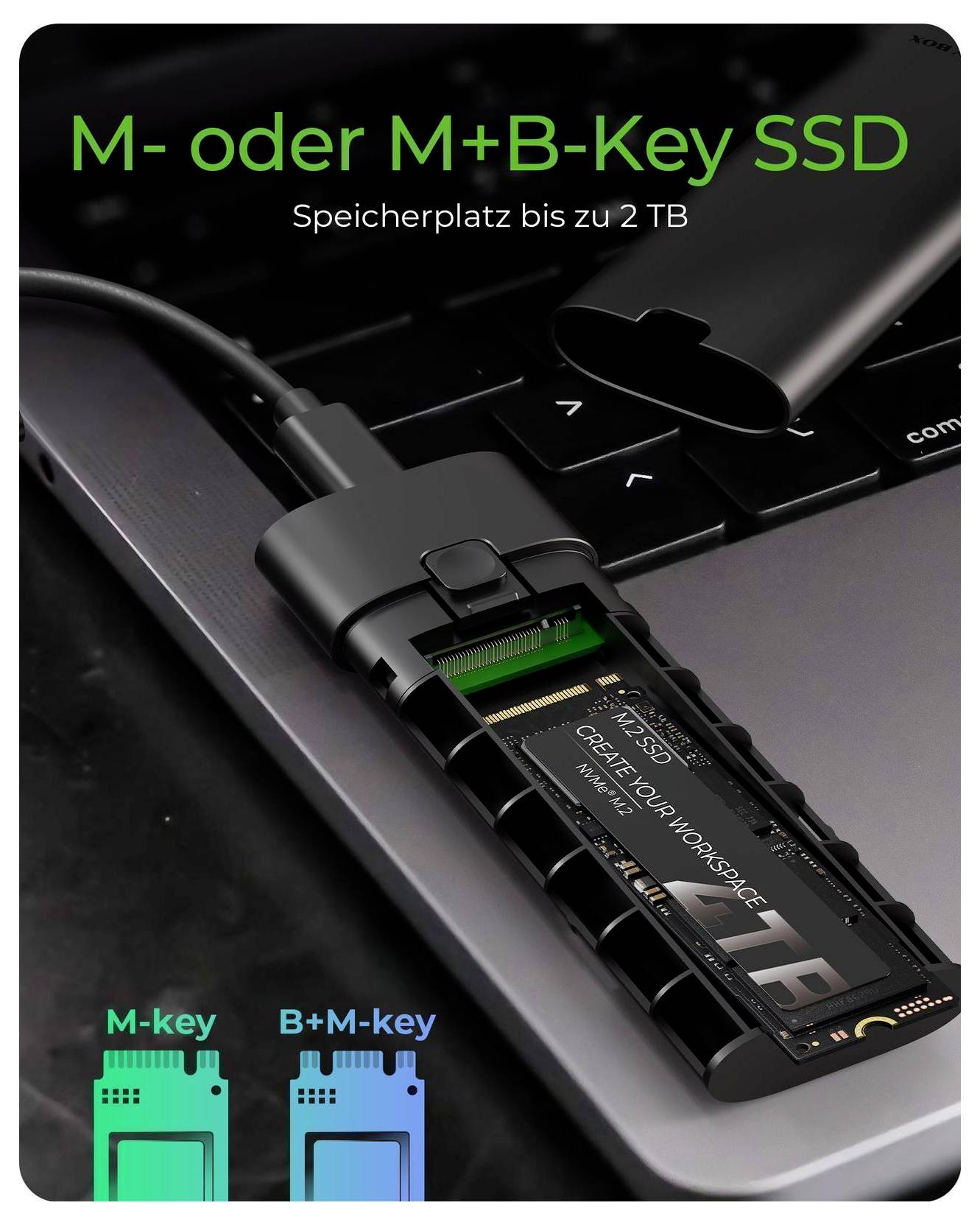

Diagram of an M.2 SSD showing M-key and B+M-key types, with German text 'M- oder M+B-Key SSD' and 'Speicherplatz bis zu 2 TB'.

Product image of USB 3.2 Gen 2 Type-C to Type-C/A cable included with the device, showing a power bank and USB-C and USB-A connectors.

Product image of a USB-C adapter with removable cover, labeled compatible with Windows, macOS, and Linux.

1/7

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 15.12 / piece)

€ 15.12

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

ICY BOX M.2 NVMe SSD casing, tool-free installation, host USB 3.2 Gen 2 Type-C+A, 10 Gbps, aluminum

SSD-casing PCI Express M.2
Number of supported storage drives: 1
NVMe SSD hot swap
USB connection
10 Gbit/s
Black

Technical specifications

Disk size: M.2
USB version 3.2 Gen 2 (3.1 Gen 2)
USB-plug USB type-C
Product type: SSD housing
Data transfer rate 10 Gbps

Product type: M.2 SSD enclosure

HDD connection: M.2 PCIe NVMe

Compatible with: 2230
2242
2260
2280

Supported HDD size (max.): 2 TB

Interfaces: USB C® (USB 3.2 2nd gen)

Transfer rate: 10 GBit/s

Power supply (LOV): via USB

Features: 1x
flat

Storage media features: M.2 slot
NVMe support

Material: Aluminium

Factory colour: Black

Width: 38 mm

Height: 12 mm

Depth: 144 mm

Dim: (W x H x D) 38 x 12 x 144 mm

Weight: 42 g

Cable length: 0.6 m

Wireless charging: No

UKCA: yes

USB connectivity: yes

Products per master (outer) case: 40 Stück(e)

NVMe: yes

Manual: yes

Customs product code (TARIC): 84718000

Hot-swap: yes

Maximum storage capacity: 2 TB

Package weight: 64 g

Plug and Play: yes

Number of storage drives supported: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3825293 ICY BOX IB-1806MT-CU31 M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe 2230, 2242, 2260, 2280 61173

Description

M.2 PCIe NVMe SSD

Tool-free installation for a quick setup with transfer speeds of up to 10 Gbps. Designed for efficient file management and data processing. Compatible with 22x 30/42/60/80 mm SSD sizes.

Robust design

The robust aluminum casing serves as a heat sink for maintaining an optimum SSD performance and at the same time protects the SSD from physical damages.

Plug & Play

Spade Case 1806 does not require any additional drivers. With Plug & Play support for Windows, MacOS and Linux, users can immediately access their data. This tool is suitable for professionals and occasional users alike.

This text is machine translated.

Features

Housing for M.2 NVMe SSD
Compatible M.2 NVMe SSD sizes: 22x 30/42/60/80
Drive capacity: Up to 2 TB
Host USB 3.2 Gen 2 with up to 10 Gbps
Cable type-C to type-C+A, 60 cm
Tool-free M.2 installation
Supports Plug & Play and Hot Swap
Cooling pad included
Aluminium casing.

Scope of delivery

1 x spade case 1806
1x USB Type-C® to Type-C®/A cable (60 cm)
2x Rubber fixture
1x thermal pad
1x manual

System requirements

A free USB Type-C® or Type-A port
On your computer
