Buy ICY BOX IB-1827MCP-C31 M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe, SATA 2230, 2242, 2260, 2280 6

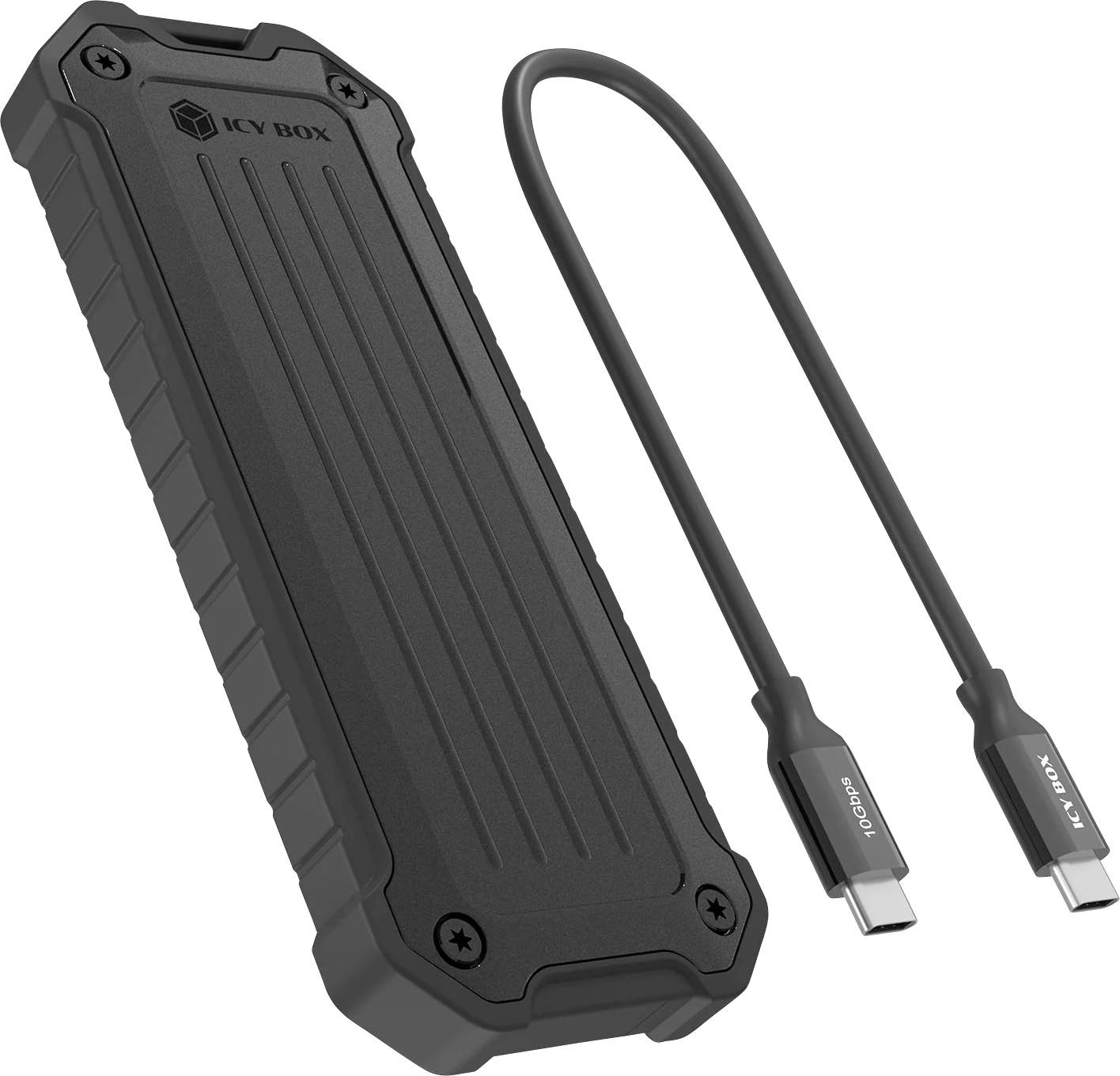

Black ICY BOX external SSD enclosure with USB-C cable shown on a white background.

Promotional image of a rugged phone case with text 'Stoß- und staubgeschützt' and 'Die Silikonhülle sorgt für ultimativen Schutz', showing impact and dust protection plus inset labels 'Staubbeständig' and 'Stoßdämpfend'.<br>

Green hiking backpack with a water bottle and attached tag, overlaid with German text: 'Bereit für die Reise' and 'Einfach einhaken – überallhin mitnehmen.'<br>

Promotional image of a laptop connected to an external M.2 SSD enclosure, labeled '10 Gbps'; text says 'Rasend schnelles 10 Gbps M.2 SSD Gehäuse' and 'Unterstützt NVMe und SATA USB Type-C Schnittstelle'.

German compatibility graphic showing an SSD slot and three card types: B+M-key and M-key NVMe/PCIe are supported, B-key NGFF/SATA is not.<br>

Graphic showing universal SSD compatibility, with support up to 4 TB and four M.2 sizes labeled 2280, 2260, 2242, and 2230.

Marketing graphic showing a rugged device with the text 'Betriebssysteme' and 'Für jeden gemacht', plus Windows, Linux, macOS, and Android compatibility icons.<br>

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 26.88 / piece)

€ 26.88

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Highlights & Details

M.2 NVMe SSD enclosure dust and shock-proof

Dust and impact proof

Technical specifications

Plug & Play: Yes
Socket M-Key
Cooling: Passive
Cable length: 30 cm

Product type: M.2 SSD enclosure

HDD connection: M.2 PCIe NVMe
SATA

Compatible with: 2230
2242
2260
2280

Supported HDD size (max.): 4 TB

Interfaces: USB C® (USB 3.2 2nd gen)

Transfer rate: 10 GBit/s

Power supply (LOV): via USB

Features: Hot swappable
shockproof
dust resistant

Storage media features: UASP support

Material: Aluminium

Factory colour: Black

Width: 54 mm

Height: 14 mm

Depth: 136 mm

Dim: (W x H x D) 54 x 14 x 136 mm

Weight: 0.196 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3778978 ICY BOX IB-1827MCP-C31 M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe, SATA 2230, 2242, 2260, 2280 6

User & Safety Instructions

User & Safety Instructions 3778978 ICY BOX IB-1827MCP-C31 M.2 SSD enclosure USB C® (USB 3.2 2nd gen) 10 GBit/s M.2 PCIe NVMe, SATA 2230, 2242, 2260, 2280 6

Description

Dust and impact proof
Made of massive zinc alloy, the housing reliably protects against impacts and dust – Ideal for journeys, external operations and the daily use in rough environments.

Ready for the road
Compact and light - with loop for easy fixing to bag or equipment. Your data is always with you when you need it – no matter where you work.

USB Type-C® performance
USB 3.2 Gen 2 Type-C® gives you transfer rates up to 10 Gbps. Edit files directly from the drive – fast, stable and without delay.

M-key & B+m-key SSDs
Flexible compatible – Supports M-Key and B+M-Key SSDs with NVMe or SATA. Suitable for M.2 sizes from 2230 to 2280 – maximum flexibility in format and storage capacity.

M.2 NVMe SSD
Performance meets capacity – compatible with NMEA and SATA SSDs up to 4 TB – Ideal for 4K media, video editing and backups. Find the perfect balance between speed and memory.

This text is machine translated.

Features

USB 3.2 Gen 2 Type-C® host port with up to 10 Gbps

Scope of delivery

1X IB-1827MCP-C31
1x USB Type C® to Type C® cable (30 cm)
1x rubber mounting
4x screw
1x Screwdriver
1x heat conduction pad
1x heatsink
1x wrist strap
1x user manual

Hints

Made of zinc alloy for dust and shock resistance

System requirements

Windows®
MacOS ®
Linux
Android™
