Buy ICY BOX IB-1917M-C32a M.2 SSD enclosure USB C® (USB 3.2 2x 2nd gen) 20 GBit/s M.2 PCIe NVMe 2230, 2242, 2260, 2280 61163

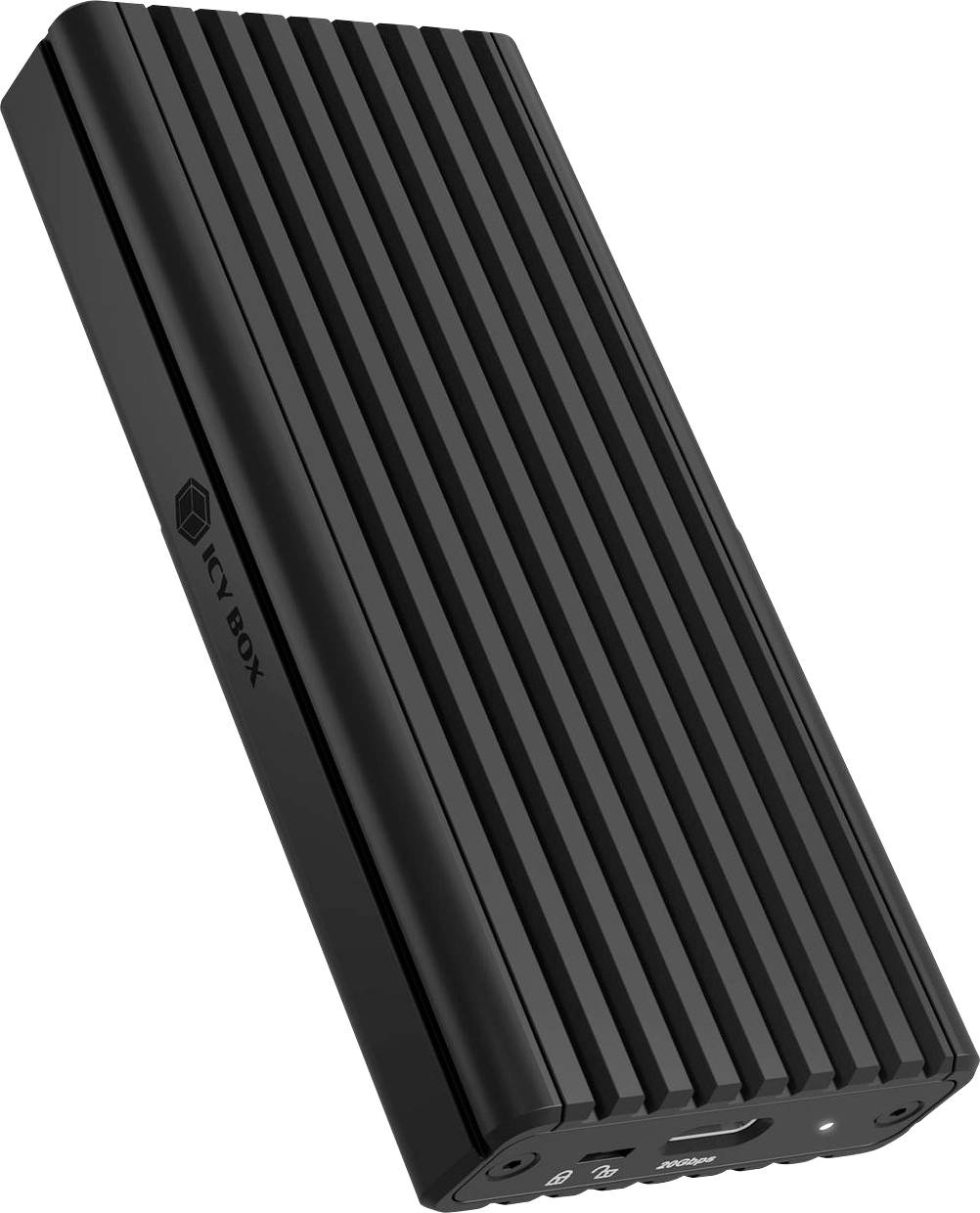

Black ICY BOX external enclosure with ribbed aluminum body, shown angled on a white background.

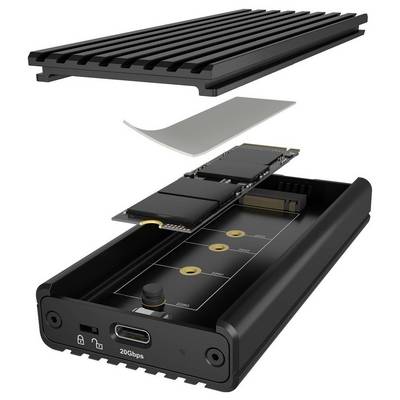

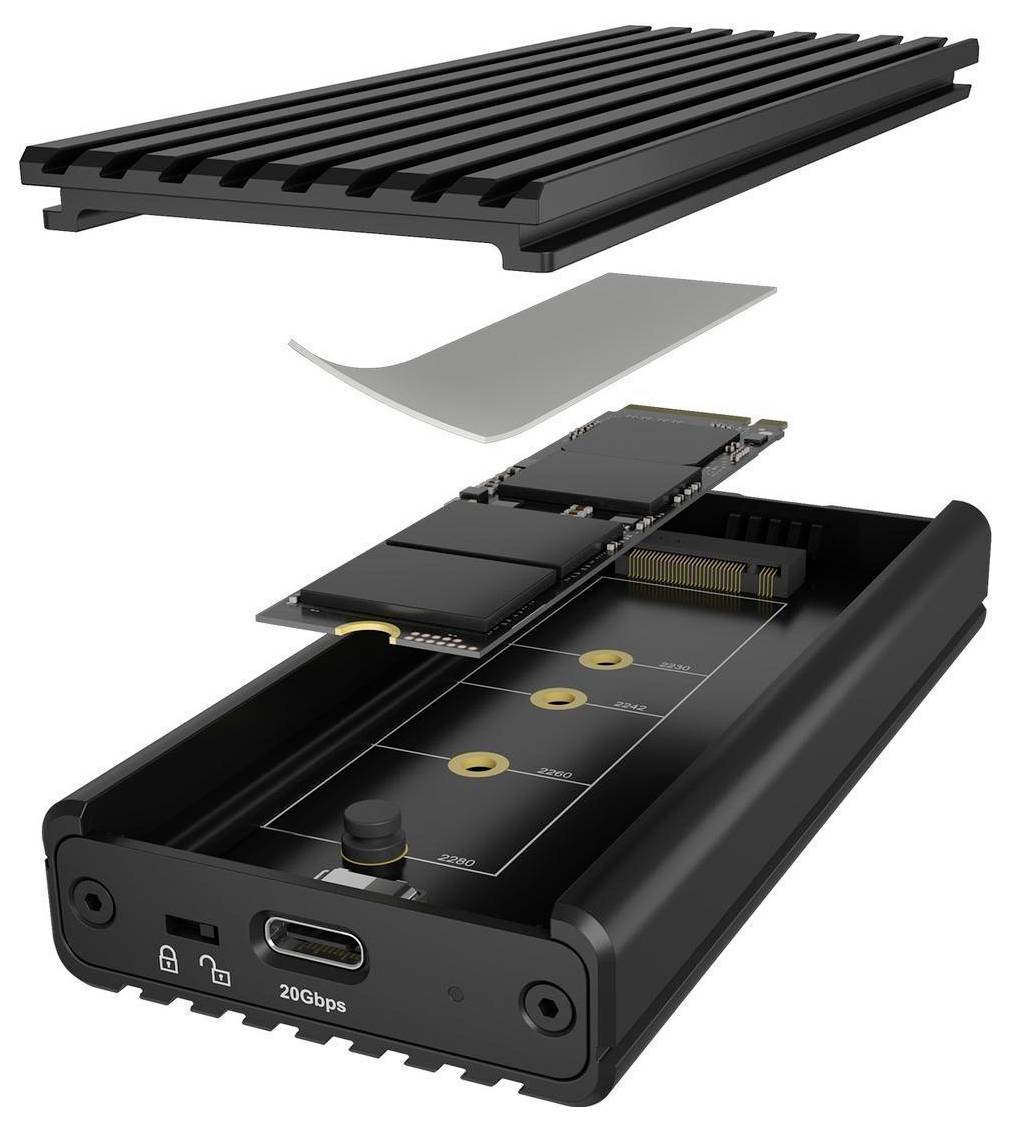

Exploded view of a USB-C external SSD enclosure showing the vented top cover, thermal pad, internal circuit board, and 20Gbps front port.

Promotional graphic of a USB-C drive labeled 'USB 3.2 Gen 2x2 Type-C®' and 'Bis zu 20 Gbit/s', with a black device streaking through colorful motion lines.<br>

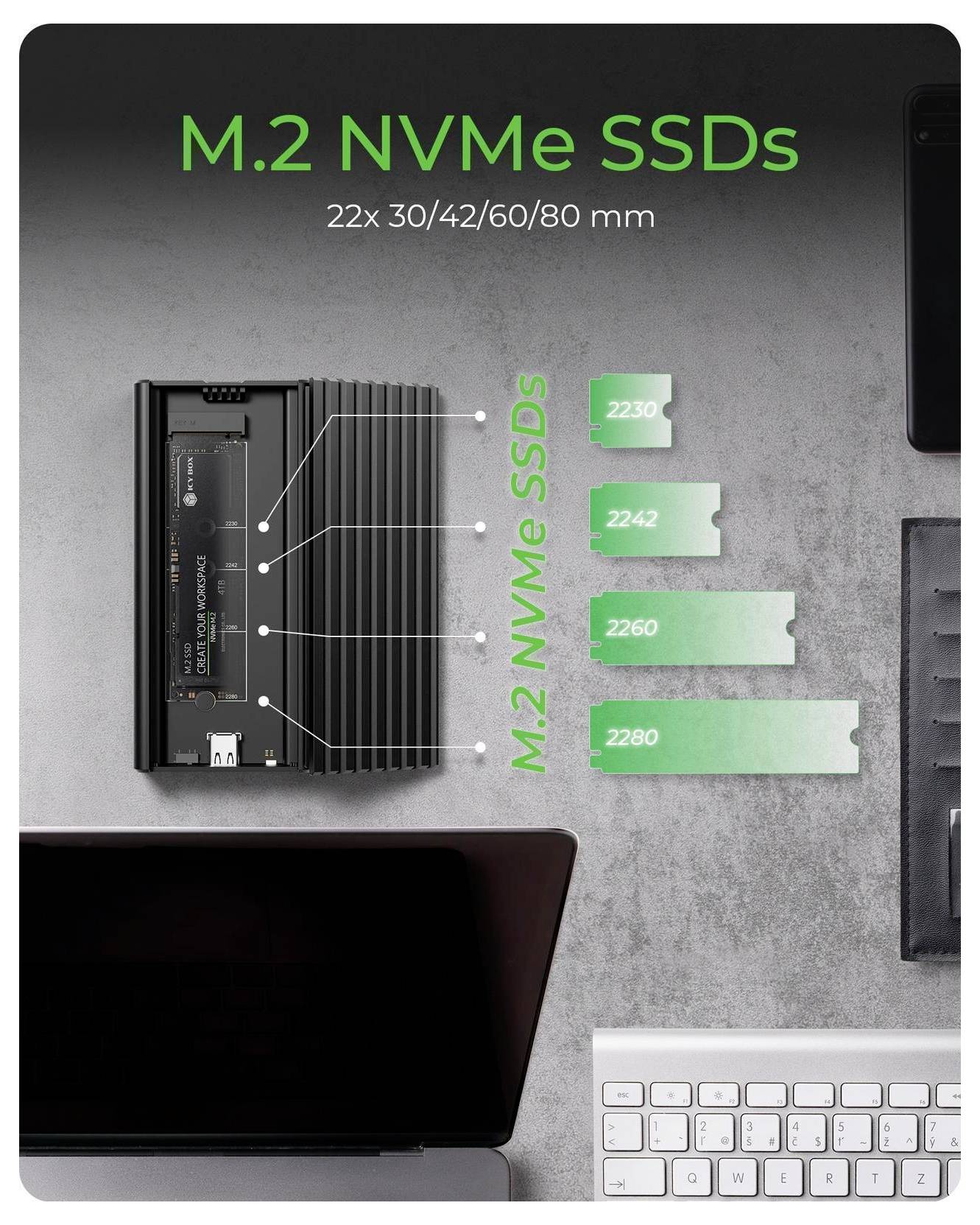

Graphic showing M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes, labeled 'M.2 NVMe SSDs' and '22x 30/42/60/80 mm'.<br>

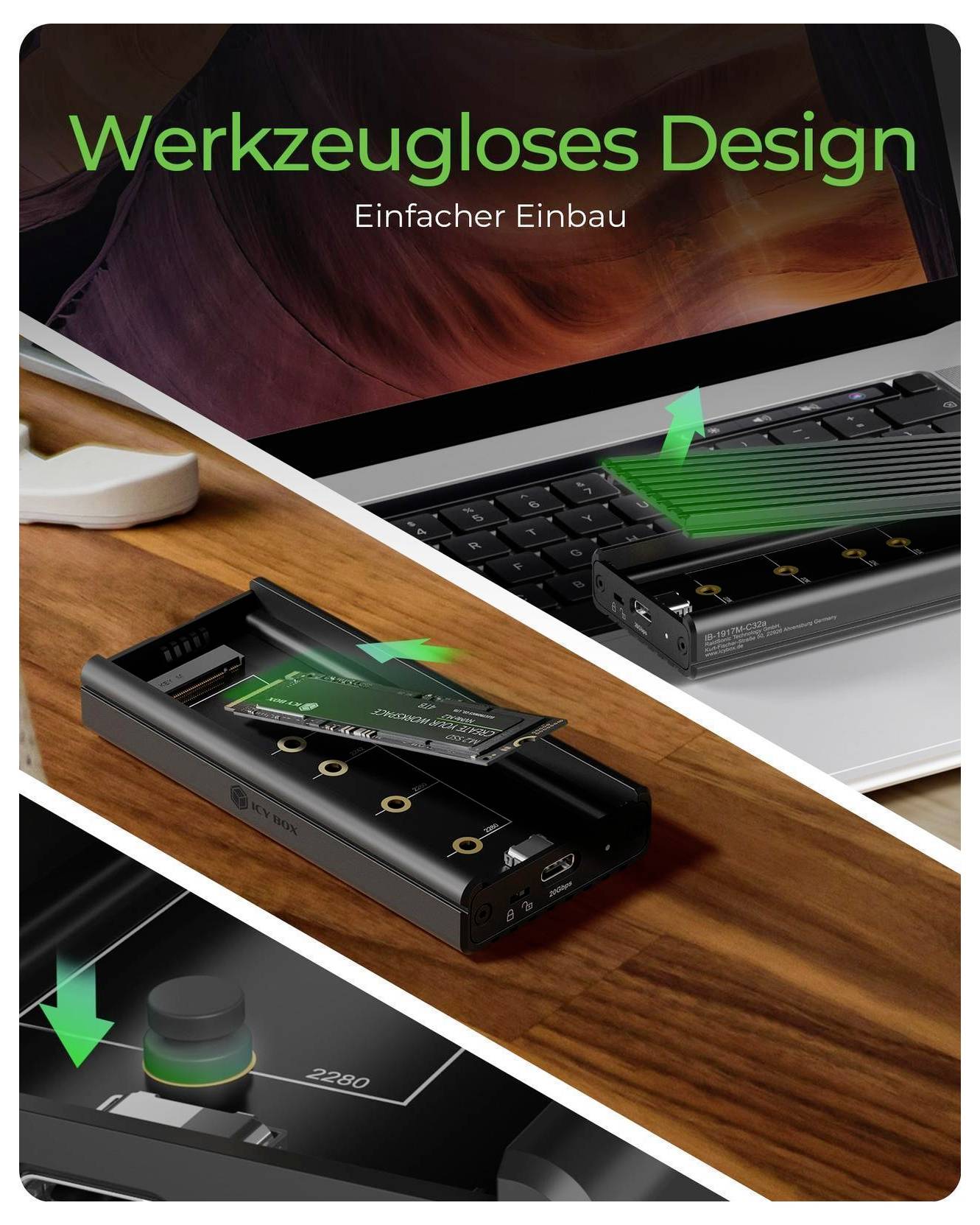

Promotional image of a tool-free SSD enclosure install, labeled 'Werkzeugloses Design' and 'Einfacher Einbau', showing drive insertion steps with arrows.<br>

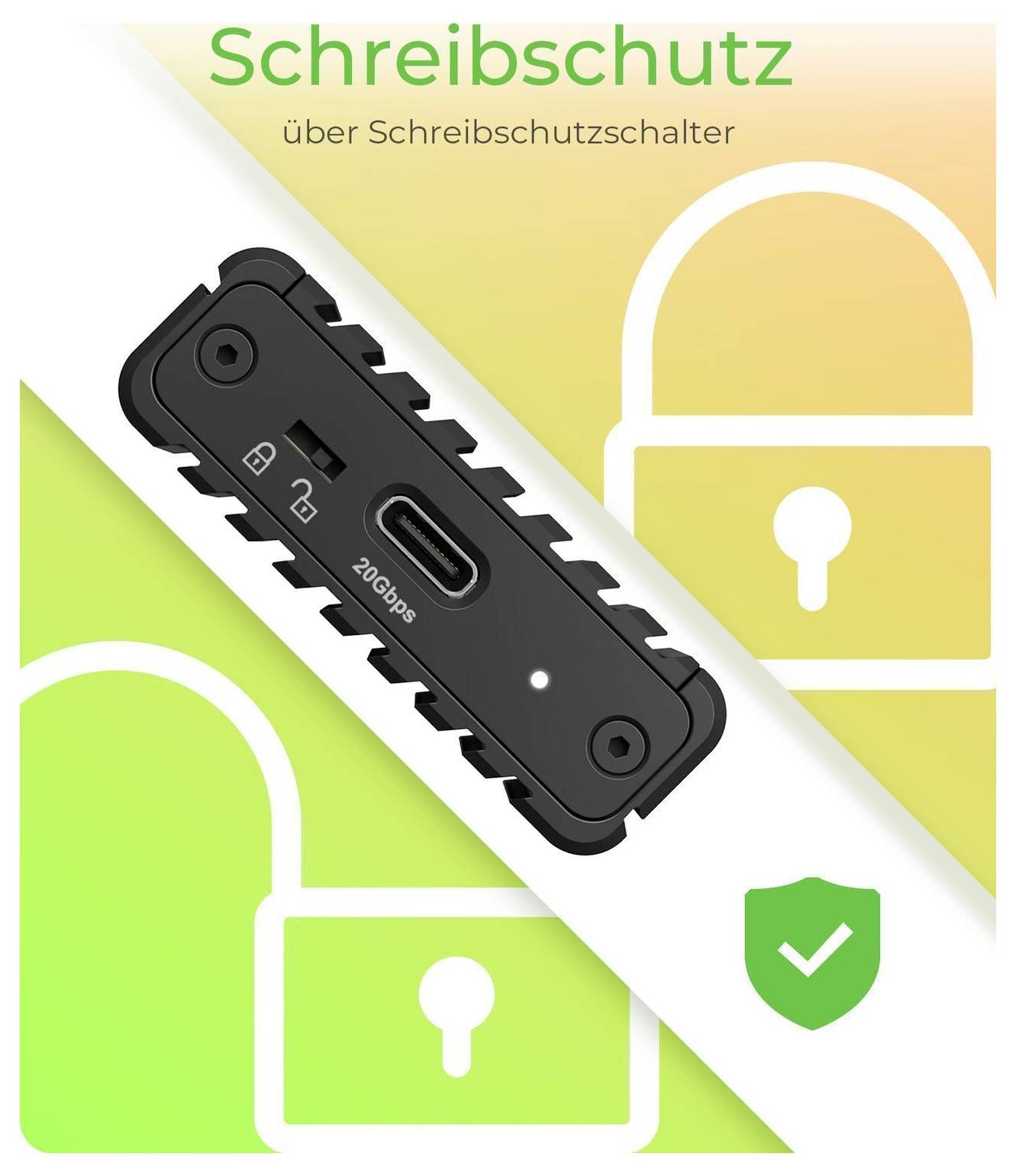

Graphic of a 'Schreibschutz' write-protect switch adapter, showing a black 20Gbps device with lock icons and shield, indicating storage protection.

Product image of a striped aluminum enclosure labeled 'ICY BOX' with the text 'Aluminiumgehäuse in Premiumqualität' on a soft background.

Promotional graphic of a USB Type-C laptop connection, labeled 'Gen 2x2 mit bis zu 20 Gbit/s' and 'USB 3.2 Gen 2x2', highlighting 20 Gbit/s transfer speed.

1/8

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

13 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 29.40 / piece)

€ 29.40

plus VAT.

Report legal concerns

M.2 NVMe SSD casing via USB 3.2 2x 2nd Gen type C®

Highlights & Details

Tool-free design

Technical specifications

JMS586A chipset
Socket M-Key
Cooling: Passive
Cable length: 30 cm

Factory colour: Black

Depth: 50 mm

Height: 16 mm

Width: 110 mm

Compatible with: 2230
2242
2260
2280

HDD connection: M.2 PCIe NVMe

Interfaces: USB C® (USB 3.2 2x 2nd gen)

Material: Aluminium
Plastic

Power supply (LOV): via USB

Storage media features: Write protection

Transfer rate: 20 GBit/s

Weight: 0.145 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3778982 ICY BOX IB-1917M-C32a M.2 SSD enclosure USB C® (USB 3.2 2x 2nd gen) 20 GBit/s M.2 PCIe NVMe 2230, 2242, 2260, 2280 61163

User & Safety Instructions

User & Safety Instructions 3778982 ICY BOX IB-1917M-C32a M.2 SSD enclosure USB C® (USB 3.2 2x 2nd gen) 20 GBit/s M.2 PCIe NVMe 2230, 2242, 2260, 2280 61163

Description

High-speed transmission: Supports USB 3.2 Gen2x2 with transmission speeds of up to 20 Gbps for efficient computing.

Write protection: Contains a write protection function for increased data security.

Tool-free design: Enables quick and easy installation of M.2 NVMe SSD without the need for additional tools.

Effective heat dissipation: Contains a heat transfer pad for passive cooling and optimal SSD performance.

LED indicator: Has an LED indicator for clear status updates during operation.

This text is machine translated.

Features

Supports USB 3.2 2x 2nd Gen with a transfer rate of up to 20 Gbps
• Write protection switch

Scope of delivery

1x IB-1917M-C32a
1x USB-Type-C®-to-Type-C® cable
2x Rubber attachment
1x heat conduction pad
1x user manual

Hints

Backward compatible to USB 2.0.

System requirements

Windows®
MacOS ®
