Buy ICY BOX IB-RD3720-CU3 RAID casing No. of HDDs (max.): 2 x 2.5 inch, 3.5 inch

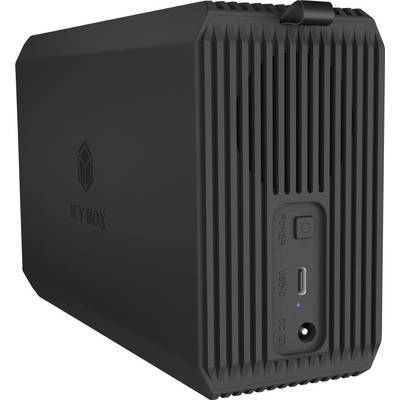

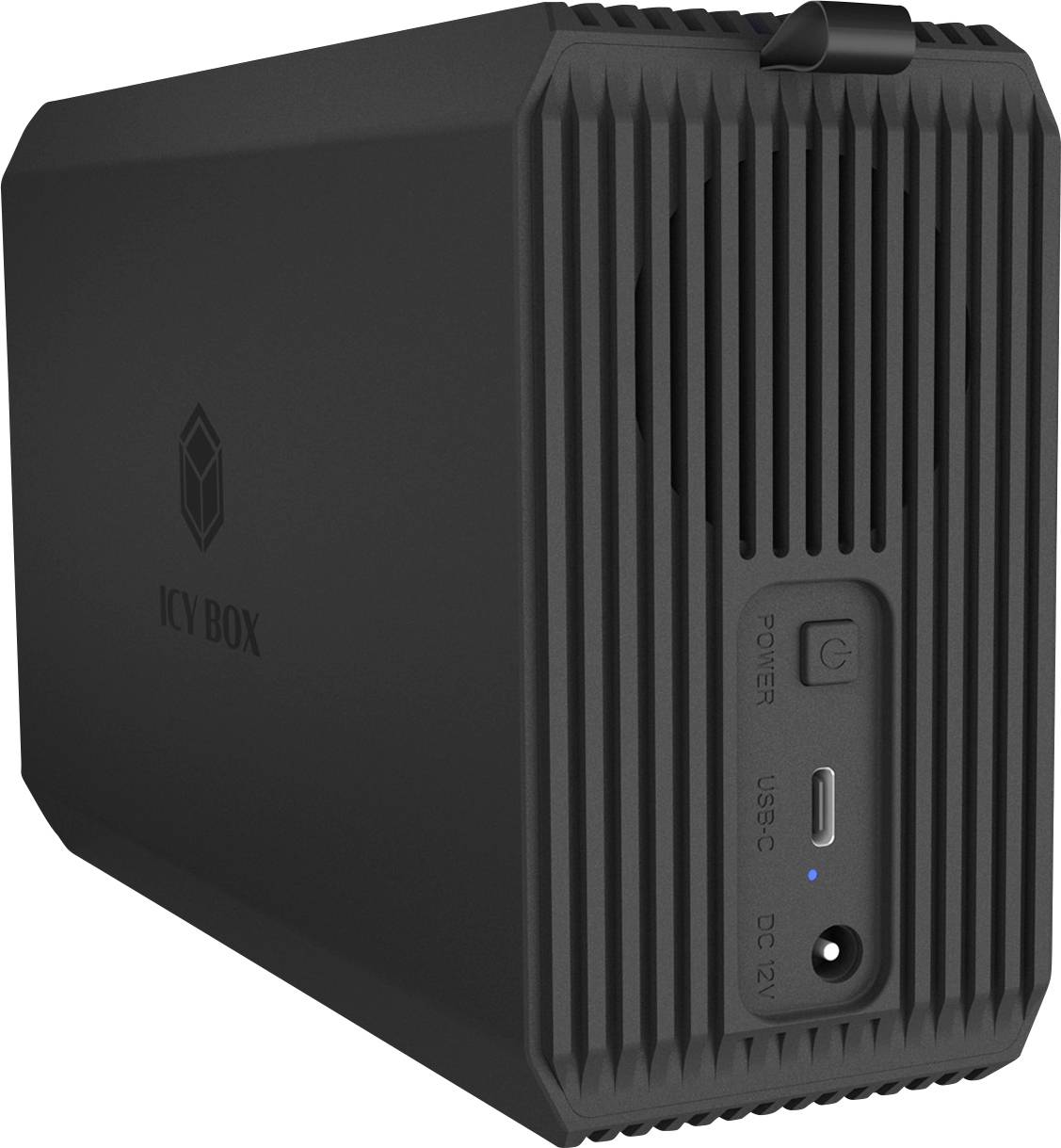

Black ICY BOX device with vertical front vents, power button, USB-C port, and DC 12V input on the front panel.

Advertisement for ICY BOX storage enclosure with the headline 'Speichere alles' and 'Bis zu 60 TB', showing a dual-bay drive box, media icons, and capacity claims for HDD/SSD up to 60 TB.<br>

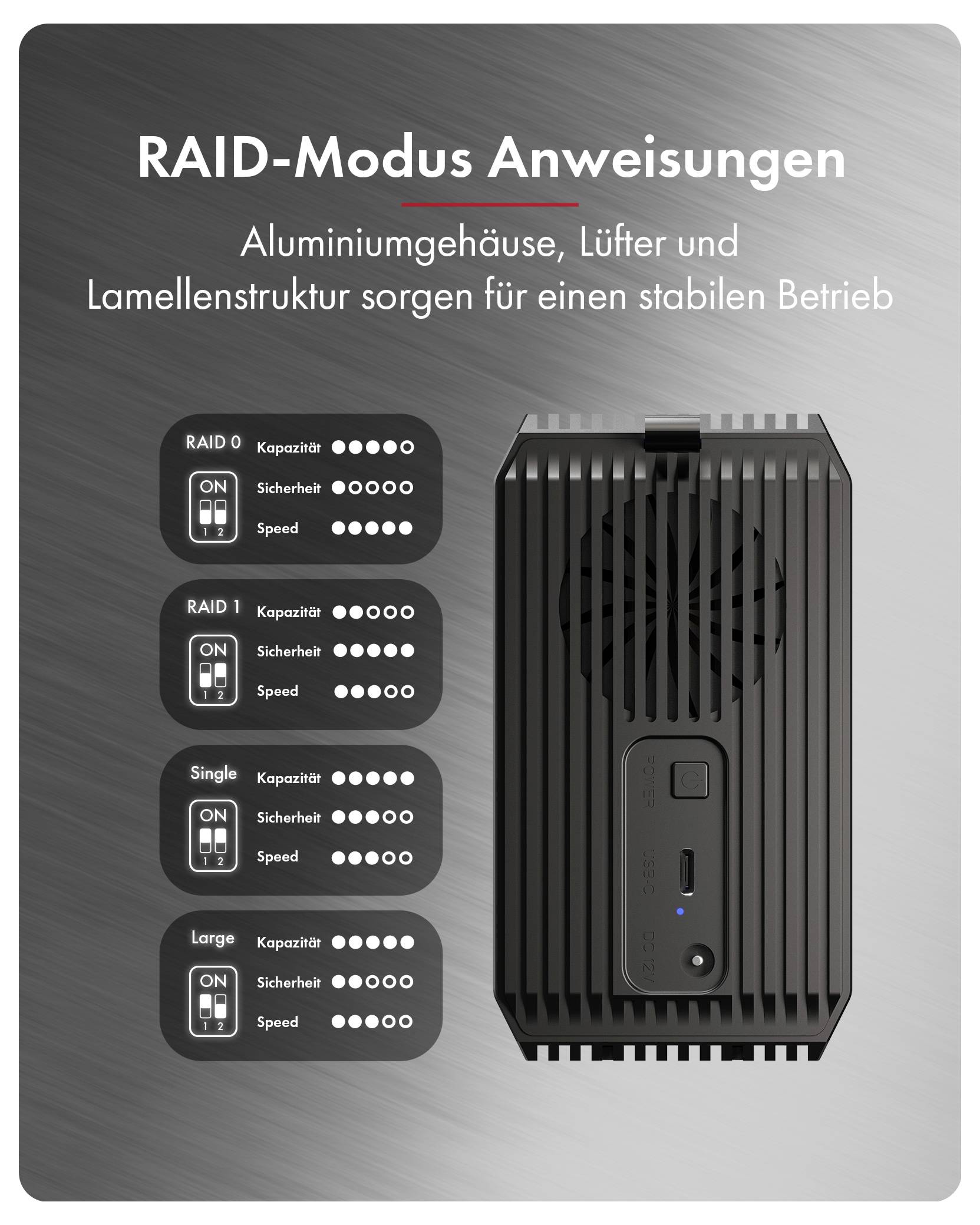

German RAID setup guide showing four modes—RAID 0, RAID 1, Single, and Large—with capacity, security, and speed ratings beside a vented device illustration.<br>

Promotional graphic of a device with airflow and heat lines, labeled 'Optimierte Wärmeregulierung'; text says integrated fan and aluminum housing provide reliable cooling and stability.

German ad showing a small external drive connected to a monitor, promoting 'Schnelle und stabile Leistung mit 5 Gbps' for fast file transfer on modern devices.

German promo graphic showing broad system and drive compatibility: no drivers needed, plug and play; supports 3.5 in SATA HDD, 2.5 in SATA HDD and SSD; macOS, Windows, Linux and Chrome OS.

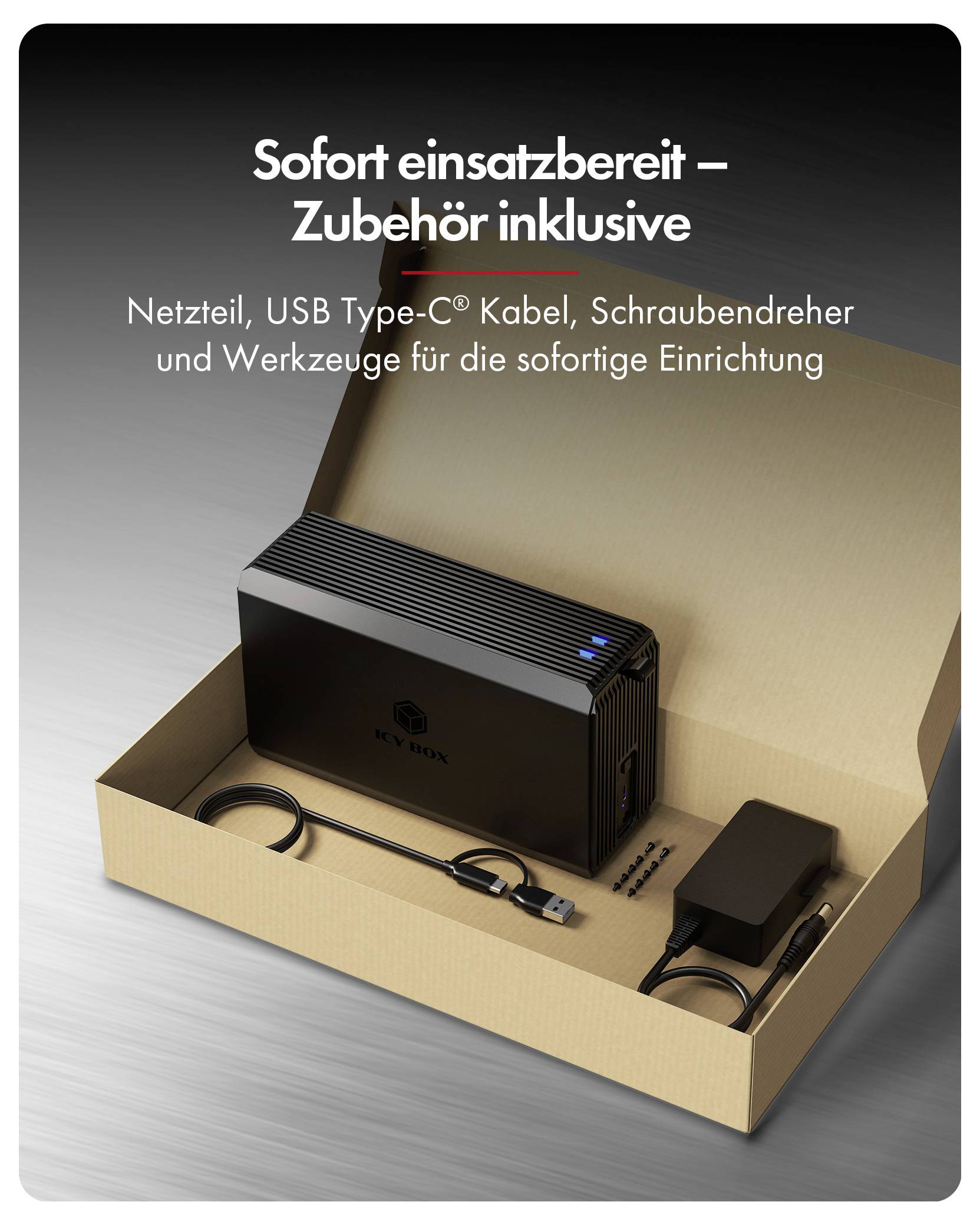

Cardboard kit box with a black device, power adapter, USB-C cable, screws, and tools; text says 'Ready to use immediately – accessories included' in German.<br>

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€ 47.05

plus VAT.

Only 9 Piece(s) available

Report legal concerns

RAID system for 2-bay 2.5"/3.5" SATA HDD/SSD

Highlights & Details

Supports 2x 2.5"/3.5" HDD/SSD
Host connection USB 3.2 Gen 1 Type-C® with up to 5 Gbps
RAID mode DIP switch for RAID 0/1/SINGLE/LARGE
Supports SATA III, backward compatible with SATA II.
Built-in 50x50 mm fan for optimum heat conductivity
LED display for power, read & write (blue), error (red)
Including AC 100-240 V/12 V/4 A power supply

Technical specifications

Colour, black
Transmission rate: Up to 5 Gbps
Plug & Play: Yes
JMS561 chipset
Cooling: 50x50 mm fan
Cable length: 100 cm
LED: Operation
Power supply 12 V/4 A
DRIVE INTERFACE SATA II, SATA III.
Drive Capacity: Up to 30 TB
Connection to host computer: USB 3.2 Gen 1 Type-C®
Operating keys: Yes
Hot Swap: Yes

Depth: 65 mm

Height: 117 mm

Width: 200 mm

Suitable for HDD size: 2.5 inch
3.5 inch

No. of HDDs (max.): 2 x

Suitable for: 2.5 inch
3.5 inch

Material (details): Aluminium

Weight: 0.786 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3778968 ICY BOX IB-RD3720-CU3 RAID casing No. of HDDs (max.): 2 x 2.5 inch, 3.5 inch

User & Safety Instructions

User & Safety Instructions 3778968 ICY BOX IB-RD3720-CU3 RAID casing No. of HDDs (max.): 2 x 2.5 inch, 3.5 inch

Description

Store everything, up to 60 TB
This RAID system is designed for large storage requirements and supports two 3.5-inch or 2.5-inch drives with a total capacity of up to 60 TB. Ideal for backups, multimedia projects and data-intensive workflows.

Instructions for RAID mode
Easily configure your preferred RAID settings: RAID 0, RAID 1, SINGLE or LARGE via the built-in DIP switch. Flexible options allow you to balance performance and data protection."

Advanced heat regulation
Fitted with a 50 x 50 mm fan the device provides for optimum operating temperatures even at high load. This ensures stable performance and extends the life of the drives."

Fast and stable performance with 5 Gbps
The USB 3.2 Gen 1 Type-C® interface offers transmission speeds of up to 5 Gbps Perfect for fast and reliable processing of large files."

Broad system and drive compatibility
Compatible with 2.5-inch and 3.5-inch SATA HDDs or SSDs and supports SATA III backward compatibility for SATA II drives. Works seamlessly across multiple setups and operating systems."

This text is machine translated.

Features

RAID 0/1/SINGLE/LARGE

Scope of delivery

1X IB-RD3720-CU3
1x USB-Type C® to Type C®/A cable (100 cm)
1x Screwdriver
10x screws
1x tool for RAID switch
1x 12 V-/4 A power supply
1x user manual

Hints

Up to 60 TB

System requirements

Windows®
MacOS ®
Linux
A free USB Type-C® or Type-A port on your PC
