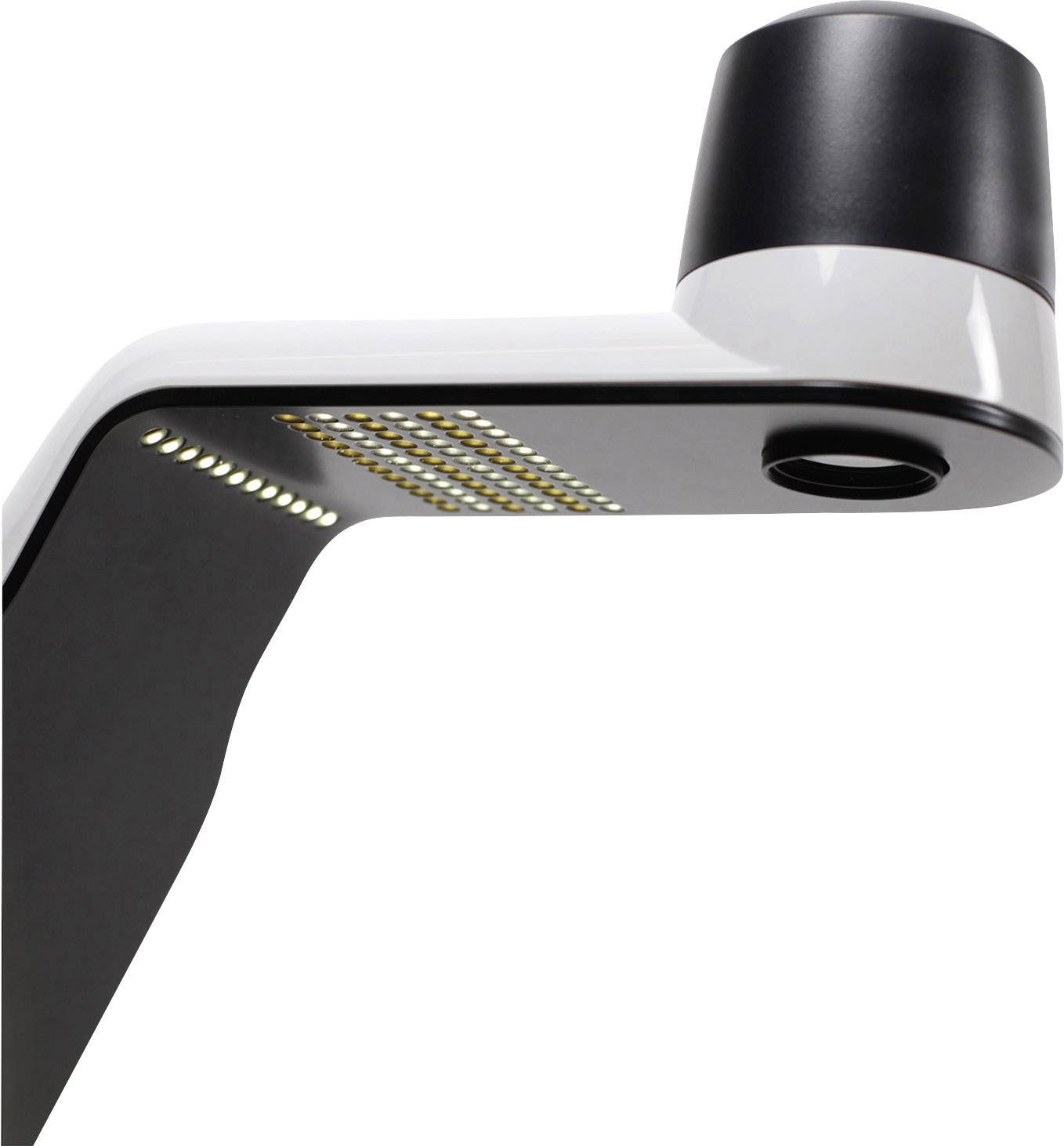

Buy Ideal Tek TEK-SCOPE-PLUS Microscope camera 46 x Transmitted light

Ideal Tek TEK-SCOPE-PLUS Microscope camera 46 x Transmitted light-0

Ideal Tek TEK-SCOPE-PLUS Microscope camera 46 x Transmitted light-1

Ideal Tek TEK-SCOPE-PLUS Microscope camera 46 x Transmitted light-2

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 3,200.84 / piece)

€ 3,200.84

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

FHD desk optical inspection system TEK-SCOPE-PLUS

Just PLUG & PLAY – Complete solution
ERGONOMIC
Longer working distances - 310 mm
Auto focus
Remote controller
Save images directly on USB stick
Ethernet connection
ESD SAFE
Adjustable focus
Digital Zoom ON/OFF
LED lights - built-in
Measurement & drawing capabilities (software)

Technical specifications

Resolution: FHD 1920 x 1080
Sensor: 1.2/8’’
Frame rate: 60 Hz
Output: DisplayPort / USB

Product type: Microscope camera

Optical magnification (min.): 1.5 x

Optical magnification (max.): 46 x

Digital zoom (min.): 47 x

Digital zoom (max.): 460 x

Lighting type: Transmitted light

Bulb type: LED (monochrome)

Operating voltage: 12 V

Factory colour: White

Dim: (L x W x H) 450 x 170 x 370 mm

Length: 450 mm

Width: 170 mm

Height: 370 mm

Weight: 4.5 kg

Documents & Downloads

Datasheet

Datasheet 2204914 Ideal Tek TEK-SCOPE-PLUS Microscope camera 46 x Transmitted light

User & Safety Instructions

User & Safety Instructions 2204914 Ideal Tek TEK-SCOPE-PLUS Microscope camera 46 x Transmitted light

Description

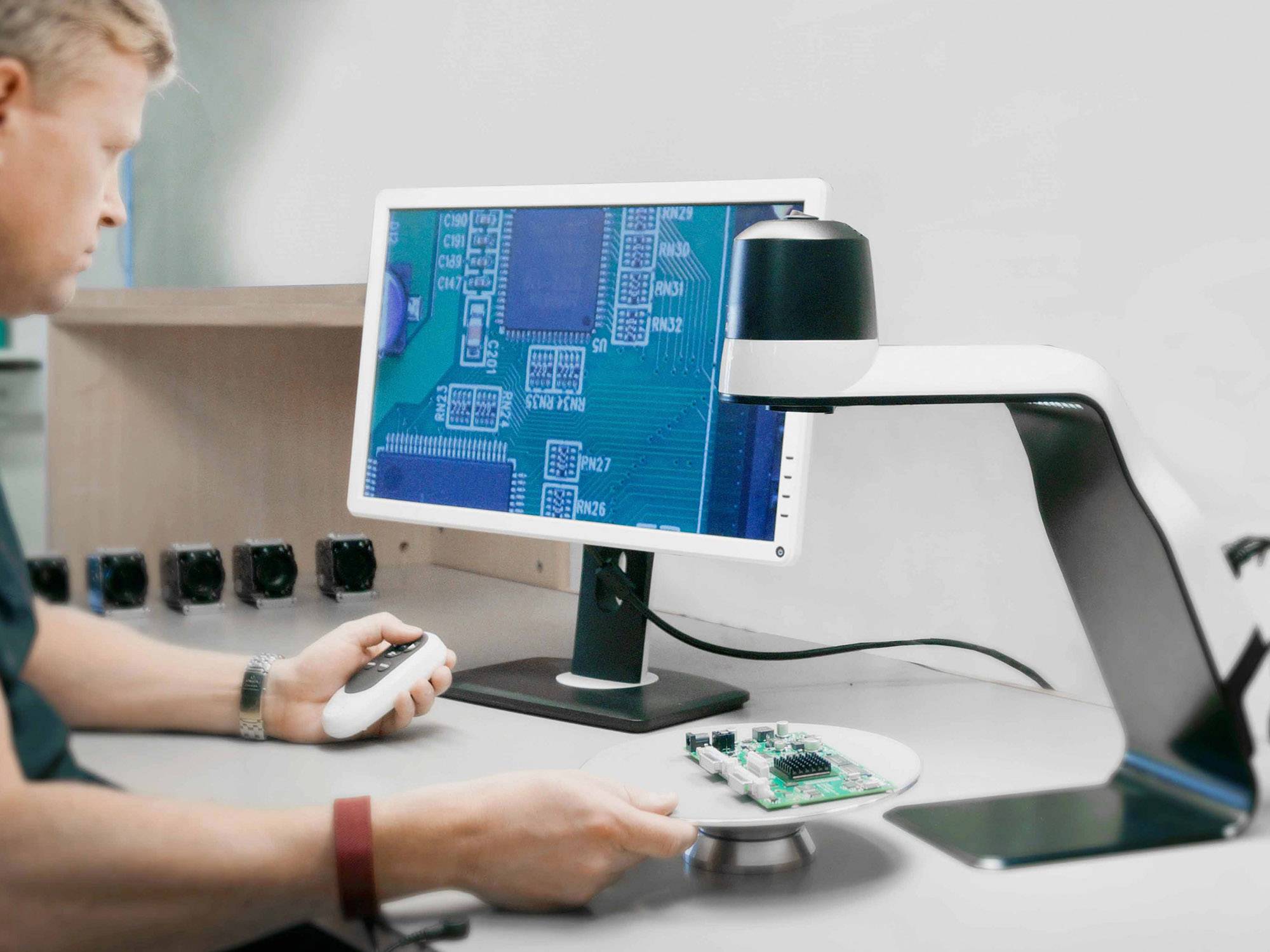

Ideal-tek’s TEK-SCOPE PLUS auto focus FHD camera provides optical magnification of 46x (27” monitor), and digital magnification up to 460x (92x recommended - 27’’monitor).
TEK-SCOPE PLUS produces high quality distortion free up to 1080p FHD images with no delay and with excellent depth of field.
