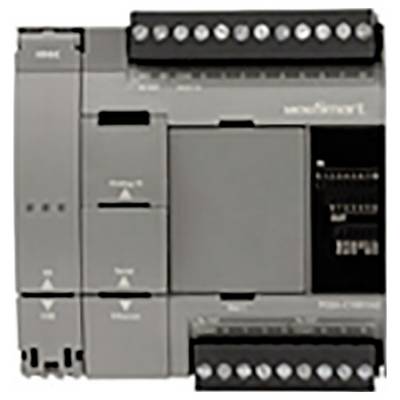

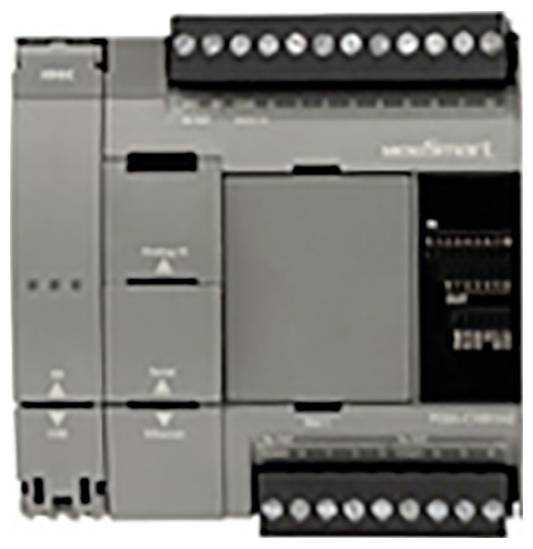

Idec FC6A-C16P1CE FC6A Series CPU module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 231.09 / piece)
€
Only 7 Piece(s) available
Highlights & Details
MicroSmart FC6A-series
- ModBUS
Technical specifications
- Manufacturer part #
FC6A-C16P1CE
- Type
FC6A Series
- Dim
(L x W) 95 mm x 90 mm
- Length
95 mm
- Width
90 mm
- No. of analogue inputs
1
- No. of digital inputs (max.)
8
- No. of transistor outputs (max.)
8
IP20
- Interfaces
Mini B USB plug
Ethernet
SD card slot
- Series
FC6A
- Operating voltage
24 V DC
- Min. operating voltage
20.8 V DC
- Resolution
10 bit
- Permanent current
0.5 A
- Program memory
384 kB
- Fitting type (details)
Top hat rail, direct
- Operating voltage
20.8 - 28.8 V DC
- Max. operating voltage
28.8 V DC
- Interference suppression
IEC/EN61131-2, Zone B compatibility
- Max. ambient temperature
-25 °C
- Min. ambient temperature
65 °C
- Product type
CPU module
Documents & Downloads
Datasheet
Datasheet 3395409 Idec FC6A-C16P1CE FC6A Series CPU module 24 V DC
User & Safety Instructions
User & Safety Instructions 3395409 Idec FC6A-C16P1CE FC6A Series CPU module 24 V DC
Description
Transistor 24VDC for CPU 16 In-/Output Source
This text is machine translated.
This text is machine translated.
Scope of delivery
- Plug, battery with holder, connection cable analogue input
System requirements
- min Windows 10 PC
