Buy Idec FT2J-7U22RAF-B FT2J-7U22RAF-B PLC console

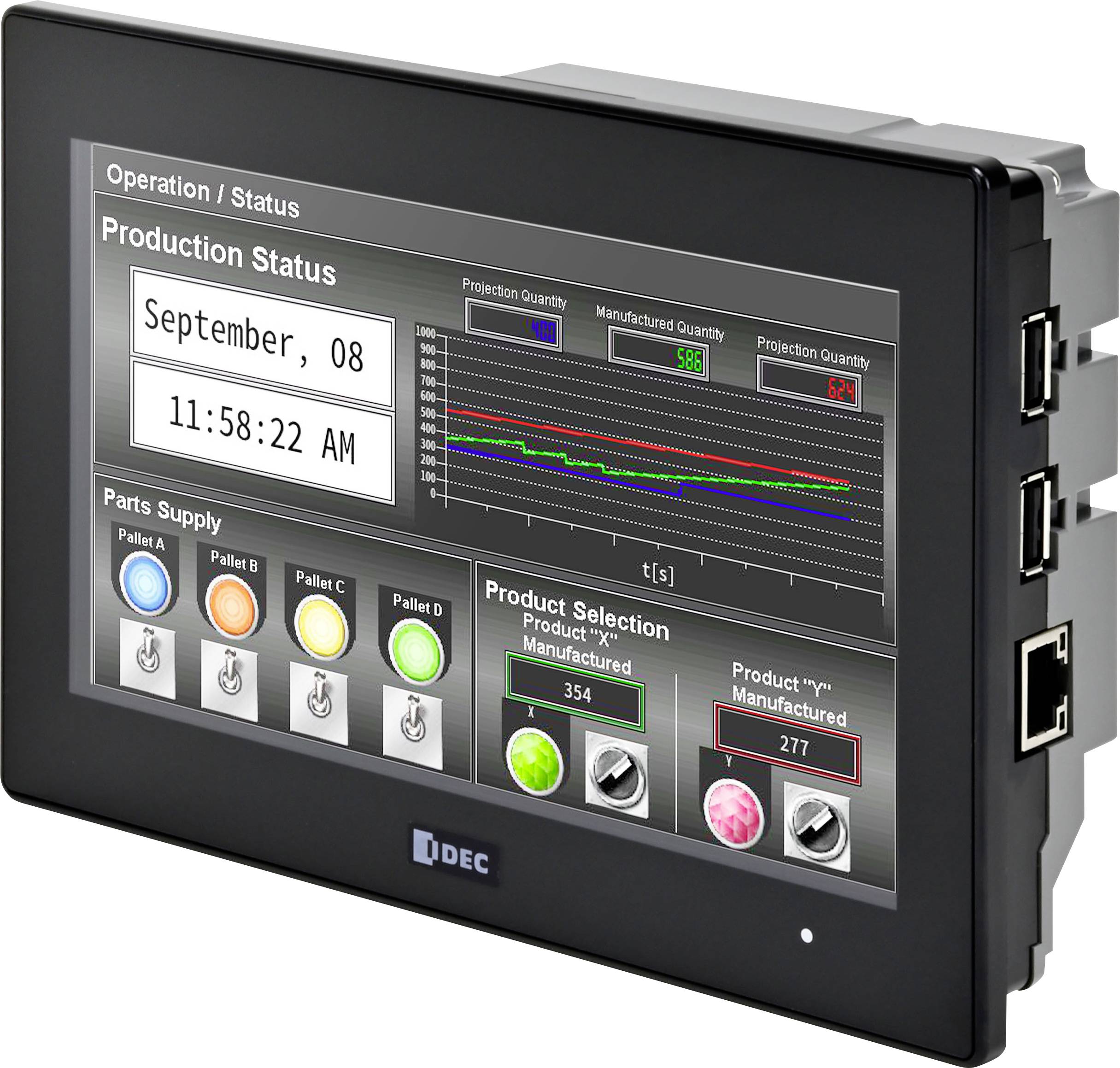

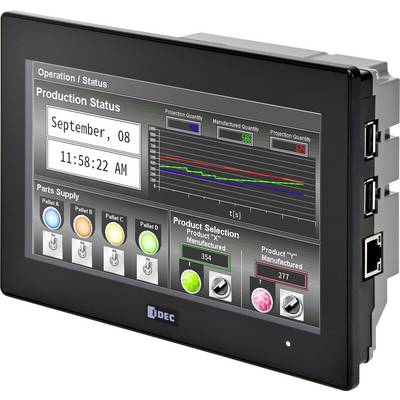

Touchscreen display showing 'Production Status' with date, time, graph of production and manufactured quantity over time, and control buttons.

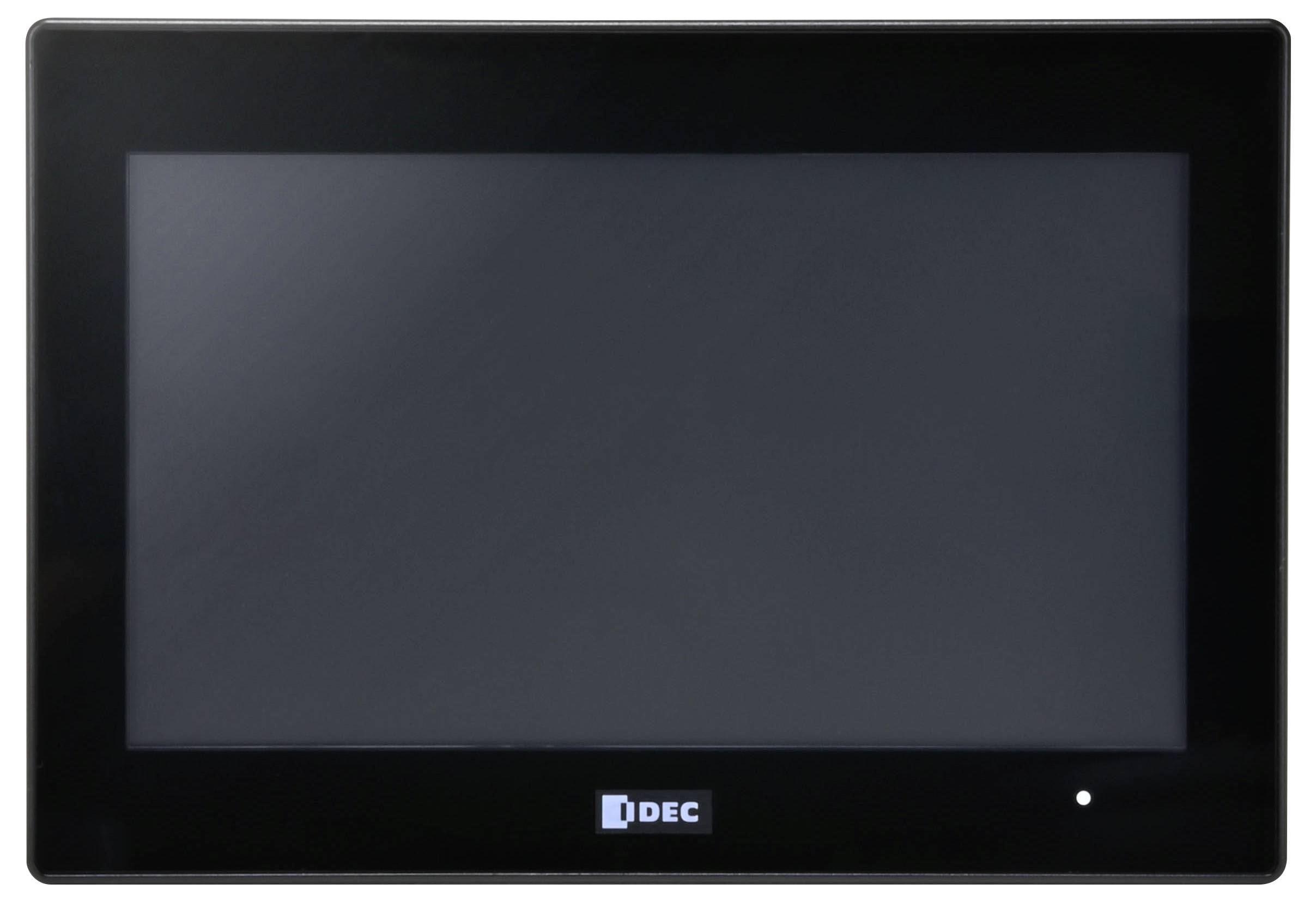

A black Idec touch panel screen with a blank display, minimalistic design, and a small LED light indicator at the bottom right.

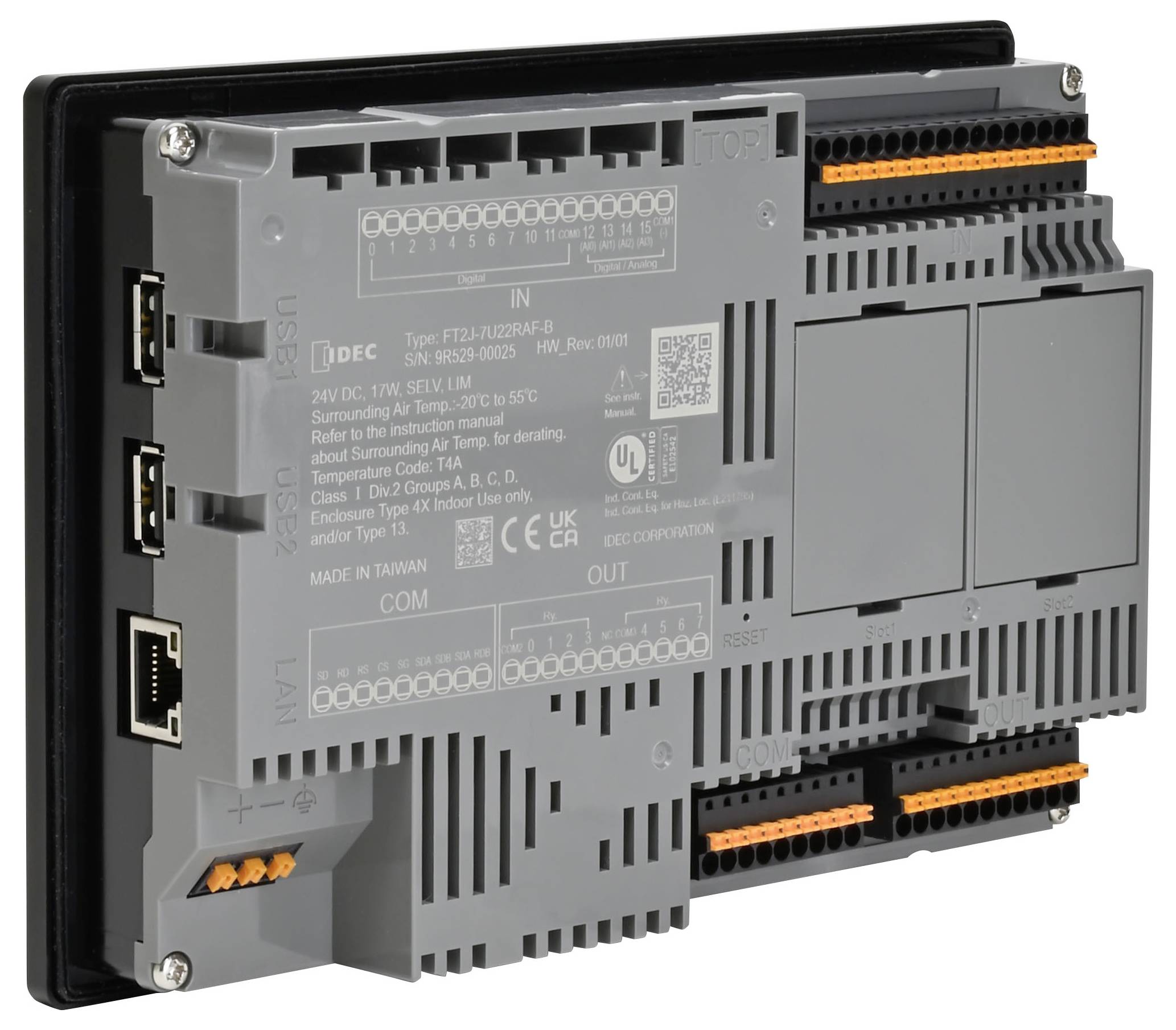

A close-up image of an industrial electronic device with multiple ports and detailed technical information imprinted on its surface.

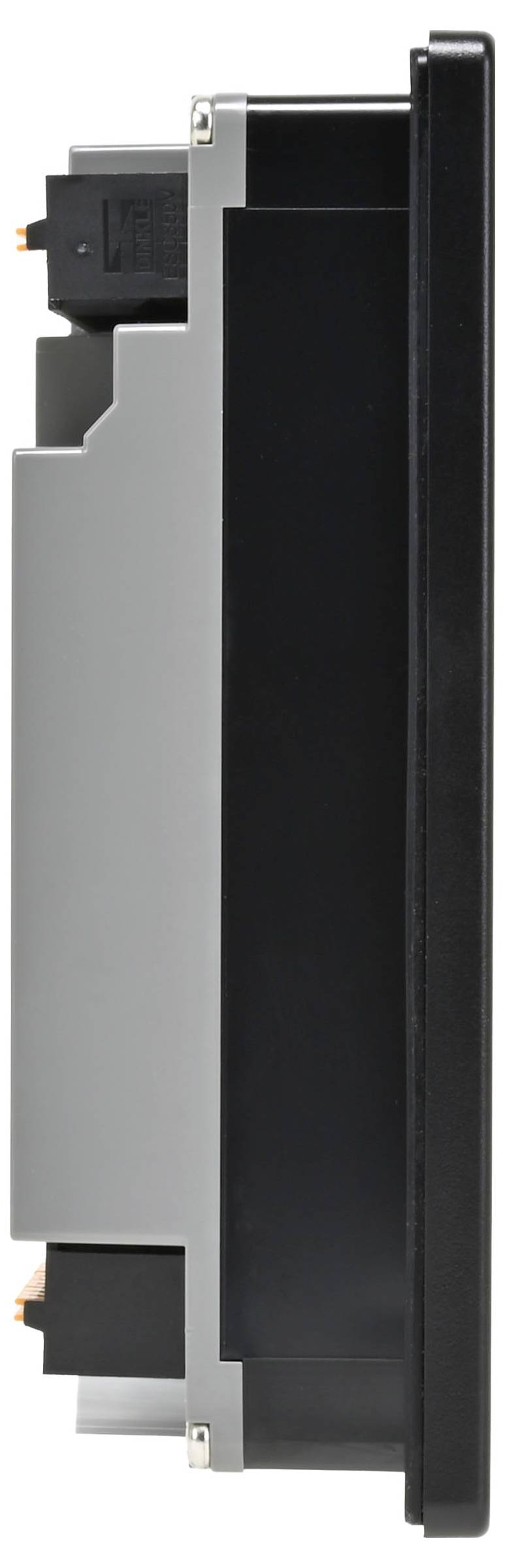

Side view of a gray and black electronic device, likely a printer cartridge, showing its connectors and rectangular shape.

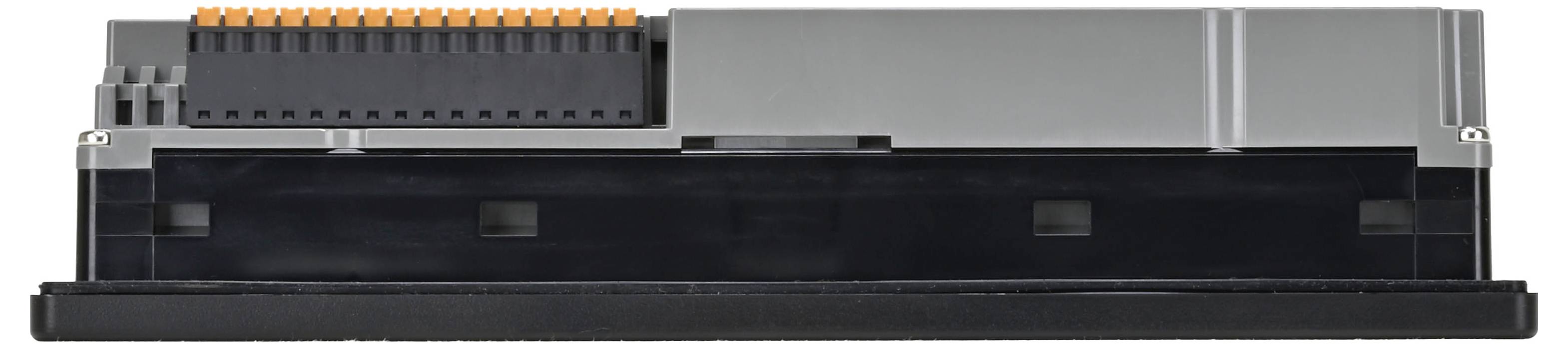

A close-up image of an electrical component with an orange connector on top, set against a plain grey and black background.

1/5

Datasheet (PDF)

Fast track dispatch on Thu, 9 Jul

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 424.37 / piece)

€ 424.37

plus VAT.

Report legal concerns

Highlights & Details

FT2J control with user interface

Space-saving compact design
Large display
Time-saving and easy wiring
Environmentally friendly
Extensive control functions
High visibility, clear visualization
Excellent resistance to environmental influences (degree of protection: IP66F, IP67F)
Extensive communication interfaces
IoT-compatible

Technical specifications

Sink-output (NPN)

Type: FT2J-7U22RAF-B

Manufacturer part #: FT2J-7U22RAF-B

: IP66
IP67

Content: 1 pc(s)

Display: Yes

Product type: PLC console

Documents & Downloads

Datasheet

Datasheet 3530701 Idec FT2J-7U22RAF-B FT2J-7U22RAF-B PLC console

User & Safety Instructions

User & Safety Instructions 3530701 Idec FT2J-7U22RAF-B FT2J-7U22RAF-B PLC console

Description

- Type: Sink output (sink, NPN transistor).
- Operation: The output switches the load to ground (negative pole of the supply voltage).

Application: Typically used when the load (such as a relay or indicator light) is connected to the positive supply voltage (source) and the transistor in the controller closes the circuit to ground.

This text is machine translated.

Features

Display: 7" TFT color LCD, resolution 800 x 400 pixels.
Function: HMI and PLC/PLC integrated (all-in-one solution).
Voltage supply: 24 V DC
Digital I/O: Inputs: 14 points (sink/source configurable) / Outputs: 6 transistor outputs (the difference is in type).
Analogue I/O 2 analogue outputs
Communication: Ethernet, RS232C, RS422/485, USB.
Degree of protection: High environmental resistance (IP66F, IP67F, TYPE 4X/13 – depending on the thickness of the plate).
