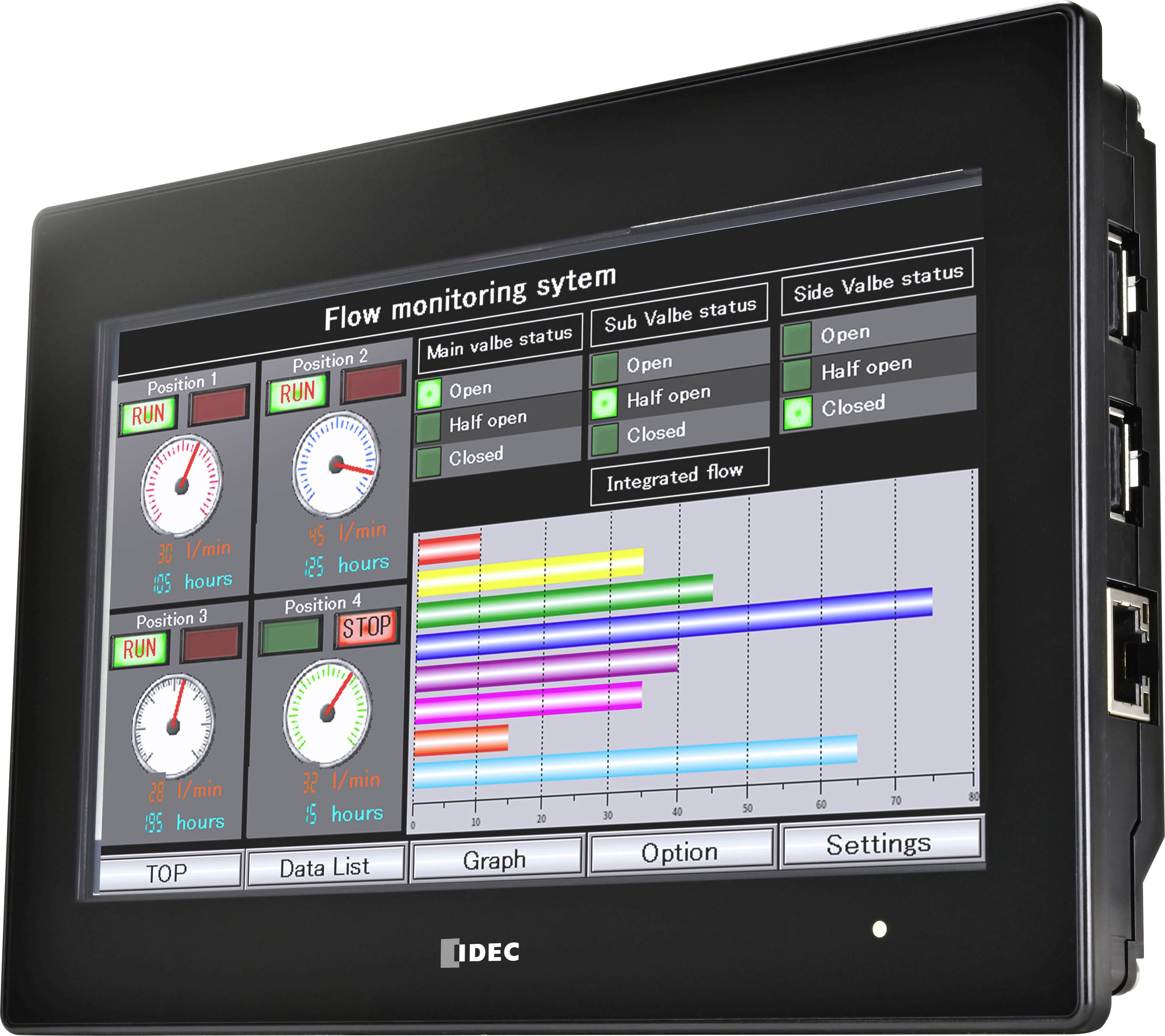

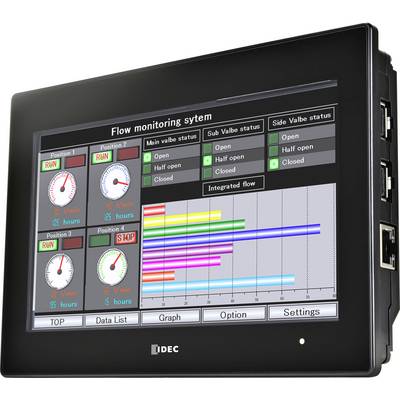

Idec HG2J-7UT22TF-B HG2J-7UT22TF-B Industrial display
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Highlights & Details
HG2J 7' touchscreen with projected capacitive technology
- 800 x 480 high resolution
- 50,000 hours of backlight life
- 500 cd/m² brightness
- Extreme operating temperature from -20 to +60 °C.
- Remote access, FTP, email, mobile APP, and custom web page
- Supports 4 protocols simultaneously
- This text is machine translated.
Technical specifications
- Type
HG2J-7UT22TF-B
- Manufacturer part #
HG2J-7UT22TF-B
- Content
1 pc(s)
- Display
Yes
- Product type
Industrial display
Documents & Downloads
Datasheet
Datasheet 3530703 Idec HG2J-7UT22TF-B HG2J-7UT22TF-B Industrial display
User & Safety Instructions
User & Safety Instructions 3530703 Idec HG2J-7UT22TF-B HG2J-7UT22TF-B Industrial display
Description
Features
- Product type: Pure HMI (operator panel), no integrated PLC/PLC.
- Display: 7 inch TFT color LCD.
- Touch technology: PCAP (Projected Capacitive) touch screen.
- Enables multi-touch and is less sensitive to water drops (self-capacitance technology).
- Resolution 800 x 480 pixels (high resolution for this display size).
- Brightness: High brightness of approximately 500 cd/m².
- Temperature range: Extremely wide operating temperature range from -20 °C to +60 °C.
- Long life: Long backlight life (typical 50,000 hours).
- Communication: Ethernet, serial ports (RS232C, RS422/485) and USB.
- Networking features: Supports up to 4 communication protocols simultaneously.
- Remote access: Supports remote access, FTP, e-mail and mobile apps (mobile APP, custom web page).
- Protection class: High degree of protection IP66F/IP67F (and type 4X/12/13) for use in harsh environments.
