Buy Idec Laser one-way light barrier SA1E-LTP3-2M SA1E-LTP3-2M Dark-ON, Light-ON, Trimmer 1 pc(s)

Black rectangular sensor with cable connection, used for detecting objects in automated or industrial applications.

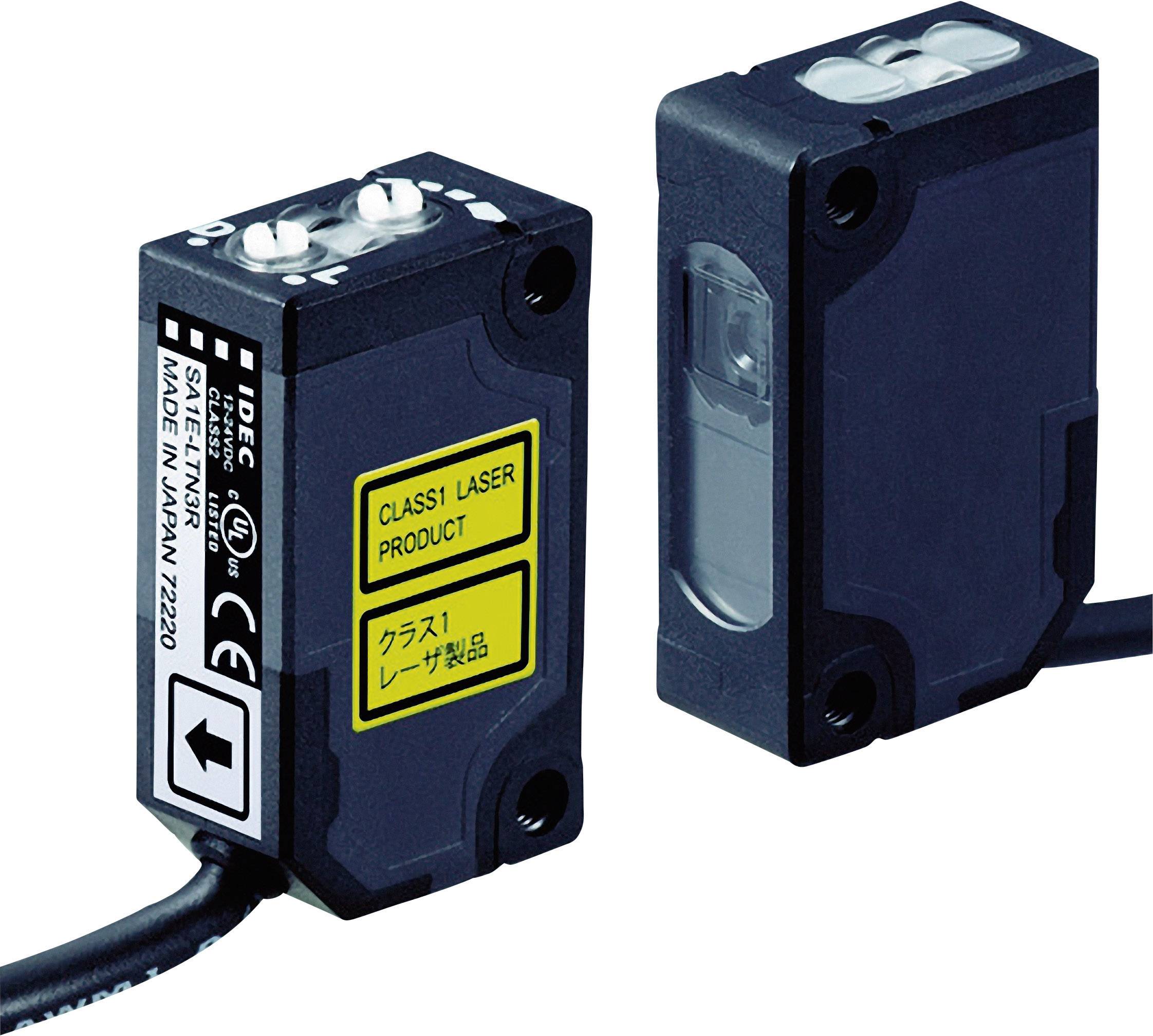

Two black electronic sensors with cables, the label showing 'CLASS 1 LASER PRODUCT'. They are designed for precise measurements.

1/2

Product type

Laser one-way light barrier

Functions

Dark-ON

Light-ON

Trimmer

Max. operating voltage

30 V DC

Connector

Cable, open end

Type

SA1E-LTP3-2M

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 273.11

-52 %

€ 130.24

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Attachment: 2 x thread M3

Product type: Laser one-way light barrier

Type: SA1E-LTP3-2M

Functions: Dark-ON
Light-ON
Trimmer

Operating voltage: 30 V DC

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 250 µs

Contact type: 1 PNP

Outputs: PNP

Switching frequency: 4 kHz

Connector: Cable, open end

Cable length: 2.00 m

Transmitter type: SC laser red

Light emission: axial

: 30 m

: IP67

Min. temperature: -10 °C

Max. temperature: +55 °C

Width: 10.8 mm

Height: 32.7 mm

Depth: 19.5 mm

Dim: (W x H x D) 10.8 x 32.7 x 19.5 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 507808 Idec Laser one-way light barrier SA1E-LTP3-2M SA1E-LTP3-2M Dark-ON, Light-ON, Trimmer 1 pc(s)

User & Safety Instructions

User & Safety Instructions 507808 Idec Laser one-way light barrier SA1E-LTP3-2M SA1E-LTP3-2M Dark-ON, Light-ON, Trimmer 1 pc(s)

Description

With the laser light barrier SA1E-L can be very small objects in fastest processes can be detected. This is indicated by the especially small laser beam and the extremely short response time of only 250 µs. The aligning of the optical axis is parallel to the axis of the escaping through the housing and visible red laser beam makes it easier, which saves time during installation. The operating mode light or dark-switching is provided by a switch on the device is set and the PNP transistor output can be up to 100 mA at 30 V/DC. With the potentiometer, the sensitivity can be set.
