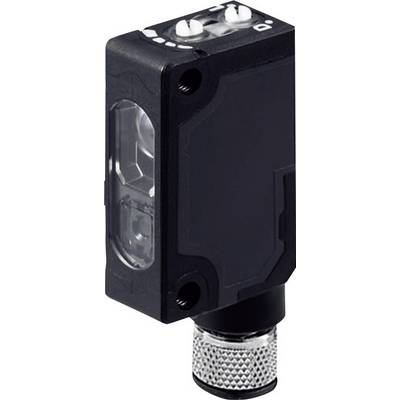

Idec Laser retroreflective sensor SA1E-LBP3C SA1E-LBP3C Background suppression 1 pc(s)
EAN:
Part number:
Item no:
Product type
Laser retroreflective sensor
Functions
Background suppression
Max. operating voltage
30 V DC
Connector
M8 (4-pin)
Type
SA1E-LBP3C
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 235.29
-41 %
€ 138.65
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Attachment: 2 x thread M3
- Product type
Laser retroreflective sensor
- Type
SA1E-LBP3C
- Functions
Background suppression
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
250 µs
- Outputs
PNP
- Connector
M8 (4-pin)
300 mm
IP67
- Min. temperature
-10 °C
- Max. temperature
+55 °C
- Width
10.8 mm
- Height
32.7 mm
- Depth
19.5 mm
- Dim
(W x H x D) 10.8 x 32.7 x 19.5 mm
- Content
1 pc(s)
- Range (min.) (open area)
20 mm
Documents & Downloads
Datasheet
Datasheet 507813 Idec Laser retroreflective sensor SA1E-LBP3C SA1E-LBP3C Background suppression 1 pc(s)
User & Safety Instructions
User & Safety Instructions 507813 Idec Laser retroreflective sensor SA1E-LBP3C SA1E-LBP3C Background suppression 1 pc(s)
Description
With the laser light barrier SA1E-L can be very small objects in fastest processes can be detected. This is indicated by the especially small laser beam and the extremely short response time of only 250 µs. The aligning of the optical axis is parallel to the axis of the escaping through the housing and visible red laser beam makes it easier, which saves time during installation. The operating mode light or dark-switching is provided by a switch on the device is set and the PNP transistor output can be up to 100 mA at 30 V/DC. The range can be adjusted with the potentiometer.
This text is machine translated.
This text is machine translated.
Hints
For more information on this SA1E-LBP3C, please refer to its datasheet under 'downloadable documents'
