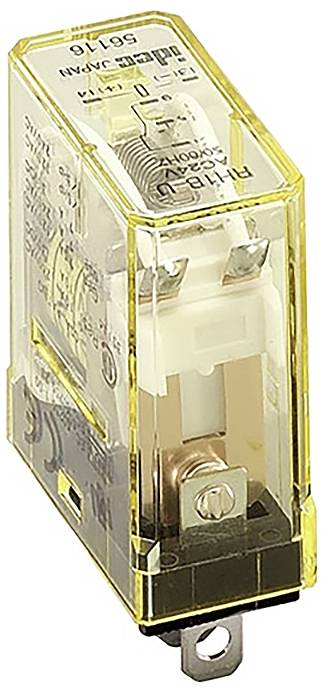

Idec RH Series Industrial relay Nominal voltage: 24 V DC Switching current (max.): 10 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial relay
Nominal voltage
24 V DC
Switching voltage (max.)
220 V AC
30 V DC
Switching current (max.)
10 A
Type
RH Series
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Technical specifications
- Product type
Industrial relay
- Type
RH Series
- Factory colour
Yellow (translucent)
- Min. pick-up voltage
19.2 V DC
- Max. pick-up voltage
26.4 V DC
- Response time
20 ms
- Fall time
20 ms
- Contact material
Silver cadmium oxide
- Nominal voltage
24 V DC
- Switching voltage (max.)
220 V AC
30 V DC
- Switching current (max.)
10 A
- Max. switching capacity
1540 VA
300 W
- Electrical lifespan
At least 200 000 inserts
- Durability
At least 200 000 inserts
- Resistance (coil)
750 Ω
IP20
- Max. temperature
50 °C
- Min. temperature
-25 °C
- Length
27.5 mm
- Width
14 mm
- Height
35.6 mm
- Dim
(L x W x H) 27.5 x 14 x 35.6 mm
- Content
1 pc(s)
- Weight
24 g
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3395469 Idec RH Series Industrial relay Nominal voltage: 24 V DC Switching current (max.): 10 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3395469 Idec RH Series Industrial relay Nominal voltage: 24 V DC Switching current (max.): 10 A 1 pc(s)
Description
SPDT relay with diode
