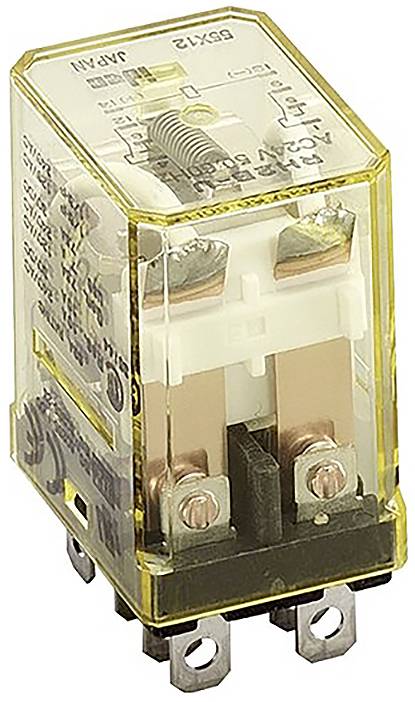

Idec RH Series Industrial relay Nominal voltage: 24 V DC Switching current (max.): 10 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial relay
Nominal voltage
24 V DC
Switching voltage (max.)
220 V AC
30 V DC
Switching current (max.)
10 A
Type
RH Series
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Technical specifications
- Product type
Industrial relay
- Type
RH Series
- Factory colour
Yellow (translucent)
- Min. pick-up voltage
19.2 V DC
- Max. pick-up voltage
26.4 V DC
- Response time
20 ms
- Fall time
20 ms
- Contact material
Silver cadmium oxide
- Nominal voltage
24 V DC
- Switching voltage (max.)
220 V AC
30 V DC
- Switching current (max.)
10 A
- Max. switching capacity
1650 VA
300 W
- Electrical lifespan
At least 500 000 inserts with silver cadmium oxide contact, at least 300 00 free contact with cadmium
- Durability
At least 300 00 inserts
- Resistance (coil)
640 Ω
IP20
- Max. temperature
50 °C
- Min. temperature
-25 °C
- Length
27.5 mm
- Width
21 mm
- Height
35.6 mm
- Dim
(L x W x H) 27.5 x 21 x 35.6 mm
- Content
1 pc(s)
- Weight
37 g
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3395472 Idec RH Series Industrial relay Nominal voltage: 24 V DC Switching current (max.): 10 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3395472 Idec RH Series Industrial relay Nominal voltage: 24 V DC Switching current (max.): 10 A 1 pc(s)
Description
DPDT Relay with indicator and diode
