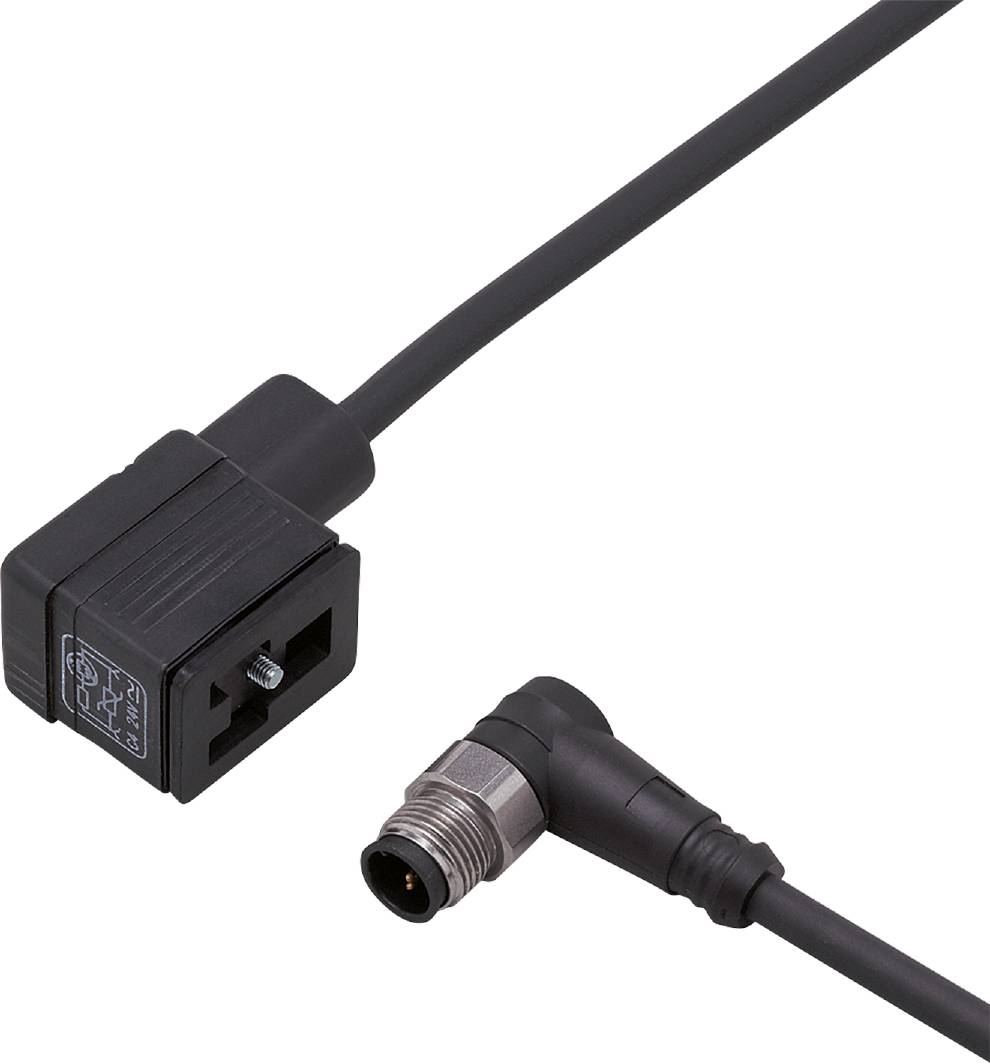

A black rectangular electrical connection cable with an angled adapter; used for connecting devices in industrial applications.

Image similar

A black rectangular electrical connection cable with an angled adapter; used for connecting devices in industrial applications.

Image similar

Packaging type

Piece

Product type

Square connector + molded lead

Type

B standard

Connection

Plug

Number of pins

3

3

Datasheet (PDF)

Deutsch (Deutschland)

ifm Electronic

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm E70143 cable

Reliable connection of valves in the field
High protection class to meet the requirements of harsh industrial ambient
High operating temperature range
Highly visible LED indicates the switching state
Robust rectangular connectors

Technical specifications

Dimensions [mm] 30 x 15 x 39
Display: Switch status 1 x LED, yellow
Ambient temperature-1 [°C]: -25...90
Special feature: Halogen-free
OPERATING VOLTAGE [V] < 24 AC/DC
Weight [g]: 58,700
Cable 2 - Cable: 0.3 m, PUR, halogen-free, black, Ø 5.5 mm; 3 x 0.5 mm² (16 x Ø 0.2 mm)
IP 67 protection
Plug connection: 1.Plug - Pin layout: 0062 - Plug connection: 1 x M12, angled; Coding: A; Grip body: PUR; Lock: 1.4404 (Stainless steel / 316L) / 3.Socket - Pin layout: 0106 - Connector: 1 x valve design B DIN, angled; Grip body: PUR; Lock: 1.4404 (Stainless steel / 316L)
Material grip body: PUR
Cap nut material: 1.4404 (stainless steel / 316L)

Packaging type: Piece

Conductor material: PUR

Product type: Square connector + molded lead

Type: B standard

Connection: Plug

Number of pins: 3
3

Nominal voltage: 24 V DC/AC

Display: LED

Total no. of pins: 3, 3

Weight: 58.700 g

Manufacturer part #: E70143

Content: 1 pc(s)

Cable Ø: 5.5 mm

Cable length: 0.3 m

Cable cross section: 0.5 mm²

Width: 15 mm

Length: 0.3 m

max. cross section: 0.5 mm²

Circuit layout description: incl. yellow LED

Standard: DIN

Max. temperature: 90 °C

Min. temperature: -25 °C

Type: E70143

Features: Halogen-free

Fastening type: M12

UKCA: yes
