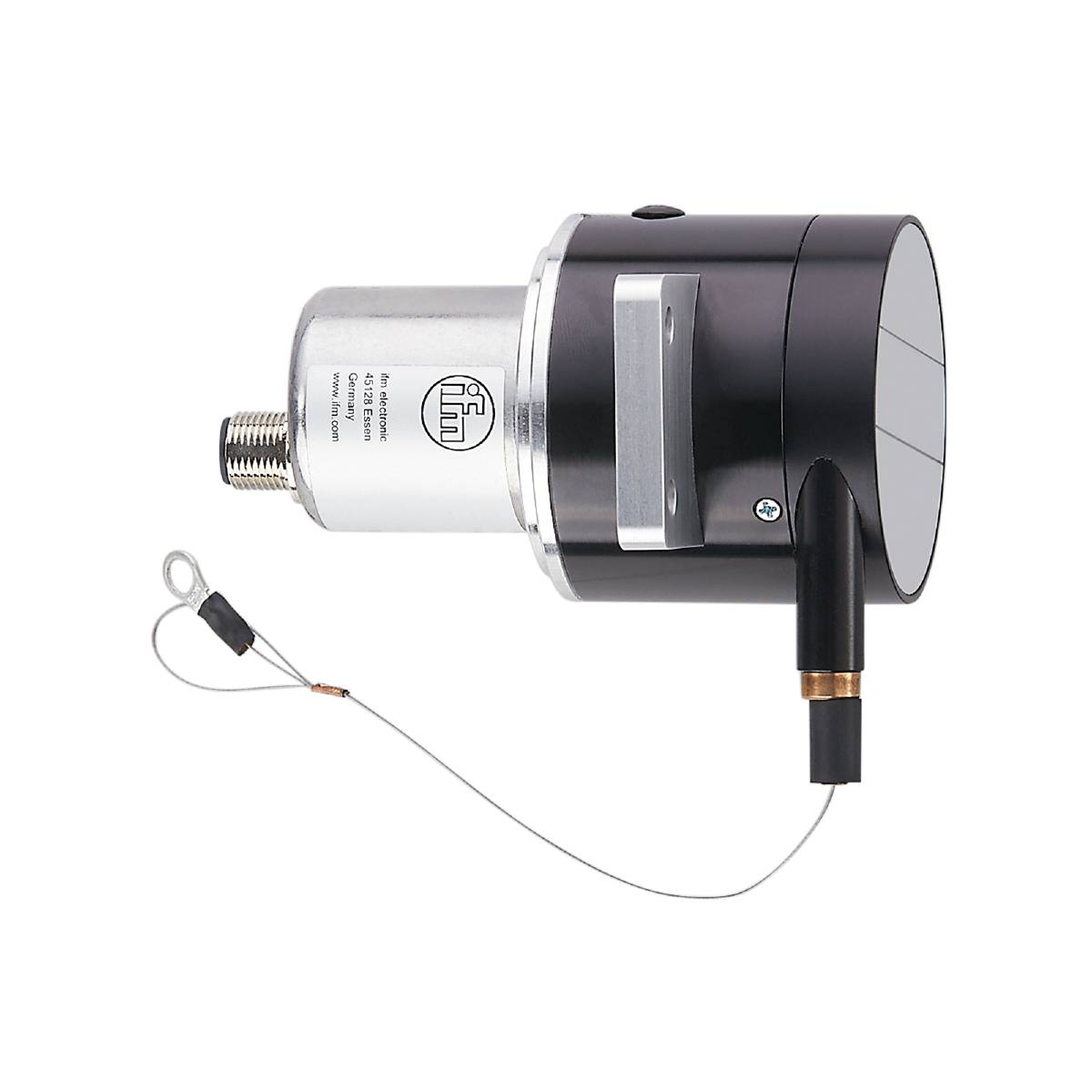

ifm Electronic Absolute Rotary encoder 1 pc(s) RMS001 Magnetic
EAN:
Part number:
Item no:
Product type
Rotary encoder
Model
Absolute
Min. operating voltage
8 V DC
Max. operating voltage
32 V DC
Connector
M12
Datasheet (PDF)
Highlights & Details
Ifm RMS001 cable speed regulator
- Pull-cord encoder
- M12 plug connection
Technical specifications
- Sampling system: Magnetic
- Analog output current [mA]: 4...20
- Number of analog outputs: 1
- Number of inputs and outputs: Number of analog outputs: 1
- Resolution: 8192 steps; 16 revolutions; 17 bit
- Functional principle encoder: Absolute
- Ambient temperature-1 [°C]: -40...85
- Repeatability ± 0.006 % FSO
- Application: Encoder
- Operating voltage [V]: 8... 32 DC
- Settling time [ms]: 32
- Accuracy ± 0.02% FSO
- Analog output accuracy [%]: 0.1
- Weight [g]: 561,000
- Short-circuit protection: Yes
- Storage temperature [°C]: -40...85
- Max. Standby delay time [ms]: 500
- Max. Burden [Ω]: 500
- Max. Measuring length [mm]: 1900
- Max. Permissible relative humidity [%]: 95; (condensation not permitted)
- MTTF: 241
- Parameterization options: Start point; end point; center position
- IP 64 protection (enclosure side IP 65)
- Protection class III
- Cable connection: Ø 5 mm; (eyelet)
- Rope diameter [mm]: 0.45
- Rope drum circumference [mm]: 150
- Plug connection: Pin layout: 0063 - Plug connection: 1 x M12, Axial usable; coding: A
- Current consumption: < 20
- Reverse polarity protection: Yes
- Product type
Rotary encoder
- Type
RMS001
- Model
Absolute
- Technology
Magnetic
- Min. operating voltage
8 V DC
- Max. operating voltage
32 V DC
- Operating voltage
8 - 32 V DC
- Interfaces
Analogue amperage
- Connector
M12
- Orientation (connectors)
Axial
- No. of rotations
16
- Steps per cycle
8192
- Enclosure material
Steel
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP64
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3321667 ifm Electronic Absolute Rotary encoder 1 pc(s) RMS001 Magnetic
User & Safety Instructions
User & Safety Instructions 3321667 ifm Electronic Absolute Rotary encoder 1 pc(s) RMS001 Magnetic
Description
Ifm RMS001 cable speed regulator
