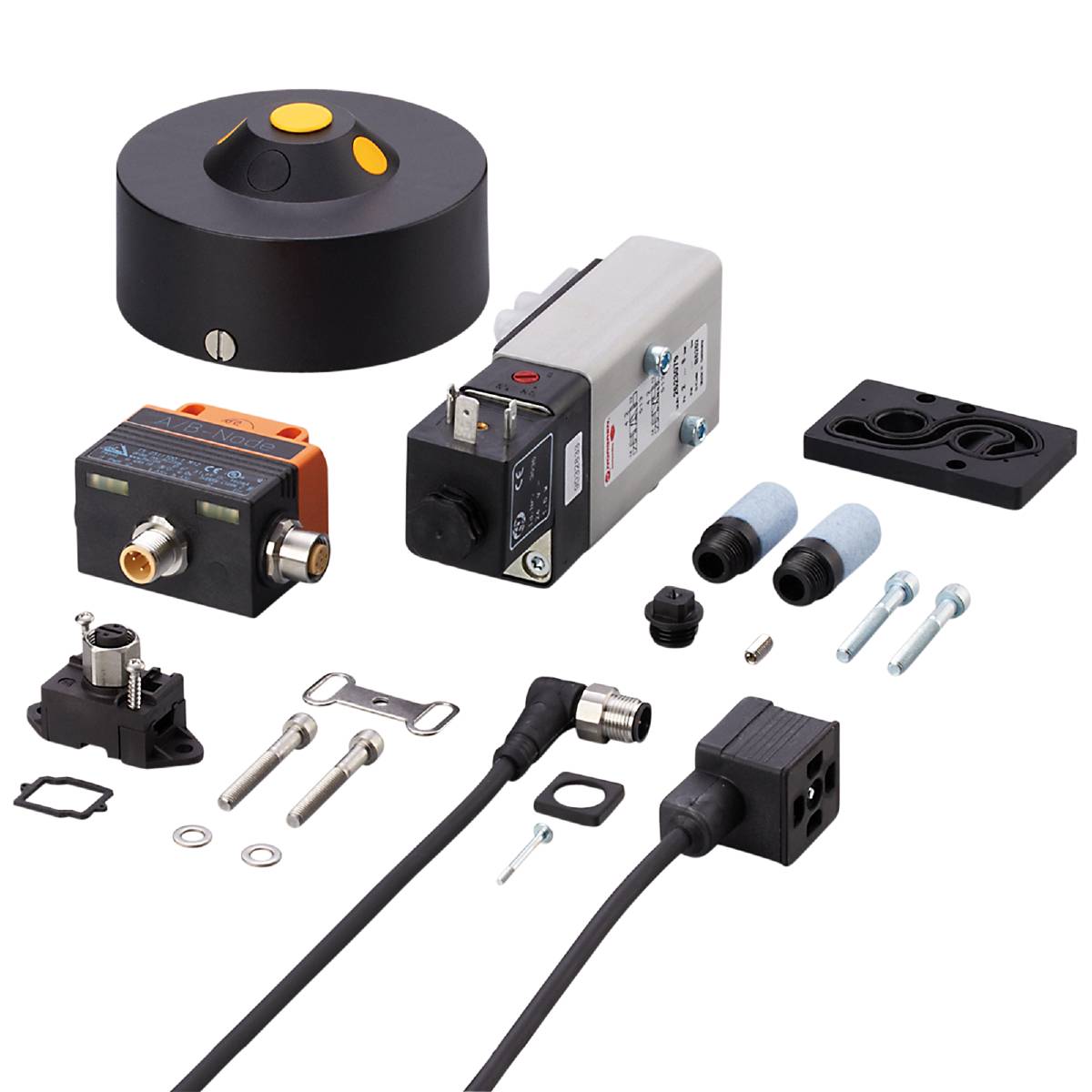

ifm Electronic AC0023 Automation set
EAN:
Part number:
Item no:
Product type
Automation set
Manufacturer part #
AC0023
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
Highlights & Details
Ifm AC0023 Value-Added Pack AS-i for Pneumatic Swivel Drives
- Complete automation set for quick start-up
- To monitor the position of valve flaps
- For reliable feedback of the position at swing drives
- With control and error monitoring of the solenoid valve
- Fast and secure installation with just three screws
Technical specifications
- Number of digital outputs: 1
- Number of digital inputs: 2
- Number of inputs and outputs: Number of digital inputs: 2; number of digital outputs: 1
- AS-i I/O Configuration [HEX]: 7
- AS-i ID code [HEX]: A.E
- AS-i profile S-7.A.E
- AS-i Version 2.1
- Output function PNP
- Operating voltage AUX DC [V]: 26.5...31.6; ("supply class 2" according to cULus)
- Built: Not flush-mounted
- Weight [g]: 1098,500
- Hole pair distance [mm]: 130
- Max. Current consumption from AS-i [mA]: 160
- Switching distance [mm]: 4
- Shaft height of valve operating mechanism [mm]: 30
- Manufacturer part #
AC0023
- Product type
Automation set
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3321260 ifm Electronic AC0023 Automation set
User & Safety Instructions
User & Safety Instructions 3321260 ifm Electronic AC0023 Automation set
Description
Ifm AC0023 Value-Added Pack AS-i for Pneumatic Swivel Drives
