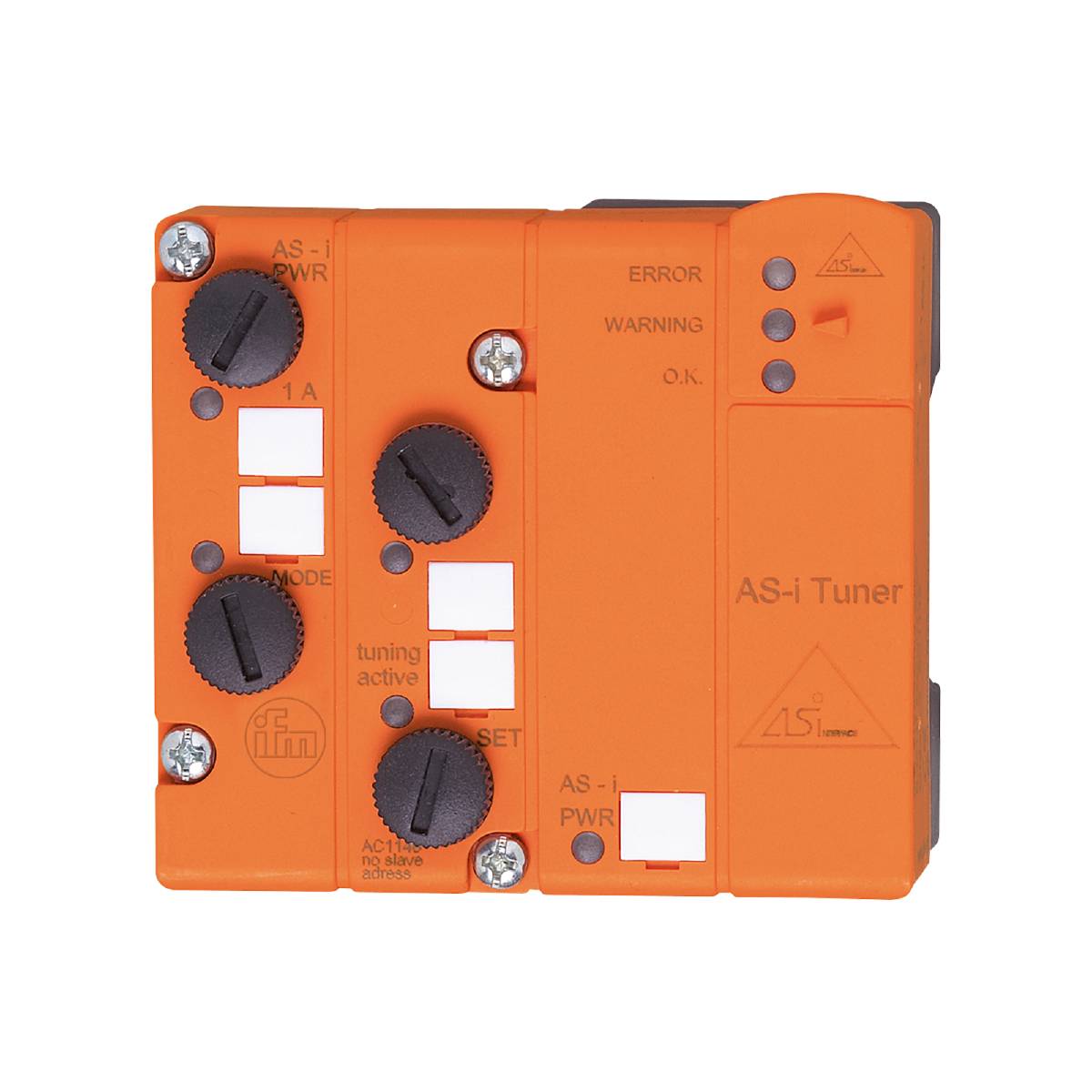

ifm Electronic AC1146 Tester module AC1146 1 pc(s)
EAN:
Part number:
Item no:
Product type
Tester module
Type
AC1146
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
not relevant
Datasheet (PDF)
Highlights & Details
Ifm AC1146 AS-i tuner diagnostic module
- For checking the AS-i network
- For reliable monitoring of the telegram quality
- Highly visible LEDs for indication of communication status and operation
- Extension of cable to further 200 m without additional repeater
- Can be used in any network topology
Technical specifications
- Display: Operation: LED, green; warning: LED, yellow; error: LED, red
- Ambient temperature-1 [°C]: 0...55
- Application: Diagnostics tool for AS-i
- Weight [g]: 199,200
- Pre-assembled connection / terminals: Contact pins for module base, FK:
- Max. Current consumption from AS-i [mA]: 60
- MTTF: 140
- Nominal voltage DC [V]: 26.5...31.6
- IP 67 protection
- Plug connection: Pin layout: 0017 - connector: M12; coding: A.
- Undervoltage monitoring: Yes
- Reverse polarity protection: Yes
- Product type
Tester module
- Type
AC1146
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3321800 ifm Electronic AC1146 Tester module AC1146 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321800 ifm Electronic AC1146 Tester module AC1146 1 pc(s)
Description
Ifm AC1146 AS-i tuner diagnostic module
