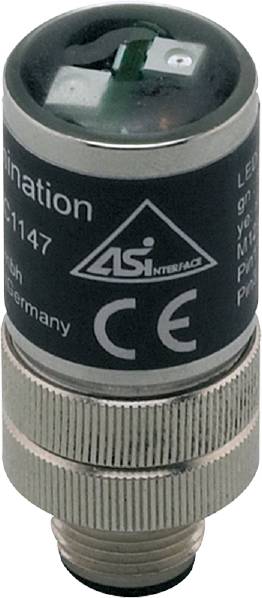

ifm Electronic AC1147 Bus terminator AC1147 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bus terminator
Type
AC1147
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
not relevant
Datasheet (PDF)
Highlights & Details
Ifm AC1147 passive AS-i bus termination
- For the extension of the line without additional repeater
- Can be used in any network topology
- Quick and easy installation with flat cable grip
- For improving the signal quality
- With LED indicator for monitoring supply voltage
Technical specifications
- Dimensions [mm]: Ø 20 / L = 46
- Display: 1 x LED, yellow Voltage AS-i > 18.5 V; : 1 x LED, green Voltage AS-i > 26 V
- Galvanically decoupled Digital output: No.
- Ambient temperature-1 [°C]: -25...70
- Application: Improvement of signal quality
- Electrical version AS-i
- Weight [g]: 45,000
- Storage humidity [%]: > 90; (non-condensing)
- Storage temperature [°C]: -25...70
- Max. Current consumption from AS-i [mA]: 10
- MTTF: 550
- Nominal voltage DC [V]: 26.5...31.6
- IP 67 protection
- Plug connection: Pin layout: 0001 - connector: M12; coding: A.
- Undervoltage monitoring: Yes
- Reverse polarity protection: Yes
- Product type
Bus terminator
- Type
AC1147
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319342 ifm Electronic AC1147 Bus terminator AC1147 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319342 ifm Electronic AC1147 Bus terminator AC1147 1 pc(s)
Description
Ifm AC1147 passive AS-i bus termination
