Buy ifm Electronic AC1226 PSU AC1226 1 pc(s)

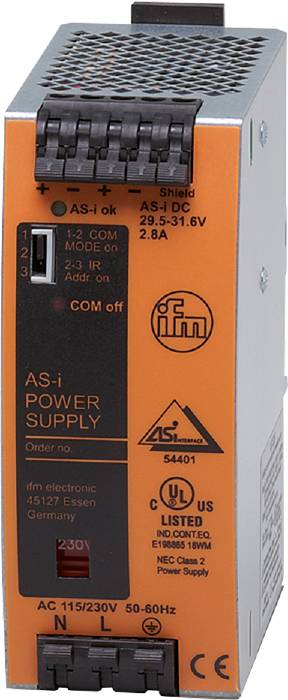

Image similar

Product type

PSU

Type

AC1226

Max. operating voltage

230 V AC

Operating voltage

230 V AC (max)

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Reliable power supply for modules, sensors and actuators
High noise immunity and sufficient power reserves for compensation of current peaks
Safe decoupling of interference from the primary supply
Particularly space-saving design
Low heating of the switch cabinet thanks to Hohem efficiency

Number of output circuits: 1
Display: Function: LED, green light goes out at overload U < 28 V; IR addressing: LED, red
Ambient temperature-1 [°C]: -10...70
AS-i certificate: 54401
Short-circuit protection version: Electronically protected
Output power (permanent) [W]: 85
Output voltage AS-i [V]: 29.5...31.6; (according to PEL; NEC class II)
Output current AS-i [A]: 2.8
DERATING [W/K]: 2 (60...70 °C)
Input voltage range AC [V]: 85...132 / 184...264
External input > protection 6 A.
Weight [g]: 573,500
Integrated data decoupling: Yes
Ready-to-assemble connection / terminals: Cage clamp terminals:
Short-circuit protection: Yes
Max. Standby delay time [ms]: 100
Max. Remaining ripple [mV]: 50
MTTF: 222
Nominal frequency AC [Hz]: 47...63
Nominal voltage AC [V]: 110 / 230
Parallel connection of outputs possible: No.
Protection class IP 20
Series connection of outputs possible: No.
Overload-proof: Yes
Voltage surge protection: Yes (< 55 V)
