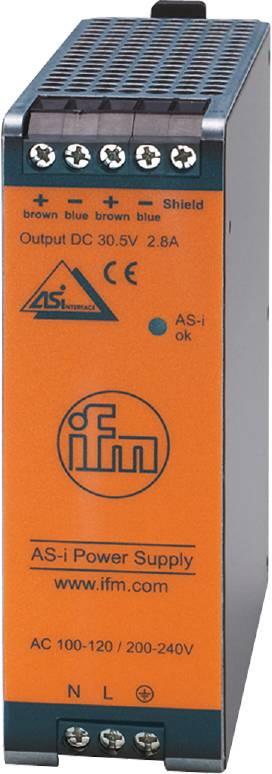

ifm Electronic AC1256 PSU AC1256 1 pc(s)
EAN:
Part number:
Item no:
Product type
PSU
Type
AC1256
Max. operating voltage
230 V AC
Operating voltage
230 V AC (max)
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Ifm AC1256 mains adapter
- Reliable power supply for modules, sensors and actuators
- High noise immunity and sufficient power reserves for compensation of current peaks
- Safe decoupling of interference from the primary supply
- Particularly space-saving design
- Low heating of the switch cabinet thanks to Hohem efficiency
Technical specifications
- Dimensions [mm] 124 x 40 x 120
- Number of output circuits: 1
- Display: AS-i voltage: LED, green
- Ambient temperature-1 [°C]: -25...70
- AS-i certificate: 98701
- Output power (permanent) [W]: 85
- Output voltage AS-i [V]: 30.5; (according to PEL; NEC class II)
- Output current AS-i [A]: 2.8
- Operating voltage [V]: Automatic range switching
- Operating voltage tolerance [%]: 10
- DERATING [W/K]: 0 (60...70 °C)
- Input voltage range AC [V]: 100...120 / 200...240
- Input current (rated voltage 120 V AC / 60 Hz) [A]: 1.44
- Input current (rated voltage 230 V AC / 50 Hz) [A]: 0.86
- Peak switch-on current (nominal voltage 120 V AC / 60 Hz) [A]: 3
- Peak switch-on current (nominal voltage 230 V AC / 50 Hz) [A]: 3
- Switch-on current limitation: Yes
- External input protection ≤ B-10 A / ≤ C-6 A
- Frequency AC [Hz]: 47...64
- Weight [g]: 625,000
- Integrated data decoupling: Yes
- Field ready for connection / terminals: Screw terminals:
- Short-circuit-proof: Yes
- Storage temperature [°C]: -40...85
- Power factor (nominal voltage 120 V AC / 60 Hz): 0.56
- Power factor (nominal voltage 230 V AC / 50 Hz): 0.47
- Max. Standby delay time [ms]: 900
- Max. Remaining ripple [mV]: 50
- Max. Permissible relative humidity [%]: 95; (IEC 60068-2-30)
- Mounting type: Support rail; (TH35 (EN 60715))
- Nominal voltage AC [V]: 110 / 230
- Power outage bridging time (nominal voltage 120 V AC / 60 Hz) [ms]: 98
- Power outage bridging time (nominal voltage 230 V AC / 50 Hz) [ms]: 96
- Parallel connection of outputs possible: No.
- Regenerative resistance [V]: 35
- Protection class IP 20
- Protection class: I
- Series connection of outputs possible: No.
- Overload-proof: Yes
- Overload response: Output current constant
- Voltage surge protection: Yes (< 36 V)
- Power loss (nominal voltage 120 V AC / 60 Hz) [W]: 12.9
- Power loss (nominal voltage 230 V AC / 50 Hz) [W]: 11.6
- Pollution level 2; (IEC 62103: Conductive contamination not permitted)
- Efficiency (nominal voltage 120 V AC / 60 Hz) [%]: 86.9
- Efficiency (nominal voltage 230 V AC / 50 Hz) [%]: 88
- Product type
PSU
- Type
AC1256
- Max. operating voltage
230 V AC
- Operating voltage
230 V AC (max)
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320930 ifm Electronic AC1256 PSU AC1256 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320930 ifm Electronic AC1256 PSU AC1256 1 pc(s)
Description
Ifm AC1256 mains adapter
