Name: ifm Electronic AC2258 AC2258 IO module No. of digital inputs: 4 No. of relay outputs: 4
Brand: ifm Electronic
SKU: 3320175

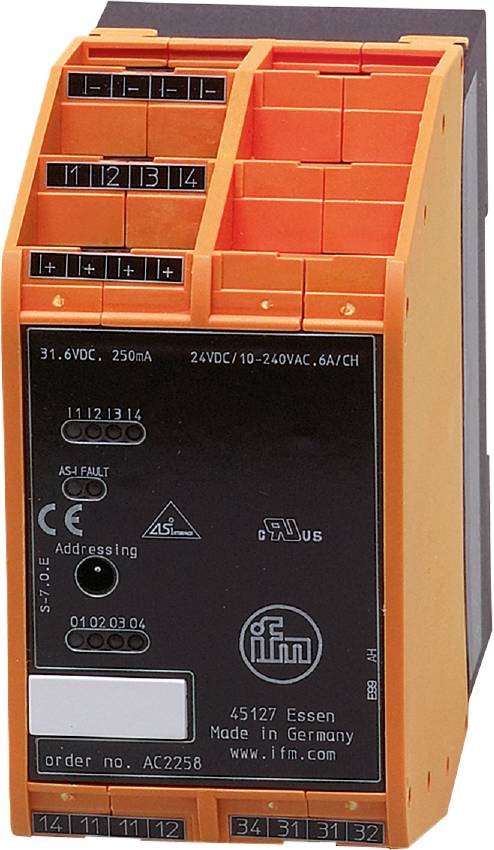

An industrial safety relay module in orange with black control elements and various technical details printed on it.

Image similar

Product type

IO module

No. of relay outputs

Type

AC2258

No. of digital inputs

Control LEDs

Yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm AC2258 AS-i input/output module

For use in switchboards
Easy and fast wiring with spring clamp terminals
Particularly space-saving design
Double terminals for looping through the voltage supply
Highly visible bright LEDs for display of operation, switching status and function

Technical specifications

Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4; number of relay outputs: 4
Number of relay outputs: 4
Display: Switching state: LED, yellow I1...I4, O1...O4; operation: LED, green AS-i; Error: LED, red
Galvanically decoupled Digital output: Yes
Ambient temperature-1 [°C]: -25...60
Application: Switchboard installation
AS-i Addressing: Addressing socket
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: 0.E
As-i Master profile M2; M3; M4
AS-i profile S-7.0.E
AS-i version 2.11; 3.0
Operating voltage [V]: 26.5... 31.6 DC
Input wiring digital inputs: PNP; (Type 2 to IEC 61131-2)
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Extended addressing mode: No.
Weight [g]: 275,700
Ready to assemble connection / terminals: Multi-pin connector:
Short-circuit-proof: No.
Short-circuit resistance of digital inputs: Yes
Max. Height above NN [m]: 2000
Max. Current consumption from AS-i [mA]: 300
max. Current carrying capacity Total inputs [mA]: 200
Max. Permissible relative humidity [%]: 90; (non-condensing)
Mounting type: Rail mounting
MTTF: 279
Switching level HIGH [V]: > 11
Protection class IP 20
Sensor supply of inputs: AS-i
Voltage range AC [V]: 10...240; (All outputs must be supplied with the same voltage.: 2 x 240 AC, same external conductor)
Voltage range DC [V]: 24; (All outputs must be supplied with the same voltage: 2 x 24 DC)
Power supply [V]: 18...30; (DC)
Current carrying capacity Outputs total [A]: 6; (240 V C; 24 V DC; resistive load)
Current carrying capacity per output [mA]: 6000; (resistive load)
Pollution level: 2
Watchdog integrated: Yes
