Name: ifm Electronic AC2451 AC2451 GPI module M12 plug No. of digital inputs: 4
Brand: ifm Electronic
SKU: 3320231

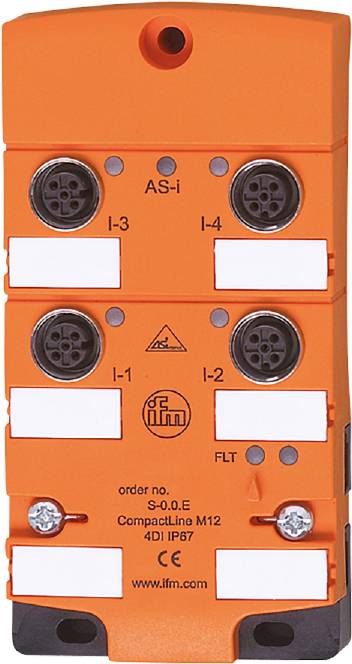

Image similar

Product type

GPI module

Interfaces

M12 plug

Type

AC2451

No. of digital inputs

Control LEDs

Yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Ifm AC2451 AS-i input module

Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4
Display: Switching state: LED, yellow I1...I4; operation: LED, green AS-i; error: LED, red
Ambient temperature-1 [°C]: -25...80
Application: Field mounting
AS-i Addressing: IR addressing possible
AS-i I/O Configuration [HEX]: 0
AS-i ID code [HEX]: 0.E
As-i Master profile M2; M3; M4
AS-i profile S-0.0.E
AS-i version 2.11; 3.0
AS-i certificate: 40501
Operating voltage [V]: 26.5... 31.6 DC
Input wiring digital inputs: PNP; (Type 2 to IEC 61131-2)
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Input current limit [mA]: 15
Extended addressing mode: No.
Weight [g]: 292,000
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -25...80
Max. Height above NN [m]: 2000
Max. Current consumption from AS-i [mA]: 250
max. Current carrying capacity Total inputs [mA]: 200
Max. Permissible relative humidity [%]: 90; (non-condensing)
Module connection: Flat cable
AS-i flat cable can be directly connected
MTTF: 382
Switching level HIGH [V]: > 11
Protection class: IP 67; (when using the flat cable E7400x / E7401x)
Sensor supply of inputs: AS-i
Power supply [V]: 20...30; (DC)
Plug connection: Pin layout: 0017 - connector: M12; coding: A.
