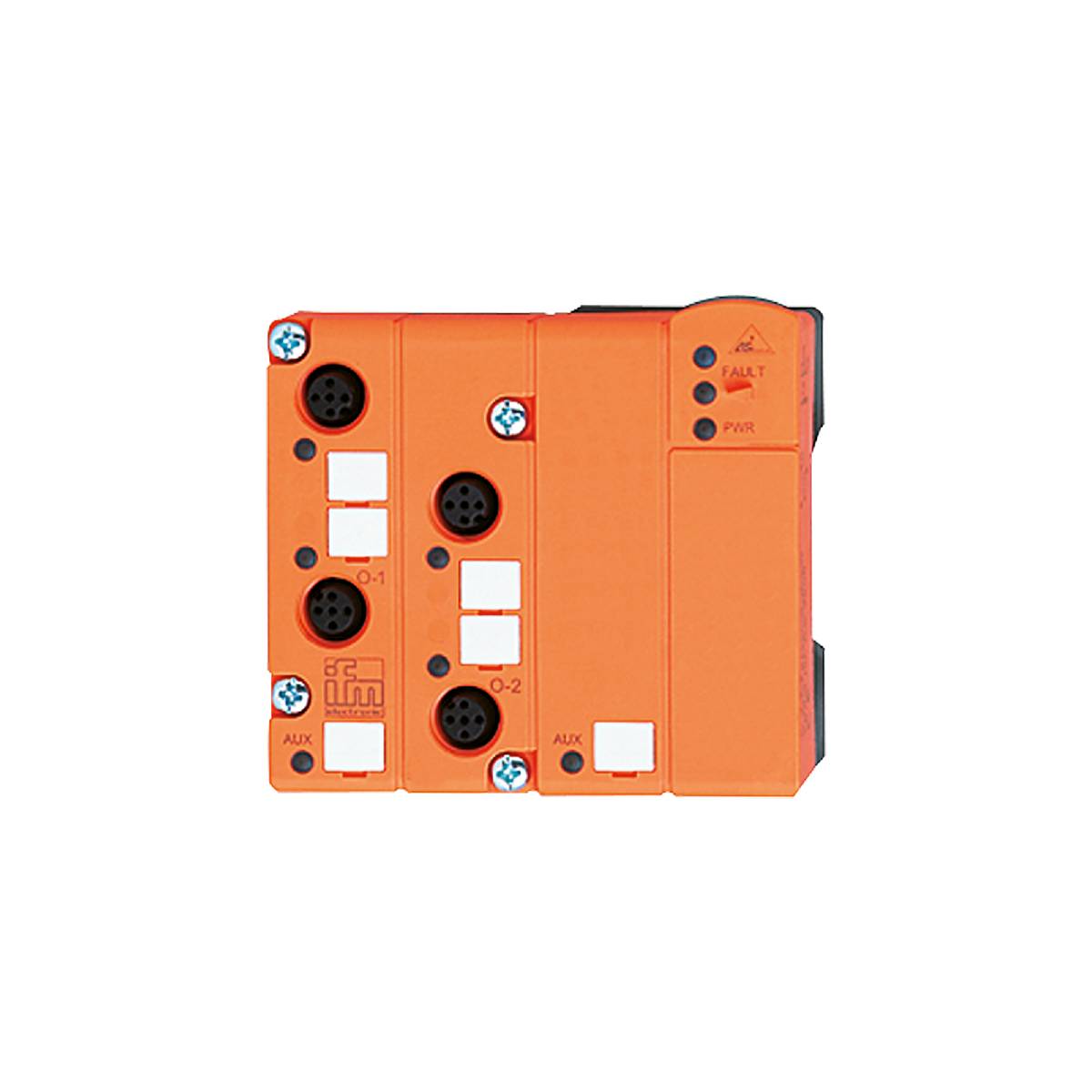

Buy ifm Electronic AC2521 AC2521 GPO module M12 plug

Image similar

Product type

GPO module

Interfaces

M12 plug

Type

AC2521

Control LEDs

Yes

Manufacturer part #

AC2521

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Easy mounting and wiring
Connection of the AS-i flat cable using module subsections
Highly visible, bright LEDs for displaying operation, switching status and errors
High protection class to meet the requirements of harsh industrial ambient
Durable M12 connectors for connecting sensors and actuators

Actuator supply for outputs: AUX
Analog output current [mA]: 0...20
Number of analog outputs: 4; (connection of 3-wire actuators)
Number of inputs and outputs: Number of analog outputs: 4
Display: Analog signal: LED, yellow channels AO1...AO4; operation: LED, green AS-i, AUX; Error: LED, red
Ambient temperature-1 [°C]: 0...70
Tightening torque [Nm]: 0.6...0.8
Application: Field mounting
AS-i Addressing: Addressing socket; IR addressing possible
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: 3.6
As-i Master profile M3; M4
AS-i profile S-7.3.6
Analog output resolution 16 (1 bit = 1 µA)
Operating voltage [V]: 26.5... 31.6 DC
Analog input accuracy [%]: 0.5
Weight [g]: 206,500
Storage temperature [°C]: -20...85
Max. Burden [Ω]: 600
Max. Height above NN [m]: 2000
Max. Current consumption from AS-i [mA]: 24
Max. Power consumption from additional power supply [mA]: 550; (AUX)
Max. Permissible relative humidity [%]: 90; (non-condensing)
Module connection: Flat cable
AS-i interface to FK-E bases
MTTF: 150
IP 67 protection
Plug connection: Pin layout: 0017 - connector: M12; coding: A.
Reverse polarity protection: Yes
Additional power supply [V]: 24...30 DC (AUX)
