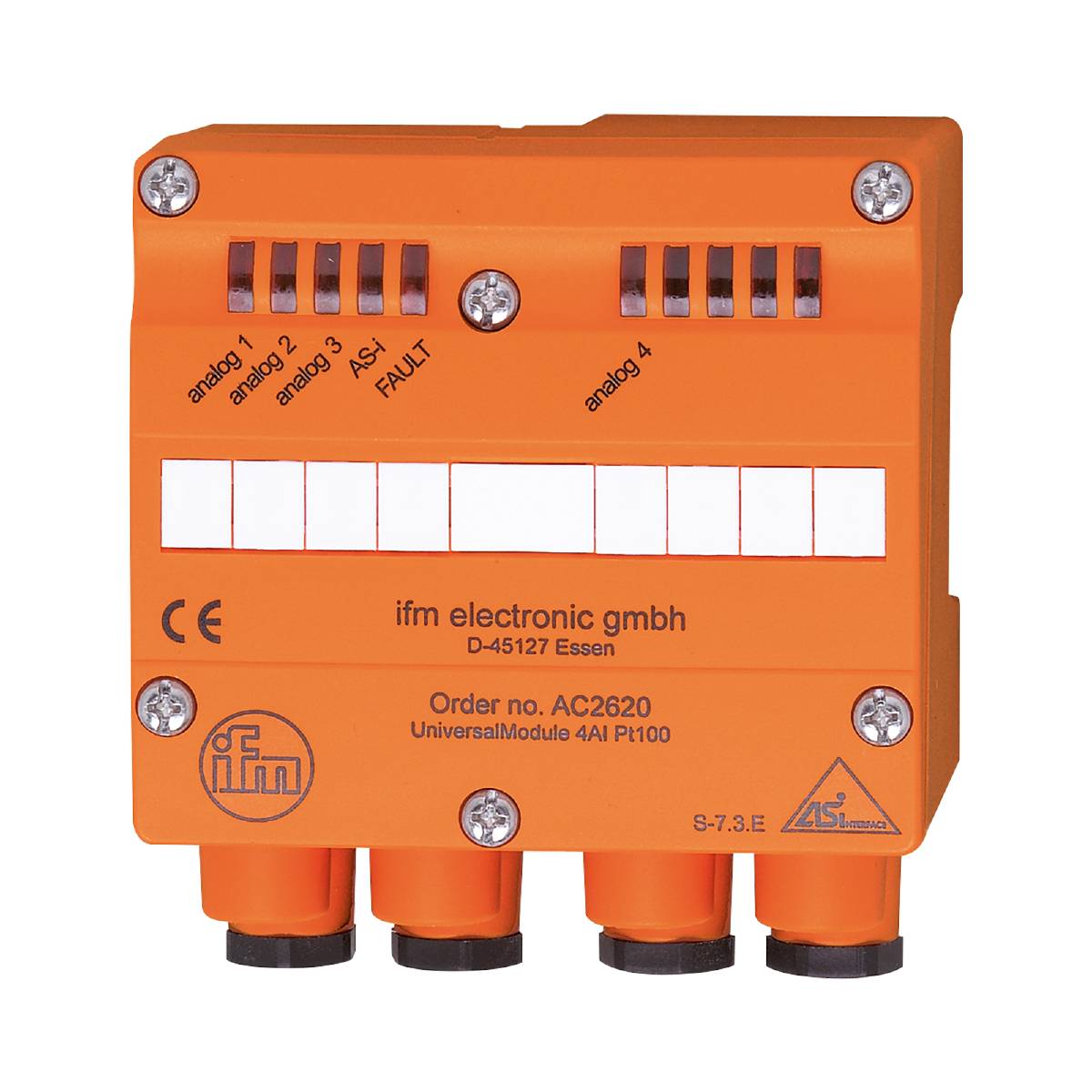

Buy ifm Electronic AC2620 AC2620 GPI module No. of digital inputs: 4

Image similar

Product type

GPI module

Type

AC2620

No. of digital inputs

Manufacturer part #

AC2620

UKCA

yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Easy mounting and wiring
For connecting sensors and actuators with cable output
Device connection via spring-cage terminals
Highly visible, bright LEDs for displaying operation, switching status and errors

Number of analog inputs: Connection of 2 and 3 wire sensors
Number of inputs and outputs: Number of Pt100 inputs: 4
Number of Pt100 inputs: 4
Display: Analog signal: LED, yellow channels AI1…AI4; operation: LED, green AS-i; error: LED, red
Ambient temperature-1 [°C]: 0...70
Application: Field mounting
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: 3.E
As-i Master profile M3; M4
AS-i profile S-7.3.E
Analog output resolution 16 bit / 0.1 °C.
Analogue input resolution 16 bit / 0.1 °C.
Operating voltage [V]: 26.5... 31.6 DC
Weight [g]: 299,000
Field attachable connection / terminals: Cage tension spring terminals: / Contact pins for lower module, FK / PG:
Storage temperature [°C]: -25...85
Max. Height above NN [m]: 2000
Max. Current consumption from AS-i [mA]: 80
max. Current carrying capacity Total inputs [mA]: 20
Max. Permissible relative humidity [%]: 90; (non-condensing)
Measuring range [°C]: -200...850
Module connection: Flat cable
AS-i interface to FK- parts
MTTF: 150
Protection system: IP 65
Sensor supply of inputs: AS-i
Power supply [V]: 18...30; (DC)
Reverse polarity protection: Yes
