Buy ifm Electronic AC2709 PCB | Conrad Electronic

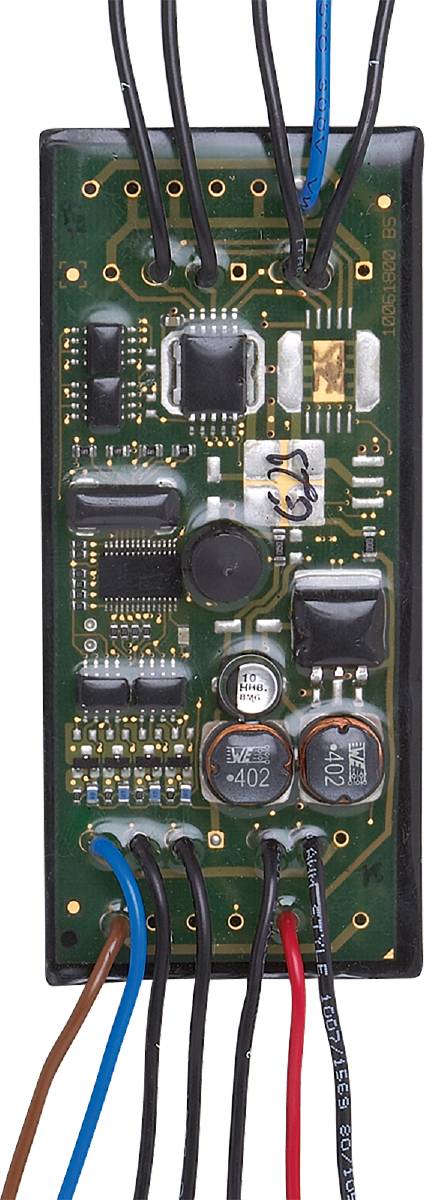

Image similar

Product type

PCB

Manufacturer part #

AC2709

Content

1 pc(s)

UKCA

not relevant

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Actuator supply of outputs: AS-i
Number of digital outputs: 4
Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4; number of digital outputs: 4
Display: Operation: LED, green
Galvanically decoupled Digital output: Yes
Ambient temperature-1 [°C]: -25...60
Application: Mounting housing
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: 0.F
As-i Master profile M2; M3; M4
AS-i profile S-7.0.F
AS-i Version 2.1
Switching PNP
Operating voltage [V]: 26.5... 31.6 DC
Input connection digital inputs: PNP
Input current HIGH [mA]: > 3
Input current Low [mA]: < 1.5
Electrical version: PNP
Extended addressing mode: No.
Weight [g]: 115,000
Cable 0.2 m
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
Max. Current consumption from AS-i [mA]: 250
max. Current carrying capacity Total inputs [mA]: 200
Mounting type: Installation in Moeller-surface housing RMQ Titan: I3M, I4M, I6M
MTTF: 322
Switching level HIGH [V]: > 10
Protection class IP 20
Sensor supply of inputs: AS-i
Power supply [V]: 15...30; (DC)
Current carrying capacity total [A]: 0.2; (total current for all inputs and outputs from S-i supplied: 200 m)
Power rating per output [mA]: 50
