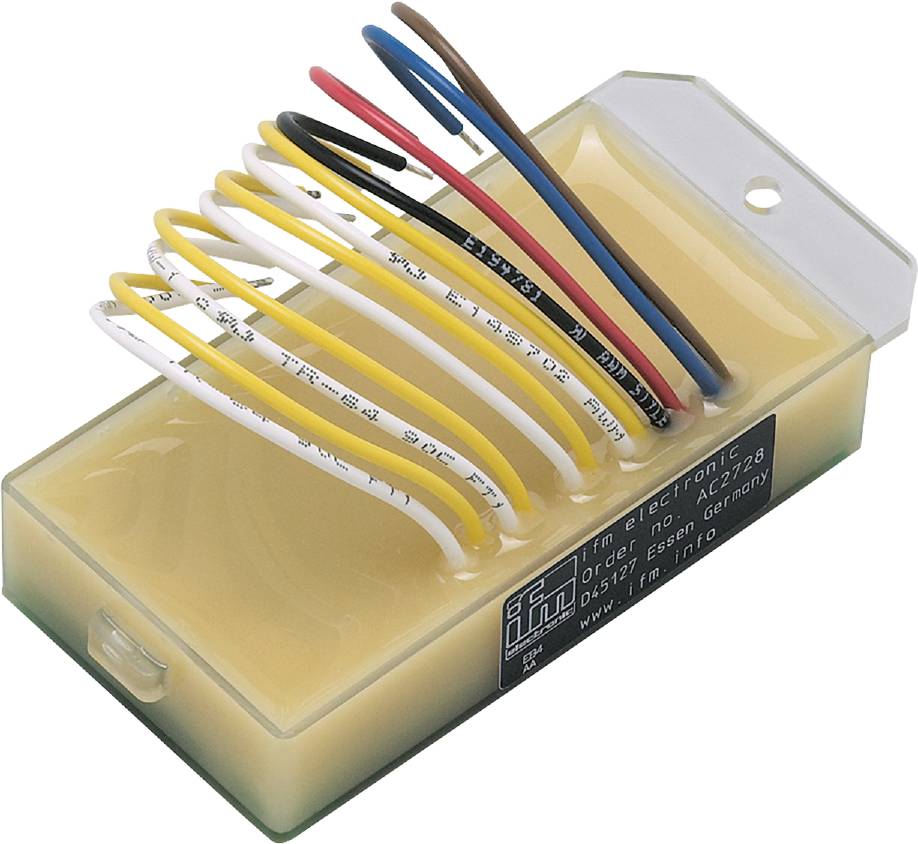

Image similar

Product type

PCB

Manufacturer part #

AC2730

Content

1 pc(s)

UKCA

not relevant

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 16 x 88 x 41
Actuator supply of outputs: AS-i
Number of digital outputs: 3
Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4; number of digital outputs: 3
Ambient temperature-1 [°C]: -25...70
Application: Mounting housing
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: A.F
As-i Master profile M2; M3; M4
AS-i profile S-7.A.F
AS-i Version 2.1
Operating voltage [V]: 26.5... 31.6 DC
Input connection digital inputs: PNP
Electrical version: PNP
Extended addressing mode: Yes
Housing: Cast plastic casing
Weight [g]: 80,000
Cable 0.2 m
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
Protection class IP 20
Sensor supply of inputs: AS-i
VOLTAGE RANGE DC [V]: 18...30; (DC)
Power supply [V]: 20...30; (DC)
Current consumption: < 200
Current carrying capacity total [A]: 0.18; (total current for all inputs and outputs from S-i supplied: 180 m)
Current rating per output [mA]: 100; (observe total current rating for all inputs and outputs)
Watchdog integrated: Yes
