ifm Electronic AC2904 AC2904 IO module M12 plug No. of digital outputs: 3 No. of digital inputs: 4
EAN:
Part number:
Item no:
Product type
IO module
Interfaces
M12 plug
Type
AC2904
Length
80 mm
No. of digital inputs
4
Datasheet (PDF)
Highlights & Details

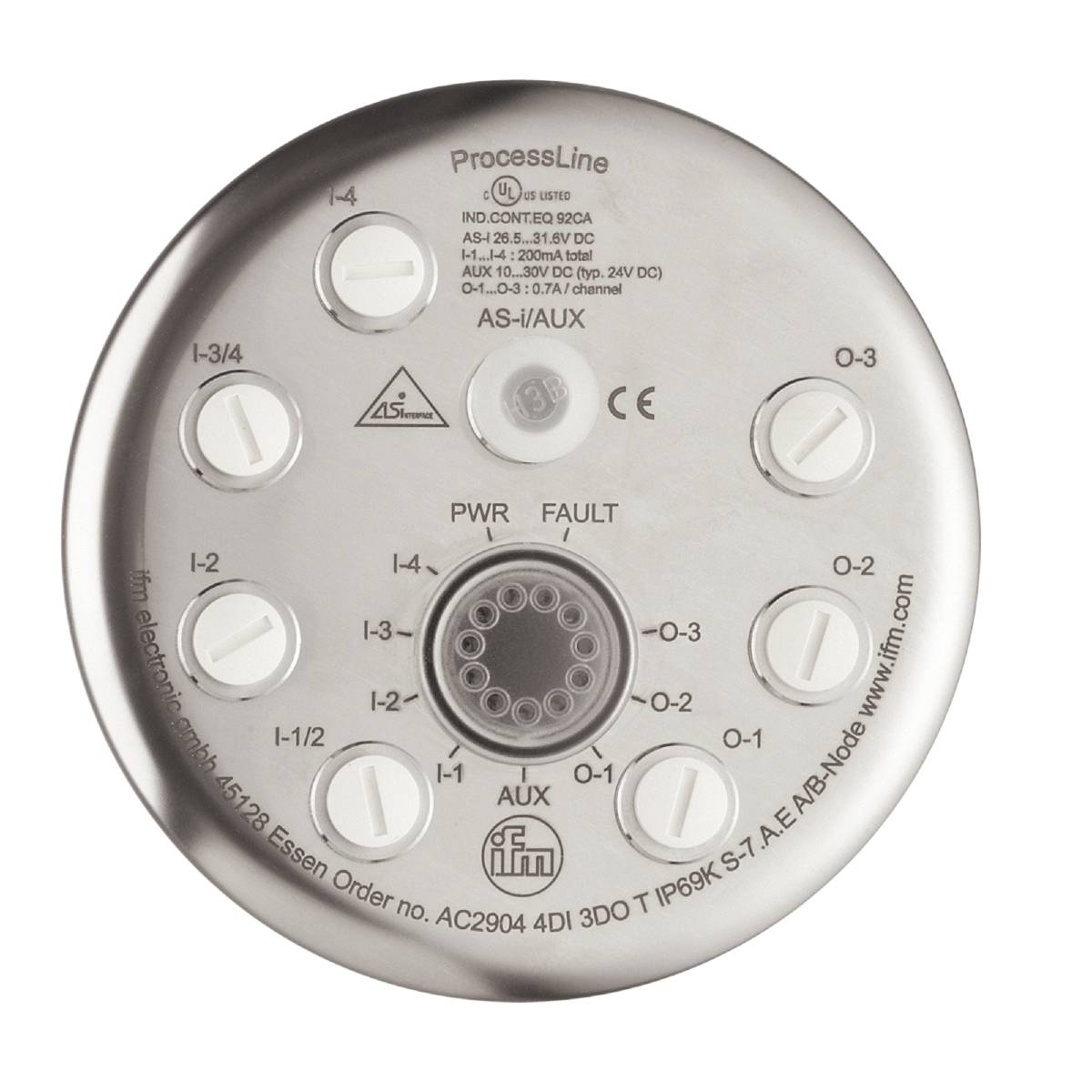

Ifm AC2904 AS-i input/output module
- Specially for the application in Wet area in the food and beverage industry
- Hygienic design without corners and edges
- Resistant to high pressure cleaning with aggressive cleaning agents
- Highly visible, bright LEDs for displaying operation, switching status and errors
- AS-i and 24 V supply via a common M12 connector
Technical specifications
- Dimensions [mm]: Ø 137.3 / L = 80
- Number of digital outputs: 3
- Number of digital inputs: 4
- Number of inputs and outputs: Number of digital inputs: 4; number of digital outputs: 3
- Display: Operation: LED, green; error: LED, red; function: LED, yellow
- Galvanically decoupled Digital output: Yes
- Ambient temperature-1 [°C]: -5...70
- Application: Hygiene and wet areas in the food industry
- AS-i I/O Configuration [HEX]: 7
- AS-i ID code [HEX]: A.E
- As-i Master profile M2; M3; M4
- AS-i profile S-7.A.E
- AS-i Version 2.1
- AS-i certificate: 101107
- Switching PNP
- Operating voltage [V]: 26.5... 31.6 DC
- Input wiring digital inputs: PNP; (Type 2 to IEC 61131-2)
- Input current High [mA]: 6...10
- Input current Low [mA]: 0...2
- Extended addressing mode: Yes
- Weight [g]: 632,000
- Short-circuit-proof: Yes
- Short-circuit resistance of digital inputs: Yes
- Max. Height above NN [m]: 2000
- Max. Current consumption from AS-i [mA]: 240
- Max. Power consumption from additional power supply [mA]: 2100; (AUX)
- max. Current carrying capacity Total inputs [mA]: 200
- Max. Permissible relative humidity [%]: 90; (linear decreasing to 50 (40 °C) non-condensing)
- M12 module connection
- MTTF: 160
- Switching level HIGH [V]: > 11
- PROTECTION CLASS IP 68; IP 69K
- Sensor supply of inputs: AS-i
- VOLTAGE RANGE DC [V]: 20...30; (AUX)
- Power supply [V]: 18...30
- Plug connection: AS-i pin layout: 0063 - connector: M12; coding: A; tightening torque: 1.2...1.4 Nm / inputs - pin layout: 0017 - plug connection: M12; coding: A; tightening torque: 1.2...1.4 Nm / outputs - pin layout: 0017 - plug connection: M12; coding: A; tightening torque: 1.2...1.4 Nm
- Current carrying capacity of outputs total [A]: 2.1
- Current carrying capacity per output [mA]: 700; (usage category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
- Pollution level: 2
- Watchdog integrated: Yes
- Additional power supply [V]: 20...30 DC (AUX)
- Product type
IO module
- Interfaces
M12 plug
- Type
AC2904
- Length
80 mm
- No. of digital inputs
4
- No. of digital outputs
3
- Control LEDs
Yes
- Manufacturer part #
AC2904
- UKCA
yes
