Buy ifm Electronic AC2916 AC2916 GPI module M12 socket No. of digital inputs: 4

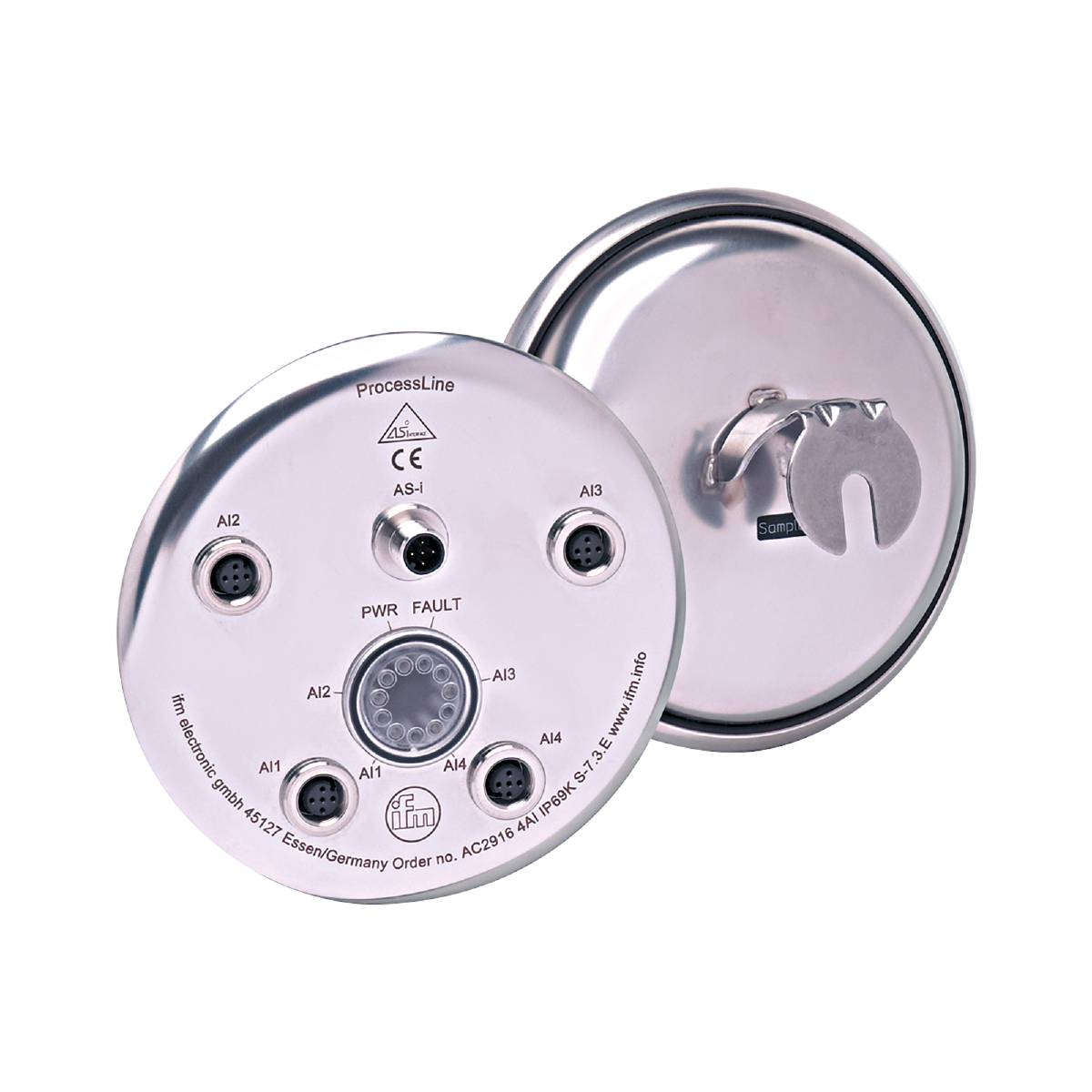

Image similar

Product type

GPI module

Interfaces

M12 socket

Type

AC2916

Length

80 mm

No. of digital inputs

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Specially for the application in Wet area in the food and beverage industry
Hygienic design without corners and edges
Resistant to high pressure cleaning with aggressive cleaning agents
Highly visible, bright LEDs for displaying operation, switching status and errors

Dimensions [mm]: Ø 137.3 / L = 80
Analog input voltage [V]: 18...30
Analog input current [mA]: 4...20
Number of analog inputs: 4; (connection of 2- and 3-wire sensors)
Number of inputs and outputs: Number of analog inputs: 4
Display: Analog signal: LED, yellow channels AI1...AI4; operation: LED, green AS-i; error: LED, red
Ambient temperature-1 [°C]: -5...70
Application: Hygiene and wet areas in the food industry
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: 3.E
As-i Master profile M3; M4
AS-i profile S-7.3.E
AS-i version 2.11; 3.0
AS-i certificate: 101108
Analogue input resolution: 1 bit = 1 µA
Operating voltage [V]: 26.5... 31.6 DC
Extended addressing mode: No.
Analog input accuracy [%]: 0.5
Weight [g]: 607,000
Storage temperature [°C]: -25...85
Max. Height above NN [m]: 2000
Max. Voltage drop via load at rated voltage [V]: 10
Max. Current consumption from AS-i [mA]: 450
Max. Permissible relative humidity [%]: 90; (linear decreasing to 50 (40 °C) non-condensing)
M12 module connection
MTTF: 98
PROTECTION CLASS IP 68; IP 69K
Sensor supply of inputs: AS-i
Plug connection: AS-i pin layout: 0063 - plug connection: 1 x M12; coding: A; tightening torque: 1.2...1.4 Nm / process connection - pin layout: 0017 - connector: 4 x M12; coding: A; tightening torque: 1.2...1.4 Nm
Reverse polarity protection: Yes
Pollution level: 2
