Buy ifm Electronic AC2951 Passive voltage splitter AC2951 1 pc(s)

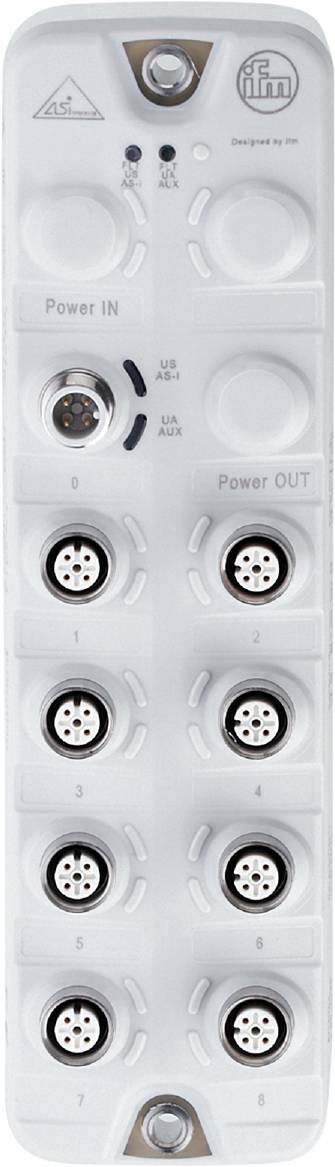

Image similar

Product type

Passive voltage splitter

Type

AC2951

Min. operating voltage

20 V DC

Max. operating voltage

30 V DC

Operating voltage

20 - 30 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 208 x 59.3 x 38.4
Display: Operation: LED, green AS-i / AUX / US / UA; error: LED, red
Ambient temperature-1 [°C]: -25...60
Application: Hygiene and wet areas in the food industry
Design: AS-i or IO-Link voltage distributor
Operating voltage - AS_i_mode [V]: 18...31.6 DC; (AS-i)
Operating voltage - IO_LINK_OPERATION [V]: 20...30 DC; (US)
Weight [g]: 391,200
Storage temperature [°C]: -25...85
Max. Height above NN [m]: 4000
Max. Power consumption from additional power supply - AS_i_mode [mA]: 4000; (AUX)
Max. Power consumption from additional power supply - IO_Link_mode [mA]: 4000; (UA)
Max. Permissible relative humidity [%]: 90; (non-condensing)
M12 module connection
MTTF: 379
Protection class IP 65; IP 66; IP 67; IP 69K; (Operation with stainless steel caps: IP 69K)
Protection class (NEMA 250) 6P
Protection class III
Plug connection: Power IN pin layout: 0001 - plug connection: M12; coding: A; tightening torque: 0.6...0.8 Nm / Power OUT - pin layout: 0017 - plug connection: M12; coding: A; tightening torque: 0.6...0.8 Nm
Current consumption - AS_i_mode [mA]: 4000; (AS-i)
Current consumption - IO_LINK_OPERATION [mA]: 4000; (US)
Overcurrent detection: Yes; (4400 mA ± 200 mA)
Pollution level: 2
Additional power supply - AS_i_mode [V]: 15...30 DC; (AUX)
Additional power supply - IO_LINK_OPERATION [V]: 20...30 DC; (UA)
