Name: ifm Electronic AC3221 AC3221 IO module Terminal strip No. of digital inputs: 4 No. of relay outputs: 4
Brand: ifm Electronic
SKU: 3320212

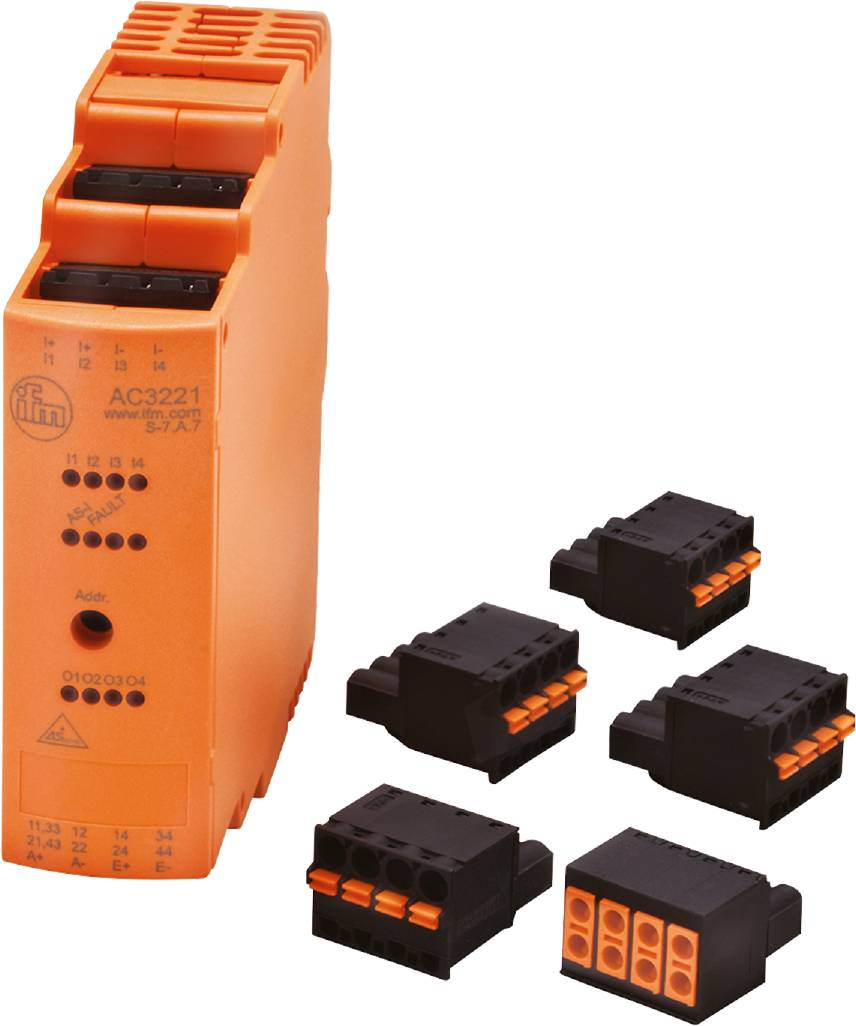

Orange IFM device with multiple detachable black connectors, Model AC3221, for industrial automation.

Image similar

Product type

IO module

Interfaces

Terminal strip

No. of relay outputs

Type

AC3221

No. of digital inputs

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm AC3221 AS-i input/output module

For use in switchboards
Easy and fast wiring with spring clamp terminals
Particularly space-saving design
Double terminals for looping through the voltage supply
Highly visible bright LEDs for display of operation, switching status and function

Technical specifications

Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4; number of relay outputs: 4
Number of relay outputs: 4
Display: Switching state: LED, yellow I1...I4, O1...O4; operation: LED, green AS-i, AUX; Error: red LED
Galvanically decoupled Digital output: Yes
Ambient temperature-1 [°C]: -25...65
Application: Switchboard installation
AS-i Addressing: Addressing socket
AS-i I/O Configuration [HEX]: 7
AS-i ID1 code [HEX]: 7; (fixed)
AS-i ID code [HEX]: A.7
As-i Master profile M4
AS-i profile S-7.A.7
AS-i Version 3.0
AS-i certificate: 124301
Design: Only for operation with AS-i master profile M4
Operating voltage [V]: 18... 31.6 DC
Input wiring digital inputs: PNP; (Type 2 to IEC 61131-2)
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Extended addressing mode: Yes
Weight [g]: 203,350
Notes: The device must be supplied from a galvanically isolated voltage source; this voltage source must have a UL-approved fuse secondary (see attached sheet); Alternatively, a Class 2 power supply can be used to power AUX.
Field connection / Terminals: 4 x pin contact strips; 5.0 mm pitch
Short-circuit-proof: No.
Short-circuit resistance of digital inputs: Yes
Storage temperature [°C]: -25...75
Max. Height above NN [m]: 2000
Max. Current consumption from AS-i [mA]: 30
Max. Power consumption from additional power supply [mA]: 1100; (AUX)
max. Current carrying capacity Total inputs [mA]: 1000
Max. Permissible relative humidity [%]: 90; (non-condensing)
Mounting type: Rail mounting
MTTF: 248
Switching level HIGH [V]: > 11
Protection class IP 20
Protection class IP 20 terminals
Sensor supply of inputs: AUX
Voltage range AC [V]: 10...240; (Outputs O1 + O3 and O2 + O4 must be supplied with the same voltage in pairs. 2 x 240 AC)
Voltage range DC [V]: 24; (AUX; outputs O1 + O3 and O2 + O4 must be supplied with the same voltage in pairs. 2 x 24 DC)
POWER SUPPLY [V]: 18...30; (DC AUX)
Power rating outputs total [A]: 6; (resistive load)
Current carrying capacity per output [mA]: 6000; (resistive load)
Pollution level: 2
Watchdog integrated: Yes
Additional power supply [V]: 20...30 DC (AUX)
