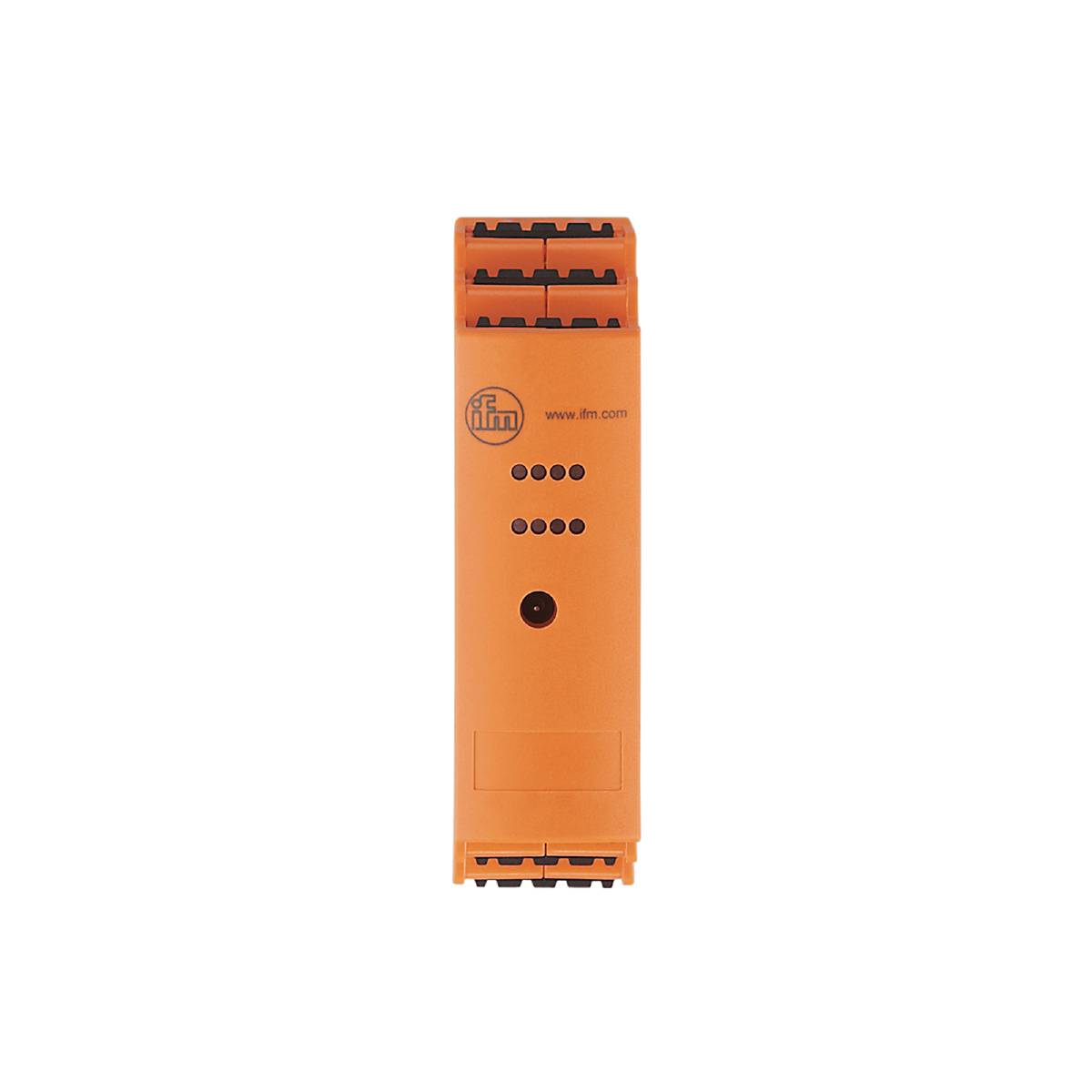

Buy ifm Electronic AC3222 AC3222 GPI module Terminal strip No. of digital inputs: 4

Image similar

Product type

GPI module

Interfaces

Terminal strip

Type

AC3222

No. of digital inputs

Control LEDs

Yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Number of analog inputs: Connection of 2 and 4 wire sensors
Number of inputs and outputs: Number of Pt100 inputs: 4
Number of Pt100 inputs: 4
Display: Analog signal: LED, yellow channels AI1...AI4; operation: LED, green AS-i; error: LED, red
Ambient temperature-1 [°C]: 0...70
Application: Switchboard installation
AS-i Addressing: Addressing socket
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: 3.E
As-i Master profile M3; M4
AS-i profile S-7.3.E
AS-i version 2.11; 3.0
AS-i certificate: 129901
Analogue input resolution 16 bit / 0.1 °C.
Operating voltage [V]: 26.5... 31.6 DC
Extended addressing mode: No.
ACCURACY: ± 0.2 °C (-200 °C)...± 2 °C (800 °C)
Weight [g]: 195,550
Field connection / Terminals: 4 x pin contact strips; 5.0 mm pitch
Short-circuit resistance of analogue inputs: Yes
Storage temperature [°C]: -25...85
Max. Height above NN [m]: 2000
Max. Current consumption from AS-i [mA]: 80
Max. Permissible relative humidity [%]: 90; (non-condensing)
Measuring range [°C]: -200...850
Mounting type: Rail mounting
Protection class IP 20
Protection class IP 20 terminals
Sensor supply of inputs: AS-i
Reverse polarity protection: Yes
Pollution level: 2
