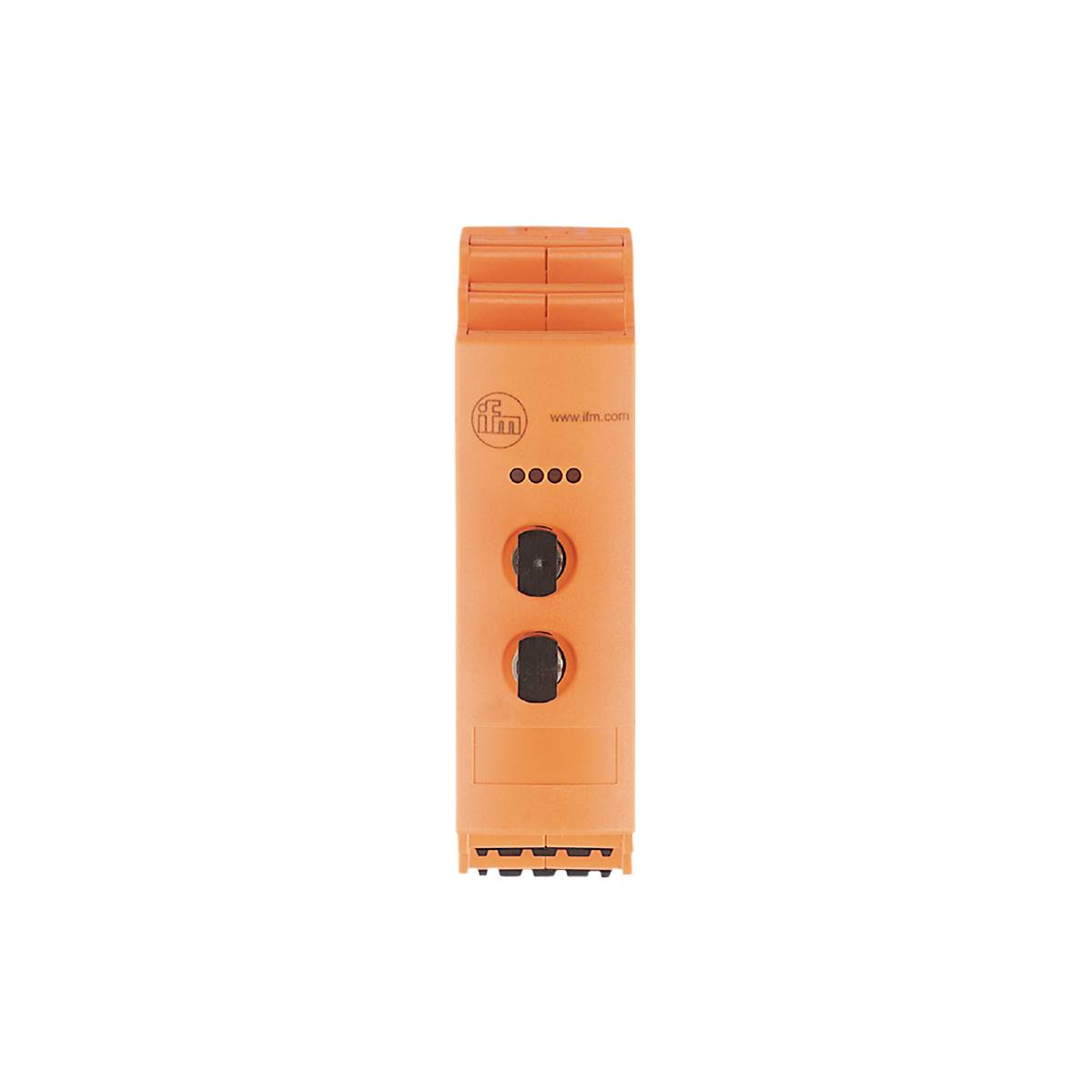

ifm Electronic AC3227 Repeater AC3227 1 pc(s)
EAN:
Part number:
Item no:
Product type
Repeater
Type
AC3227
Min. operating voltage
26.5 V DC
Max. operating voltage
31.6 V DC
Operating voltage
26.5 - 31.6 V DC
Datasheet (PDF)
Highlights & Details
Ifm AC3227 AS-i repeater
- To increase the cable length in the AS-i network
- For use in switchboards
- Easy and fast wiring by COMBICON-plug with screw terminals
- Particularly space-saving design
- Highly visible LEDs for indication of operation and errors
Technical specifications
- Display: Operation 1 x LED, green
- Ambient temperature-1 [°C]: -25...70
- Application: Extension of the AS-i network via fiber optic cable to up to 3200 m.
- Operating voltage [V]: 26.5... 31.6 DC
- Weight [g]: 162,500
- Storage temperature [°C]: -25...75
- Max. Height above NN [m]: 2000
- Max. Current consumption from AS-i [mA]: 60
- Max. Permissible relative humidity [%]: 90; (non-condensing)
- Mounting type: Rail mounting
- Protection class IP 20
- Pollution level: 2
- Product type
Repeater
- Type
AC3227
- Min. operating voltage
26.5 V DC
- Max. operating voltage
31.6 V DC
- Operating voltage
26.5 - 31.6 V DC
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3321330 ifm Electronic AC3227 Repeater AC3227 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321330 ifm Electronic AC3227 Repeater AC3227 1 pc(s)
Description
Ifm AC3227 AS-i repeater
