ifm Electronic AC3255 AC3255 IO module Terminal strip No. of digital outputs: 2 No. of digital inputs: 4 No. of relay ou
EAN:
Part number:
Item no:
Product type
IO module
Interfaces
Terminal strip
No. of relay outputs
2
Type
AC3255
No. of digital inputs
4
Datasheet (PDF)
Highlights & Details

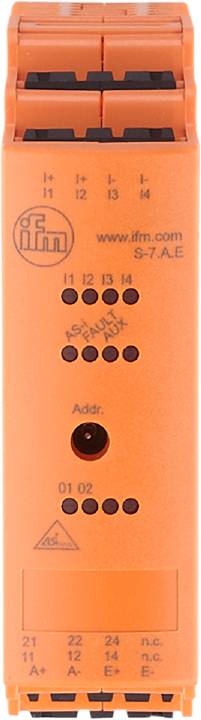

Ifm AC3255 AS-i input/output module
- AS-i input/output module
- SMARTL25 4DI AUX 2DO R C
- Terminals
- IP 20
Technical specifications
- Number of digital inputs: 4
- Number of inputs and outputs: Number of digital inputs: 4; number of relay outputs: 2
- Number of relay outputs: 2
- Display: Switching state: LED, yellow I1...I4, O1...O2; operation: LED, green AS-i, AUX; Error: red LED
- Galvanically decoupled Digital output: Yes
- Ambient temperature-1 [°C]: -25...65
- Application: Switchboard installation
- AS-i Addressing: Addressing socket
- AS-i I/O Configuration [HEX]: 7
- AS-i ID code [HEX]: A.E
- As-i Master profile M2; M3; M4
- AS-i profile S-7.A.E
- AS-i version 2.11; 3.0
- Operating voltage [V]: 18... 31.6 DC
- Input wiring digital inputs: PNP; (Type 2 to IEC 61131-2)
- Input current High [mA]: 6...10
- Input current Low [mA]: 0...2
- Extended addressing mode: Yes
- Weight [g]: 183,850
- Notes: The device must be supplied from a galvanically isolated voltage source; this voltage source must have a UL-approved fuse secondary (see attached sheet); Alternatively, a Class 2 power supply can be used to power AUX.
- Field connection / Terminals: 4 x pin contact strips; 5.0 mm pitch
- Short-circuit-proof: No.
- Short-circuit resistance of digital inputs: Yes
- Storage temperature [°C]: -25...75
- Max. Height above NN [m]: 2000
- Max. Current consumption from AS-i [mA]: 30
- Max. Power consumption from additional power supply [mA]: 1100; (AUX)
- max. Current carrying capacity Total inputs [mA]: 1000
- Max. Permissible relative humidity [%]: 90; (non-condensing)
- Mounting type: Rail mounting
- MTTF: 320
- Switching level HIGH [V]: > 11
- Protection class IP 20
- Protection class IP 20 terminals
- Sensor supply of inputs: AUX
- Voltage range AC [V]: 10...240
- Voltage range DC [V]: 24
- Power supply [V]: 18...30; (DC)
- Power rating outputs total [A]: 6; (resistive load)
- Current carrying capacity per output [mA]: 6000; (resistive load)
- Pollution level: 2
- Watchdog integrated: Yes
- Additional power supply [V]: 20...30 DC (AUX)
- Product type
IO module
- Interfaces
Terminal strip
- Type
AC3255
- No. of digital inputs
4
- No. of digital outputs
2
- No. of relay outputs
2
- Manufacturer part #
AC3255
- UKCA
yes
