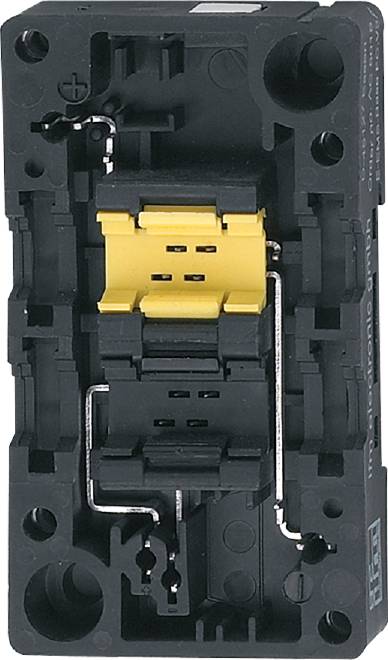

ifm Electronic AC5015 Module base AC5015 1 pc(s)
EAN:
Part number:
Item no:
Product type
Module base
Type
AC5015
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
not relevant
Datasheet (PDF)
Highlights & Details
Ifm AC5015 module lower part for flat cables and external power supply
- AS-i interface to the top of the module
- Reliable connection with the AS-i flat cable thanks to quick mounting technology
- For mounting rail and rear wall mounting
- High protection class to meet the requirements of harsh industrial ambient
Our service for you
Technical specifications
- Dimensions [mm] 45 x 80 x 20
- Ambient temperature-1 [°C]: -25...85
- Operating voltage [V]: 26.5... 31.6 DC
- Electrical version AS-i
- Weight [g]: 61,000
- Pre-assembled connection / terminals: Contact pins in the top of the module: / Rapid assembly technology for AS-i flat cable:
- Contact rating: 2 A
- Mounting type: Mounting rail and rear wall mounting
- Protection class IP 67; (depending on the top used IP 20 / IP 65 / IP 67)
- Additional power supply [V]: 24 DC
- Product type
Module base
- Type
AC5015
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3316576 ifm Electronic AC5015 Module base AC5015 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316576 ifm Electronic AC5015 Module base AC5015 1 pc(s)
Description
Ifm AC5015 module lower part for flat cables and external power supply
