Buy ifm Electronic AC506S AC506S IO module M12 plug No. of digital outputs: 0

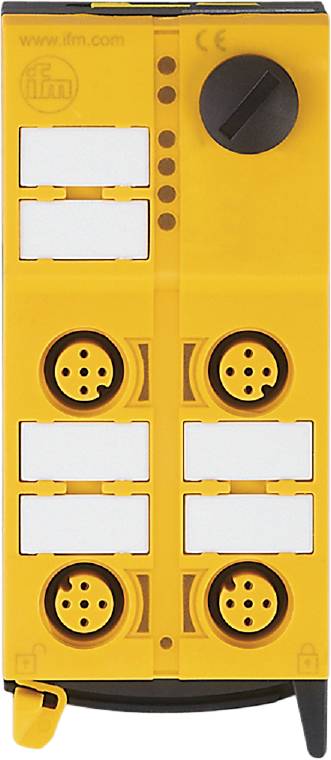

Image similar

Product type

IO module

Interfaces

M12 plug

Type

AC506S

No. of digital outputs

Cable length

10 m

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Reliable recording of safety-relevant switching states
Integration of safety-related components in AS-i
Connection of secure mechanical contacts and safe three-wire sensors
Easy installation and wiring without any tools thanks to quick mounting technology
Highly visible, bright LEDs for displaying operation, switching status and errors

Display: Operation: LED, green; error: LED, red; function: LED, yellow
Galvanically decoupled Digital output: No.
Ambient temperature-1 [°C]: -25...55
Application: AS-i Safety at Work
AS-i Addressing: Addressing socket
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]:B.E
As-i Master profile M3; M4
AS-i profile S-7.B.E
AS-i version 2.11; 3.0
AS-i certificate: 97201
Operating voltage [V]: 26.5...31.6 DC; ("supply class 2" according to cULus)
Input connection digital inputs: PNP
Extended addressing mode: No.
Duration of use TM (Mission Time) [h]: 175200
Weight [g]: 298,300
Pre-assembled connection / terminals: ; Max. Cable length: < 10 m / Quick mounting technology for AS-i flat cable: ; Orientation possible in three directions
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
max. Current carrying capacity Total inputs [mA]: 200
Module connection: Flat cable
AS-i flat cable can be directly connected
PFH [1/h]: 4.7E-12
IP 67 protection
Sensor supply of inputs: AS-i
Voltage range DC [V]: 18...30; (AS-i)
Plug connection: Pin layout: 0017 - plug connection: M12; coding: A; max. Cable length 10 m.
Current consumption: < 280
Current carrying capacity total [A]: 0.2
Power rating per output [mA]: 50
Watchdog integrated: Yes
