ifm Electronic AC5101 Module base AC5101 1 pc(s)
EAN:
Part number:
Item no:
Product type
Module base
Type
AC5101
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
not relevant
Datasheet (PDF)
Highlights & Details

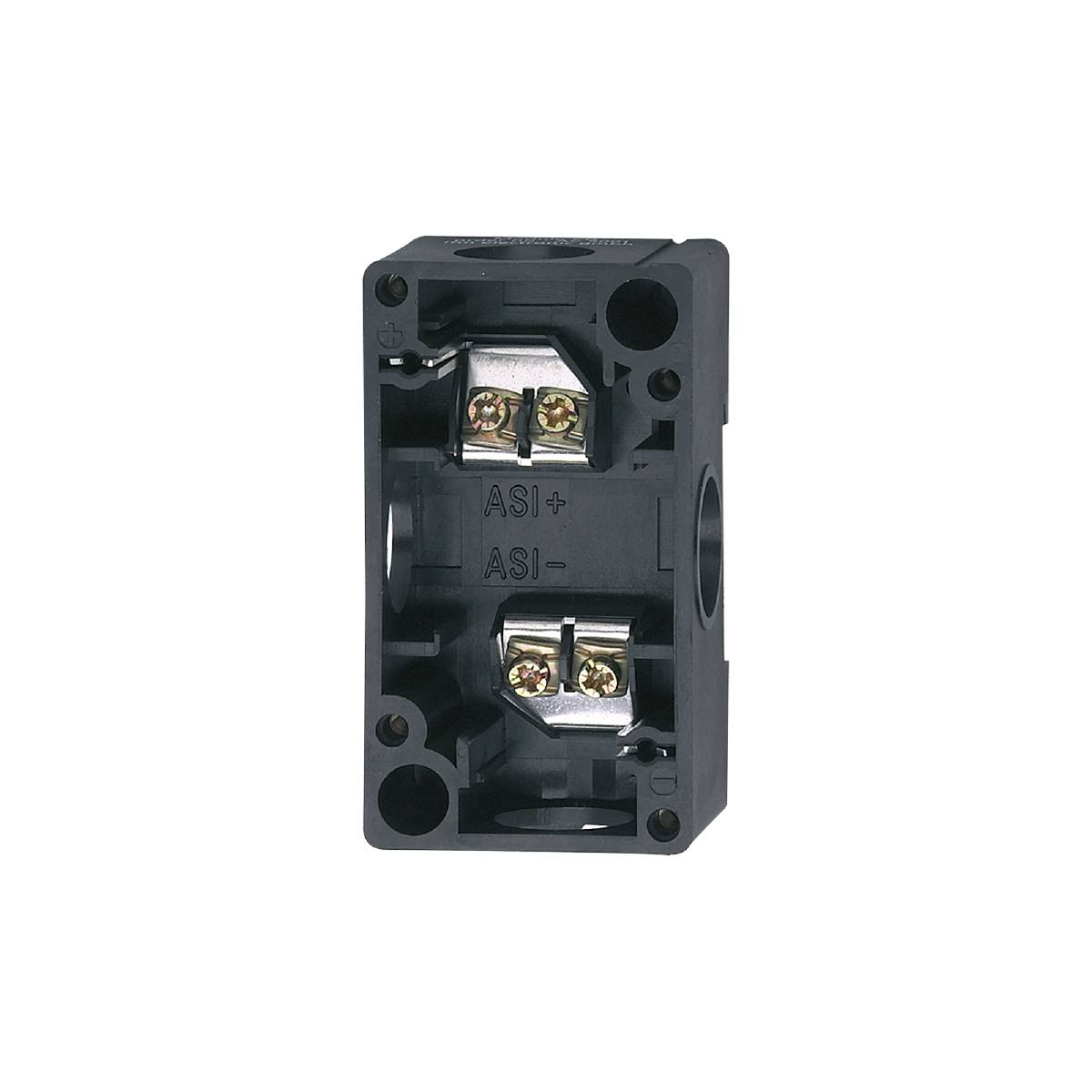

Ifm AC5101 module lower section M20
- AS-i interface to the top of the module
- Reliable connection with the AS-i flat cable thanks to quick mounting technology
- For mounting rail and rear wall mounting
- High protection class to meet the requirements of harsh industrial ambient
Our service for you
Technical specifications
- Dimensions [mm] 45 x 82.5 x 33
- Ambient temperature-1 [°C]: -25...85
- Operating voltage [V]: 26.5... 31.6 DC
- Electrical version AS-i
- Weight [g]: 70,500
- Connection/terminals ready for assembly: Screw terminals: ...2.5 mm²
- Contact rating: 4 A
- Mounting type: Mounting rail and rear wall mounting
- Protection system: IP 65
- Product type
Module base
- Type
AC5101
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3315570 ifm Electronic AC5101 Module base AC5101 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3315570 ifm Electronic AC5101 Module base AC5101 1 pc(s)
Description
Ifm AC5101 module lower section M20
