Buy ifm Electronic AC515A AC515A GPI module Ribbon cable No. of digital inputs: 4

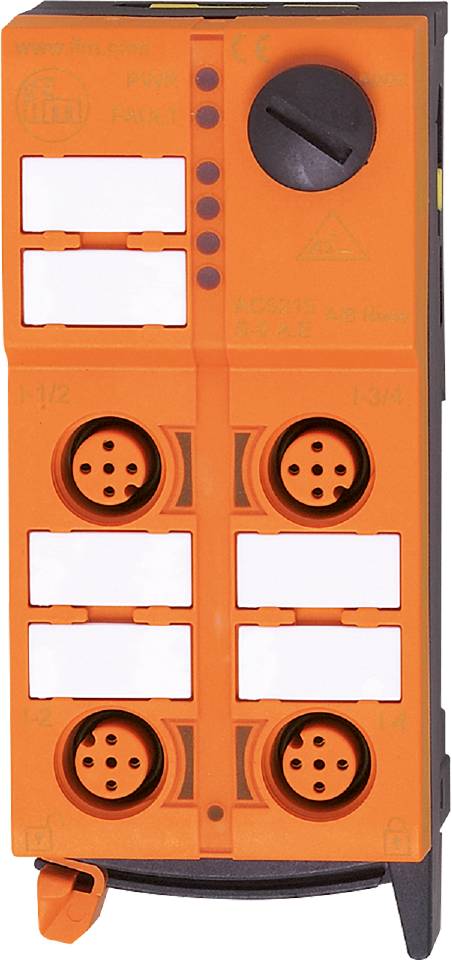

Image similar

Product type

GPI module

Interfaces

Ribbon cable

Type

AC515A

No. of digital inputs

Control LEDs

Yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Easy installation and wiring without any tools thanks to quick mounting technology
Three freely selectable alignments of the flat cable
Highly visible, bright LEDs for displaying operation, switching status and errors
For applications in areas where there is a risk of explosion
Durable M12 connectors for connecting sensors and actuators

Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4
Display: Operation: LED, green; error: LED, red; function: LED, yellow
Ambient temperature-1 [°C]: -10...50
Application: AS-i ATEX-Module
AS-i Addressing: Addressing socket
AS-i I/O Configuration [HEX]: 0
AS-i ID code [HEX]: A.E
As-i Master profile M2; M3; M4
AS-i profile S-0.A.E
AS-i version 2.11; 3.0
AS-i certificate requested: Yes
ATEX Device Identification:II 3D Ex tc IIIB T80°C DC X IP50
Operating voltage [V]: 26.5... 31.6 DC
Input connection digital inputs: PNP
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Extended addressing mode: Yes
Weight [g]: 230,500
Ready-to-assemble connection / terminals: Quick-assembly technology for AS-i flat cable: ; Orientation possible in three directions
Short-circuit resistance of digital inputs: Yes
Max. Current consumption from AS-i [mA]: 250
max. Current carrying capacity Total inputs [mA]: 200
Module connection: Flat cable
AS-i flat cable can be directly connected
MTTF: 405
Switching level HIGH [V]: > 11
Protection class IP50
Sensor supply of inputs: AS-i
Power supply [V]: 18...30; (via flat cable)
Plug connection: Pin layout: 0017 - connector: M12; coding: A.
