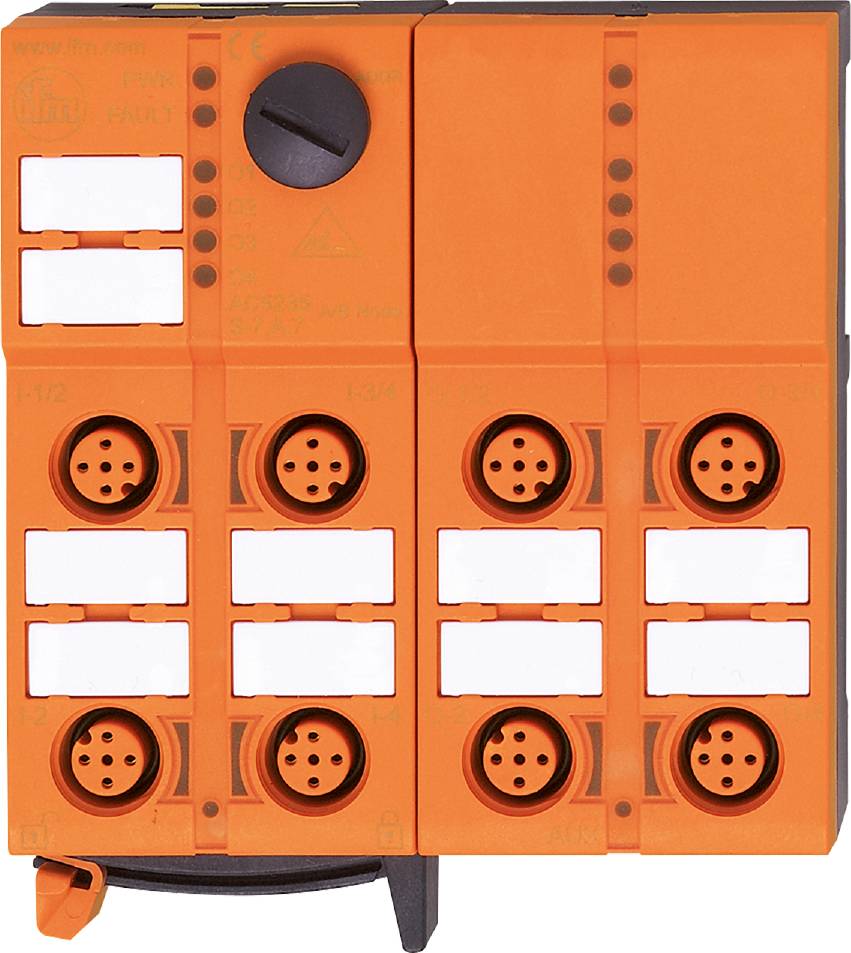

Buy ifm Electronic AC5210 AC5210 GPI module M12 plug No. of digital inputs: 8

Image similar

Product type

GPI module

Interfaces

M12 plug

Type

AC5210

No. of digital inputs

Control LEDs

Yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Easy installation and wiring without any tools thanks to quick mounting technology
Three freely selectable alignments of the flat cable
Highly visible, bright LEDs for displaying operation, switching status and errors
High protection class to meet the requirements of harsh industrial ambient
Durable M12 connectors for connecting sensors and actuators

Number of digital inputs: 8; (2 x slave)
Number of inputs and outputs: Number of digital inputs: 8
Display: Operation: LED, green; error: LED, red; function: LED, yellow
Ambient temperature-1 [°C]: -25...70
Application: Field mounting
AS-i Addressing: Addressing socket
AS-i I/O Configuration [HEX]: 0
AS-i ID code [HEX]: A.E
As-i Master profile M2; M3; M4
AS-i profile S-0.A.E
AS-i version 2.11; 3.0
AS-i certificate: 89001
Operating voltage [V]: 26.5...31.6 DC; ("supply class 2" according to cULus)
Input connection digital inputs: PNP
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Extended addressing mode: Yes
Weight [g]: 284,500
Ready-to-assemble connection / terminals: Quick-assembly technology for AS-i flat cable: ; Orientation possible in three directions
Short-circuit resistance of digital inputs: Yes
Max. Current consumption from AS-i [mA]: 300
max. Current carrying capacity Total inputs [mA]: 250; (2 x 125)
Module connection: Flat cable
AS-i flat cable can be directly connected
MTTF: 218
Switching level HIGH [V]: > 11
IP 67 protection
Sensor supply of inputs: AS-i
Power supply [V]: 18...30
Plug connection: Pin layout: Zero plug connection: M12
