Buy ifm Electronic AC5216 AC5216 GPI module M12 plug No. of digital inputs: 4

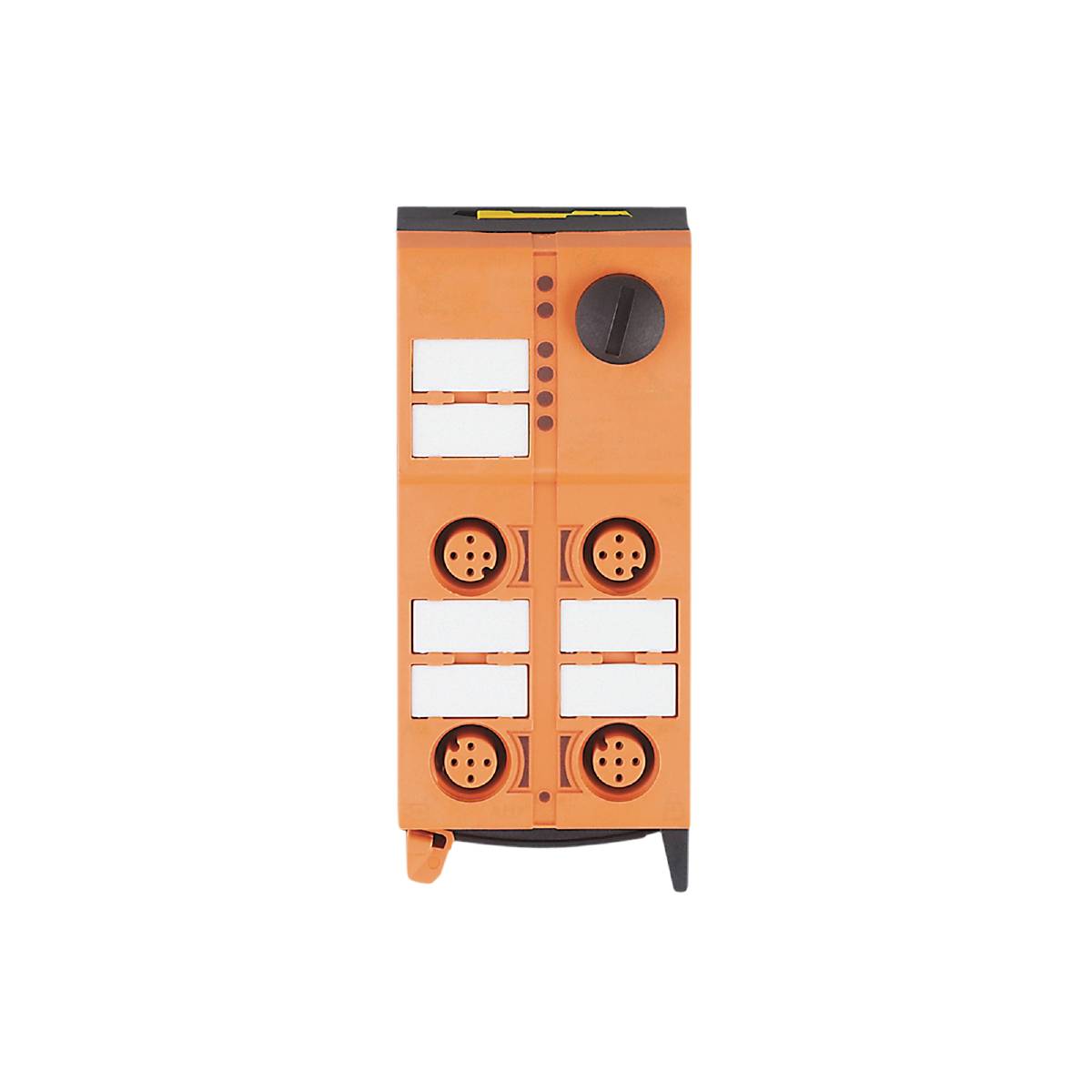

Image similar

Product type

GPI module

Interfaces

M12 plug

Type

AC5216

No. of digital inputs

Control LEDs

Yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Easy installation and wiring without any tools thanks to quick mounting technology
Three freely selectable alignments of the flat cable
Highly visible, bright LEDs for displaying operation, switching status and errors
High protection class to meet the requirements of harsh industrial ambient
Durable M12 connectors for connecting sensors and actuators

Analog input current [mA]: 4...20
Number of analog inputs: 4; (connection of 2- and 3-wire sensors)
Number of inputs and outputs: Number of analog inputs: 4
Display: Analog signal: LED, yellow channels AI1...AI4; operation: LED, green AS-i, AUX; Error: LED, red
Ambient temperature-1 [°C]: -25...70
Application: Field mounting
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: 3.E
As-i Master profile M3; M4
AS-i profile S-7.3.E
AS-i version 2.11; 3.0
AS-i certificate: 123501
12-bit analogue resolution
Operating voltage [V]: 18... 31.6 DC
Extended addressing mode: No.
Accuracy: 0.5; (% of the end-of-range value; tolerance under the influence < of electromagnetic interference: ± 1% of the end-of-range value)
Weight [g]: 154,350
Ready-to-assemble connection / terminals: Quick-assembly technology for AS-i flat cable: ; Orientation possible in three directions
Short-circuit resistance of analogue inputs: Yes
Storage temperature [°C]: -25...70
Max. Height above NN [m]: 2000
Max. Voltage drop via load at rated voltage [V]: 10
Max. Current consumption from AS-i [mA]: 50
Max. Power consumption from additional power supply [mA]: 2000
Max. Permissible relative humidity [%]: 90; (non-condensing)
Module connection: Flat cable
MTTF: 105
IP 67 protection
Sensor supply of inputs: AUX
Plug connection: Pin layout: 0017 - connector: M12; coding: A.
Current carrying capacity total [A]: 2
Reverse polarity protection: Yes
Additional power supply [V]: 16...30 DC (AUX)
