Name: ifm Electronic AC5235 AC5235 IO module M12 plug No. of digital outputs: 4 No. of digital inputs: 4
Brand: ifm Electronic
SKU: 3320410

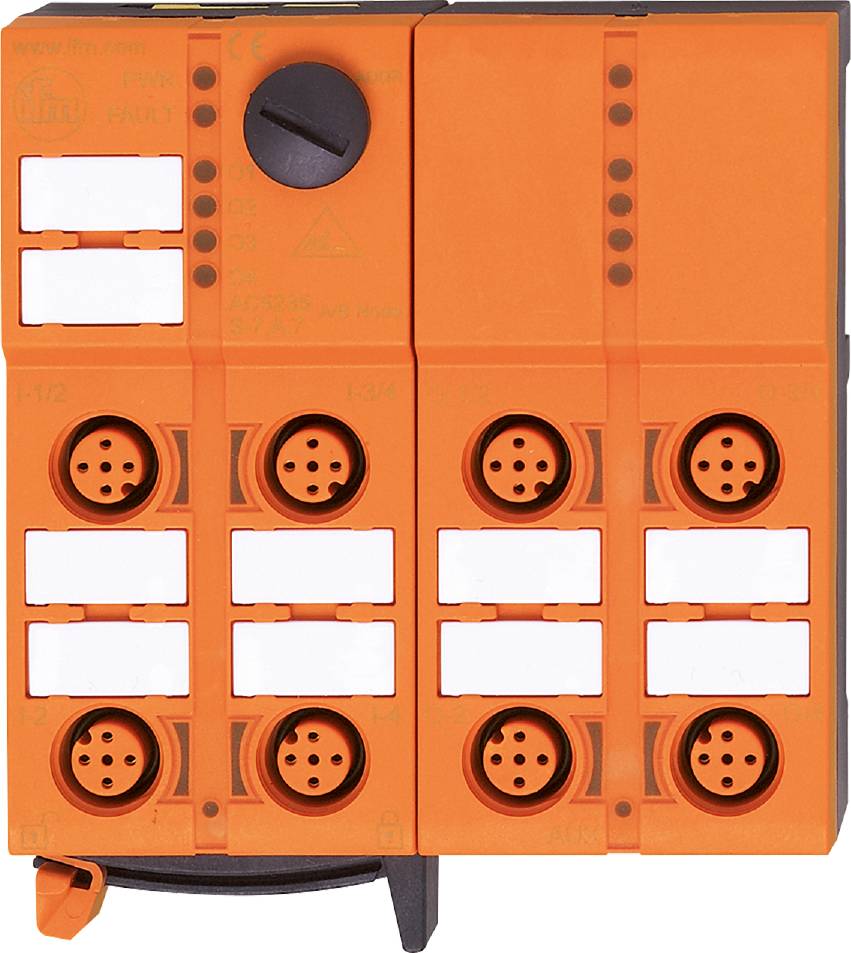

An orange electrical multi-socket extension block with several sockets and covers. Used for power or data connection.

Image similar

Product type

IO module

Interfaces

M12 plug

Type

AC5235

No. of digital inputs

No. of digital outputs

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm AC5235 AS-i input/output module

Easy installation and wiring without any tools thanks to quick mounting technology
Three freely selectable alignments of the flat cable
Highly visible, bright LEDs for displaying operation, switching status and errors
High protection class to meet the requirements of harsh industrial ambient
Durable M12 connectors for connecting sensors and actuators

Technical specifications

Actuator supply for outputs: AUX
Number of digital outputs: 4
Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4; number of digital outputs: 4
Display: Operation: LED, green; error: LED, red; function: LED, yellow
Galvanically decoupled Digital output: Yes
Ambient temperature-1 [°C]: -25...70
Application: Field mounting
AS-i Addressing: Addressing socket
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: A.7
As-i Master profile M4
AS-i profile S-7.A.7
AS-i Version 3.0
Design: Only for operation with AS-i master profile M4
Switching PNP
Operating voltage [V]: 26.5...31.6 DC; ("supply class 2" according to cULus)
Input connection digital inputs: PNP
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Extended addressing mode: Yes
Weight [g]: 273,800
Ready-to-assemble connection / terminals: Quick-assembly technology for AS-i flat cable: ; Orientation possible in three directions
Short-circuit-proof: Yes
Short-circuit resistance of digital inputs: Yes
Max. Current consumption from AS-i [mA]: 250
max. Current carrying capacity Total inputs [mA]: 200
Module connection: Flat cable
AS-i flat cable can be directly connected
MTTF: 155
Switching level HIGH [V]: > 11
IP 67 protection
Sensor supply of inputs: AS-i
Voltage range DC [V]: 15...30; (according to PEL; via flat cable)
Power supply [V]: 18...30; (via flat cable)
Plug connection: Inputs - Pin layout: Zero - Plug connection: M12 / Outputs - Pin layout: Zero - Plug connection: M12
Current carrying capacity total [A]: 2
Current carrying capacity per output [mA]: 1000; (usage category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Watchdog integrated: Yes
