Buy ifm Electronic AC5271 Pneumatics module

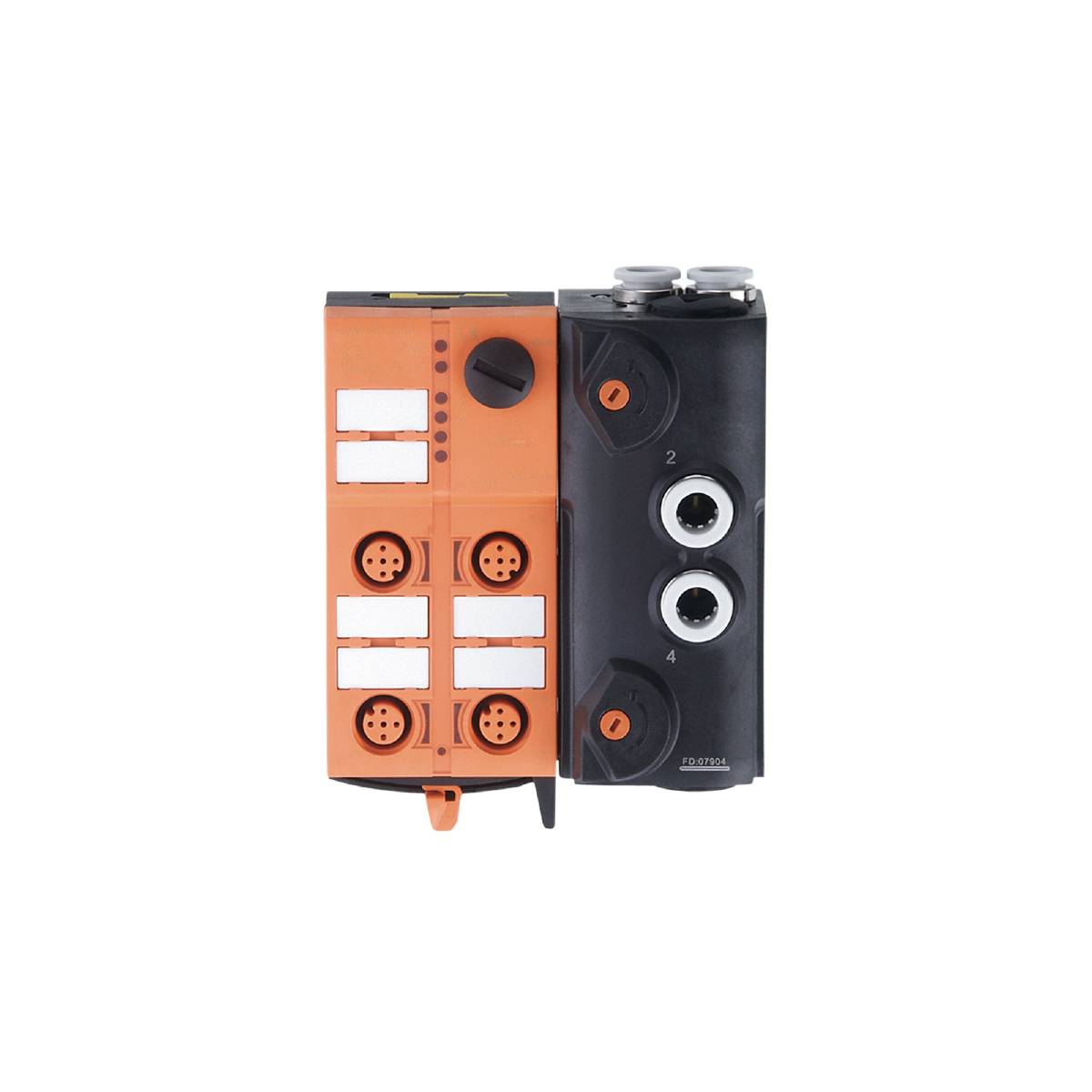

An orange and black electrical device with multiple ports and controls on a black background.

Image similar

Product type

Pneumatics module

Manufacturer part #

AC5271

Content

1 pc(s)

UKCA

yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm AC5271 AS-i pneumatic module

For the decentralized control of cylinders and swivel drives
Combination of AS-i I/O module and solenoid valve
High energy efficiency through use close to the actuator
Reduced installation and wiring effort
Easy installation and wiring without any tools thanks to quick mounting technology

Technical specifications

Exhaust air duct: Exhaust air can be discharged through hose connection
Actuator supply for outputs: AUX
Number of digital inputs: 4
Number of inputs and outputs: Number of digital inputs: 4; number of pneumatic outputs: 2
Number of pneumatic outputs: 2; (supply: External 24 V voltage feed)
Display: Operation: LED, green; error: LED, red; function: LED, yellow
Ambient temperature-1 [°C]: -10...55
Application: Field mounting
Operating pressure range [bar]: 3...8
Operating pressure range [MPa]: 0.3...0.8
Operating pressure range [psi]: 43.5...116
AS-i Addressing: Addressing socket
AS-i I/O Configuration [HEX]: 7
AS-i ID code [HEX]: A.E
As-i Master profile M2; M3; M4
AS-i profile S-7.A.E
AS-i version 2.11; 3.0
Operating voltage [V]: 26.5... 31.6 DC
Compressed air consistency: Non-oiled compressed air class 6-3-1; oiled compressed air class 6-3-4
Input connection digital inputs: PNP
Input current High [mA]: 6...10
Input current Low [mA]: 0...2
Extended addressing mode: Yes
Weight [g]: 384,000
Manual operation: Momentary or momentary action - latching into movement
Ready-to-assemble connection / terminals: Quick-assembly technology for AS-i flat cable: ; Orientation possible in three directions
Short-circuit resistance of digital inputs: Yes
Air flow at 6/5 bar [l/min]: 400
Max. Current consumption from AS-i [mA]: 280
Max. Power consumption from additional power supply [mA]: 10
max. Current carrying capacity Total inputs [mA]: 200
Medium temperature [°C]: -10...50
Module connection: Flat cable
Mounting type: Rapid assembly
MTTF: 216
Pneumatic system: 1 x 5/3-way spool valve (non-overlapping); center position locked
Switching level HIGH [V]: > 11
Hose connector 8 mm
Protection class IP 65; IP 67
Sensor supply of inputs: AS-i
Power supply [V]: 20...30; (via flat cable)
Plug connection: Pin layout: Zero plug connection: M12
Watchdog integrated: Yes
Additional power supply: Required
Additional power supply [V]: 18...30 DC; (to PEL)
