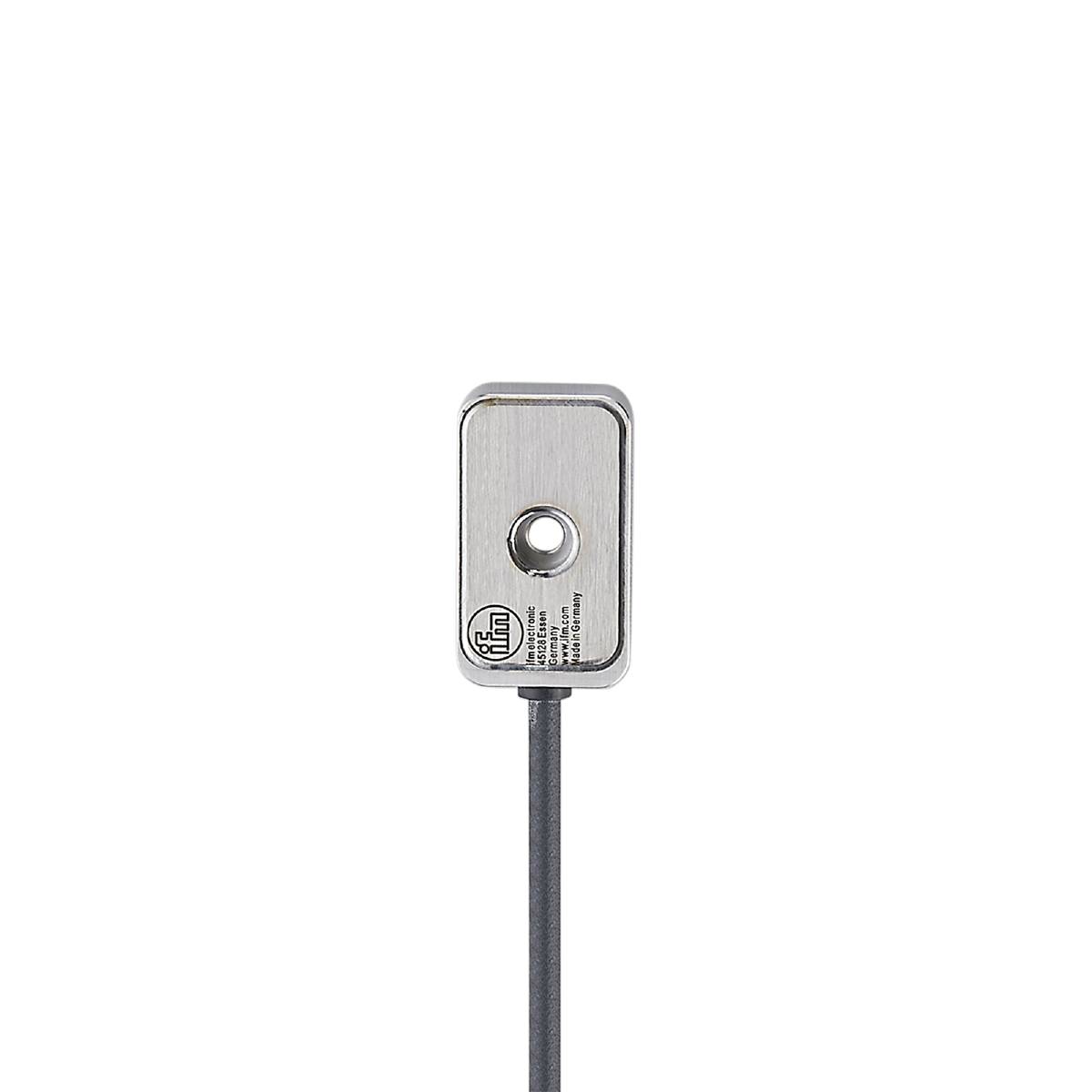

Buy ifm Electronic Acceleration sensor VSM101 VSM101 Cable, open end

Image similar

Product type

Acceleration sensor

Connector

Cable, open end

IP rating

IP67

IP68

IP69K

Type

VSM101

No. of axles

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

For reliable vibration detection in 3 measuring axes (x, y and z) on machines and systems
For connection to a diagnostic electronics for vibration sensors
High protection class to meet the requirements of harsh industrial ambient
Compact and robust stainless steel housing with high mechanical overload resistance
Universal use thanks to IEPE interface

Dimensions [mm] 26.2 x 47.3 x 11.6
Number of measuring axles: 3
Linearity deviation percentage range: 2
Diagnostics measuring principle: Capacitive
Drag-chain compatibility: Bending radius when used flexibly: Min. 10 x cable diameter; bending radius with fixed laying: Min. 4 x cable diameter
Drag chain capability available: Yes
Ambient temperature-1 [°C]: -30...85
Tightening torque [Nm]: 3.5
Special feature: Shielded cable; suitable for drag chains
Operating current [mA]: 4...6
Bias voltage DC [V]: 11...16
Frequency range [Hz]: 0...4500
Accuracy: 0...3 kHz: +/- 10 % 3...4.5 kHz: 3 dB
Weight [g]: 187,200
Cable: 3 m, PUR, Ø 4.9 mm, shielded, Max. Cable length: 250 m; shield (mounted on the housing); 5 x 0.14 mm²
Storage temperature [°C]: -30...100
Max. Cross sensitivity [%]: 5
Measuring range vibration [g]: -40...40
Measuring sensitivity 100 mV/g
Min INSULATION RESISTANCE [MΩ]: 100; (500 V DC)
Mounting type: Mounting screw
MTTF: 529
PROTECTION CLASS IP 67; IP 68; IP 69K
Protection class III
Sensor type: Micro-electromechanical system (MEMS)
Polarity reversal protected: Yes
