Buy ifm Electronic Acceleration sensor VSM103 VSM103 Cable, open end

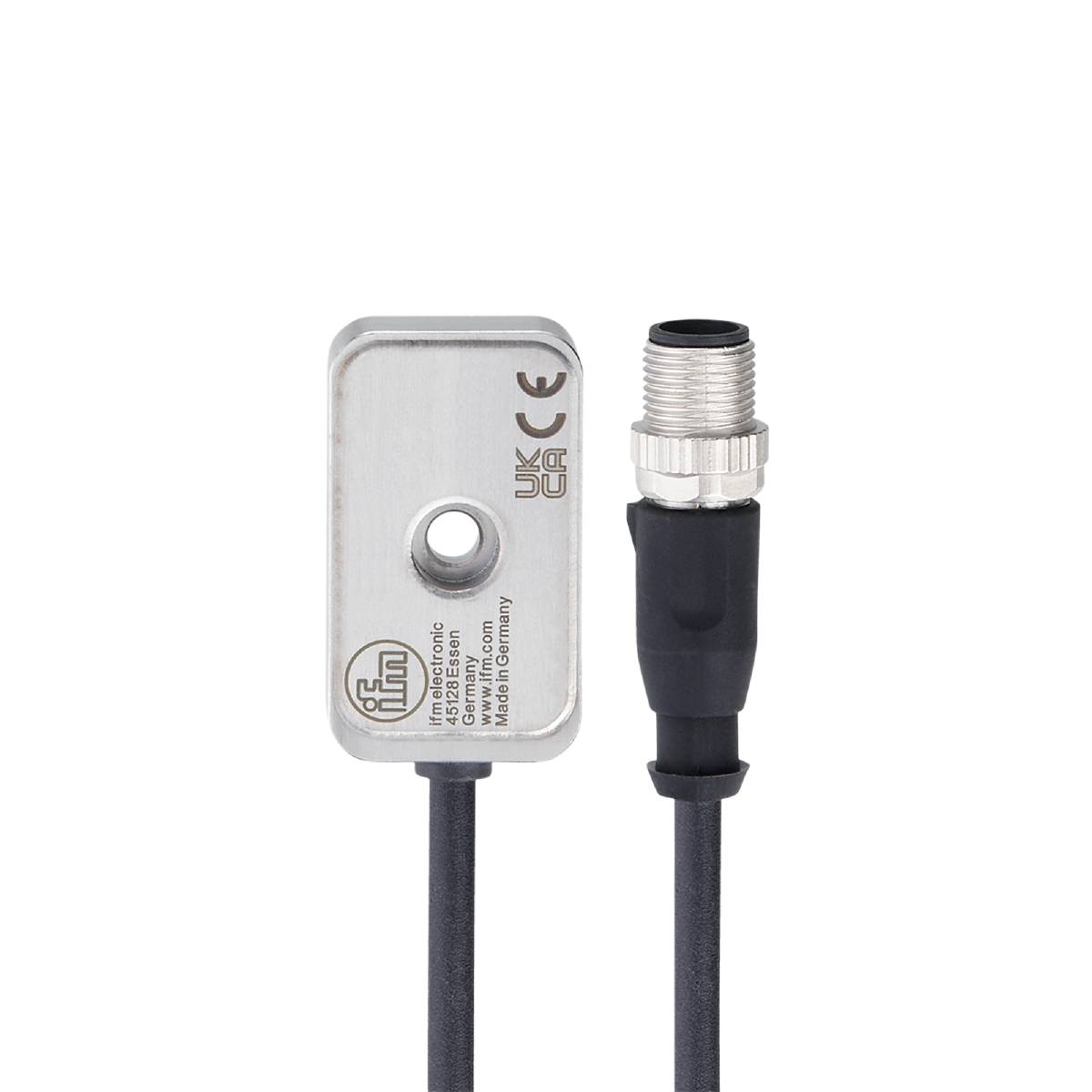

Image similar

Product type

Acceleration sensor

Connector

Cable, open end

IP rating

IP67

IP68

IP69K

Type

VSM103

Operating current

6 mA

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

For the reliable detection of vibrations at machines and systems
For connection to a diagnostic electronics for vibration sensors
High protection class to meet the requirements of harsh industrial ambient
Compact and robust stainless steel housing with high mechanical overload resistance

Dimensions [mm] 26.2 x 47.3 x 11.6
Number of measuring axles: 3
Linearity deviation percentage range: 2
Diagnostics measuring principle: Capacitive
Drag-chain compatibility: Bending radius when used flexibly: Min. 10 x cable diameter; bending radius with fixed laying: Min. 4 x cable diameter
Drag chain capability available: Yes
Ambient temperature-1 [°C]: -30...85
Tightening torque [Nm]: 3.5
Special feature: Shielded cable; suitable for drag chains
Operating current [mA]: 4...6
Bias voltage DC [V]: 11...16
Frequency range [Hz]: 0...4500
Accuracy: 0...3 kHz: +/- 10 % 3...4.5 kHz: 3 dB
Weight [g]: 105,600
Cable: 0.3 m, PUR, Ø 4.9 mm, shielded, Max. Cable length: 250 m; shield (mounted on the housing); 5 x 0.14 mm²
Storage temperature [°C]: -30...100
Max. Cross sensitivity [%]: 5
Measuring range vibration [g]: -40...40
Measuring sensitivity 100 mV/g
Min INSULATION RESISTANCE [MΩ]: 100; (500 V DC)
Mounting type: Mounting screw
MTTF: 529
PROTECTION CLASS IP 67; IP 68; IP 69K
Protection class III
Sensor type: Micro-electromechanical system (MEMS)
Polarity reversal protected: Yes
